From VIN # 350001

Front Seat Belt:

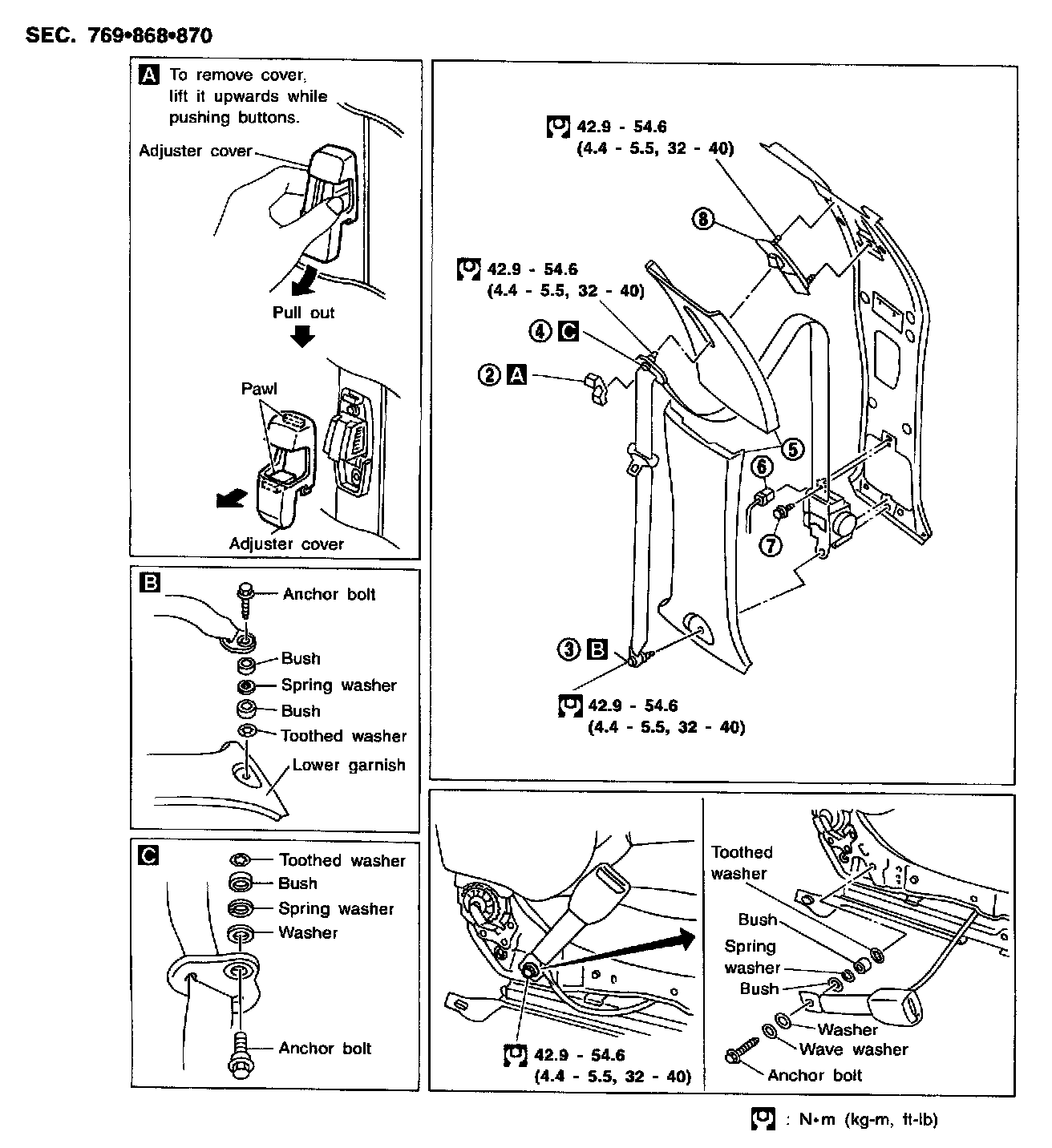

REMOVAL AND INSTALLATION

1. Slide the seat all the way forward and tilt the seatback toward the front.
2. Remove adjuster cover. A
3. Remove floor anchor bolt. B
4. Remove shoulder anchor bolt. C

5. Remove center pillar upper and lower garnish.

6. Disconnect seat belt pre-tensioner connector.
7. Remove bolt securing seat belt retractor, then remove seat belt and seat belt retractor.
8. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

Reverse procedure to install.
