Collision Diagnosis

To repair the SRS, perform the following steps.

When SRS Is Activated In A Collision
1. Replace the diagnosis sensor unit.
2. Remove the air bag modules.

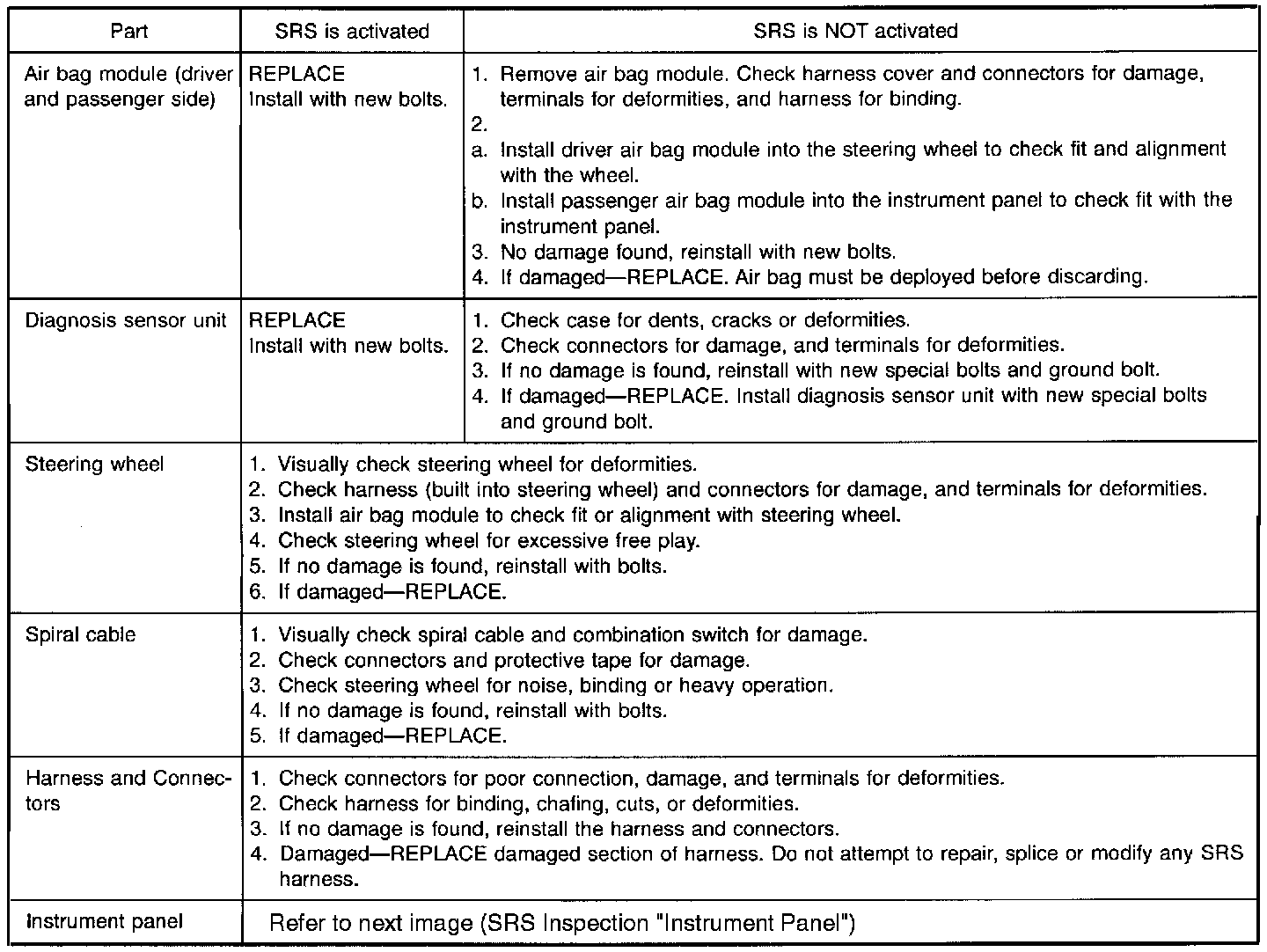

Collision Diagnosis (Part 1 Of 2):

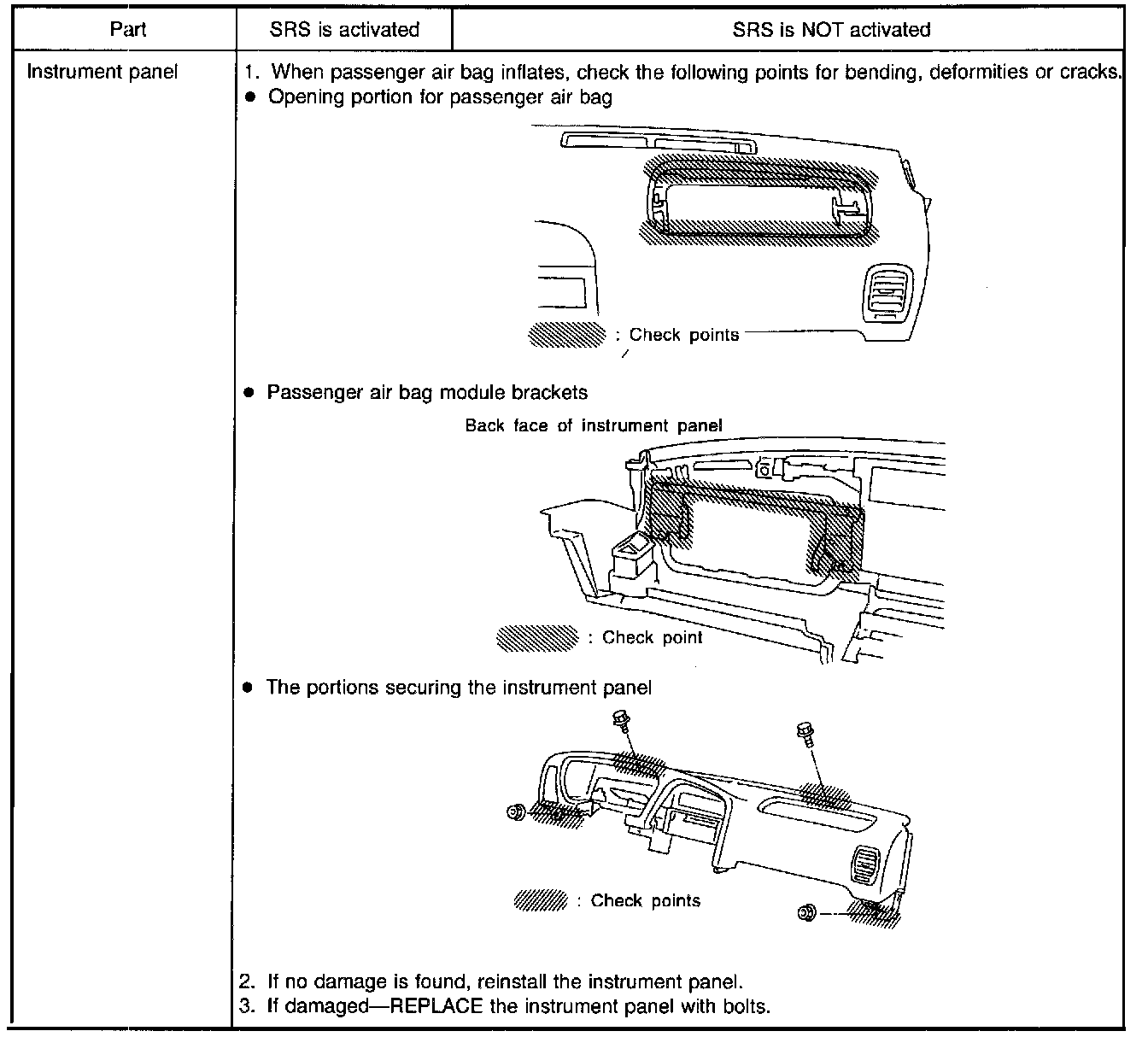

Collision Diagnosis (Part 2 Of 2):

SRS Inspection

3. Check the SRS components using the table(s).
Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
4. Install new air bag modules.
5. Conduct self-diagnosis using CONSULT or "AIR BAG" warning lamp. Refer to "SRS Operation Check" for details.Procedure 1 Checking SRS Operation Using "AIR BAG" Warning Lamp Ensure entire SRS operates properly.

When SRS Is Not Activated In A Collision
1. Check the SRS components. Refer to "SRS inspection".
Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
2. Conduct self-diagnosis using CONSULT and "AIR BAG" warning lamp. Refer to "SRS Operation Check", Ensure entire SRS operates properly.
