Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Procedures
>>
To VIN 350000
>>

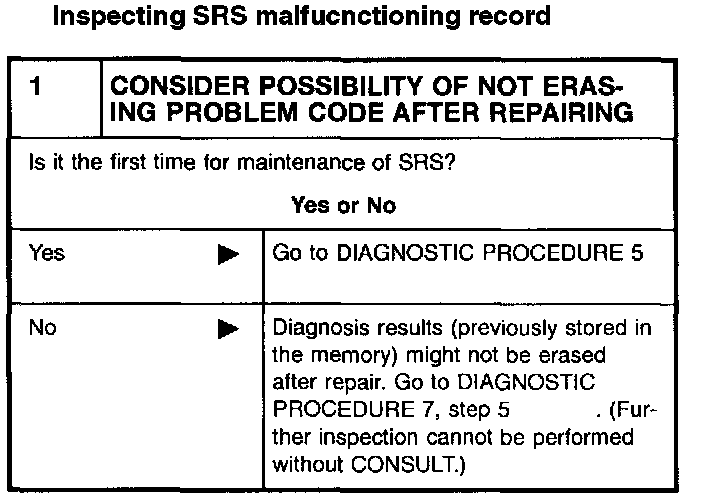

Procedure 8 Inspecting SRS Malfunctioning Record
Procedure 8 Inspecting SRS Malfunctioning Record
Diagnostic Procedure 8 (Continued From Diagnostic Procedure 6):
