Procedure 5 Inspecting SRS Intermittent Problem Using Scan Tool
Inspecting SRS Intermittent Problem By Using CONSULT - Diagnosis Mode1. Turn ignition switch "OFF".

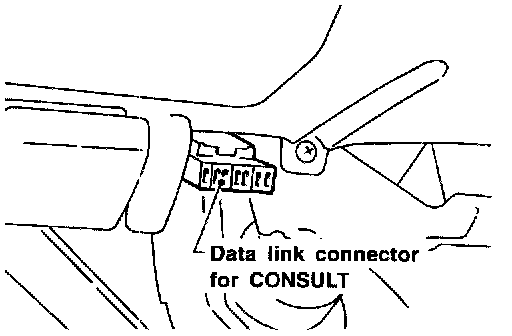

Data Link Connector:
2. Connect "CONSULT" to Data link connector.
3. Turn ignition switch "ON".
Diagnostic Procedure 5:

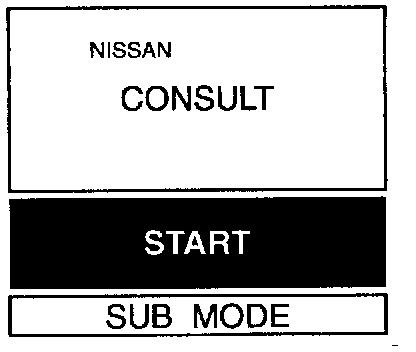

4. Touch "START".
Diagnostic Procedure 5:

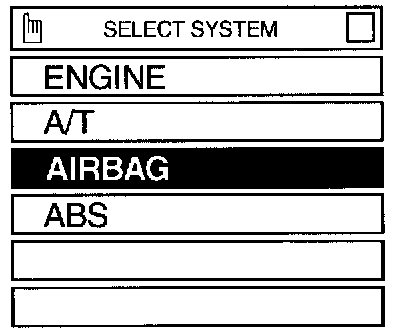

5. Touch "AIRBAG".
Diagnostic Procedure 5:

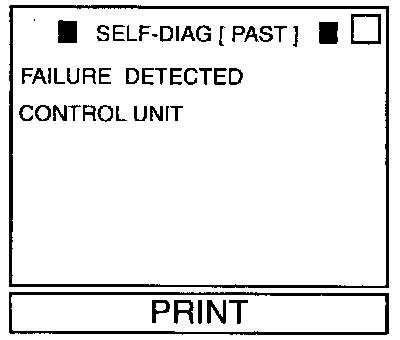

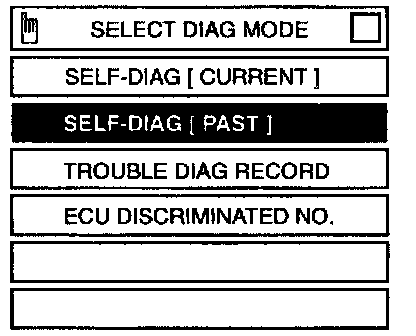

6. Touch "SELF-DIAG [PAST]".
Diagnostic Procedure 5:
7. It diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10.
Diagnostic Procedure 5:
If no self-diagnostic failure is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".
Diagnostic Procedure 5:

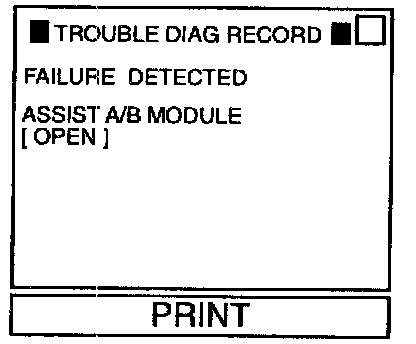

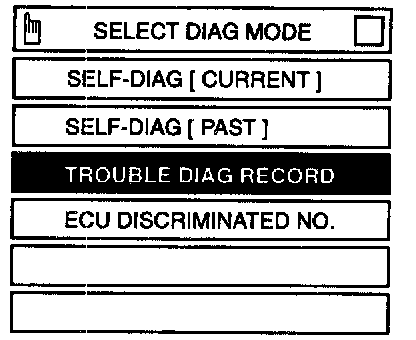

8. Touch "TROUBLE DIAG RECORD".
NOTE: With "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.
Diagnostic Procedure 5:
9. Diagnostic code is displayed on "TROUBLE DIAG RECORD".
10. Touch "PRINT".
11. Compare diagnostic codes to "Intermittent Problem Diagnostic Code Chart".
12. Touch "BACK" key of CONSULT until "SELECT SYSTEM" appears, then turn off CONSULT
13. Turn ignition switch "OFF", then disconnect CONSULT and both battery cables.
14. Repair the system as outlined by the "Repair order" in "Intermittent Problem Diagnostic Code Chart", that corresponds to the problem code. For replacement procedure of component parts.
15. Go to DIAGNOSTIC PROCEDURE 3, Procedure 3 Final Checking After Repairing SRS Using Scan Toolfor final checking.

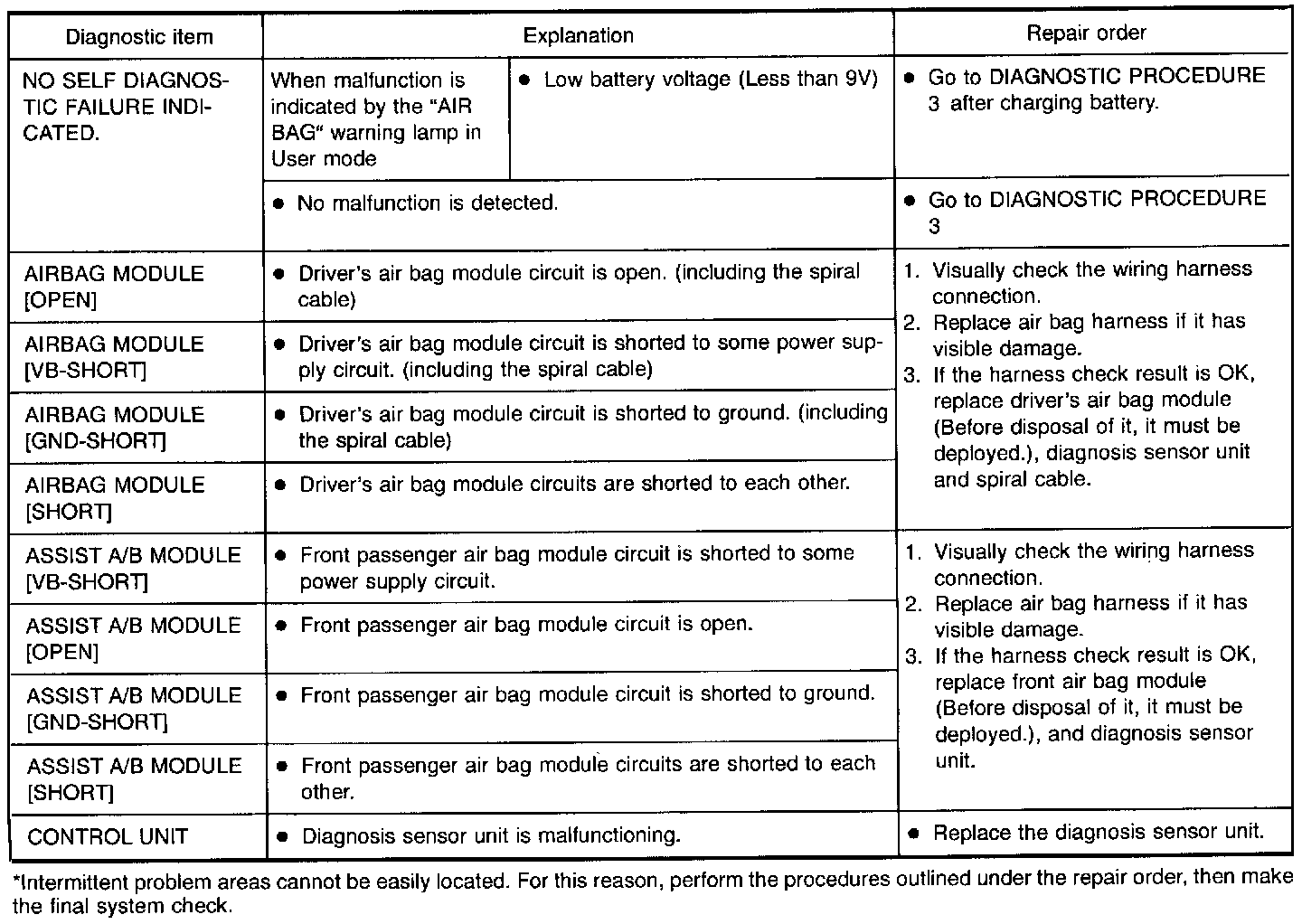

Intermittent Problem Diagnostic Code Chart:
Intermittent Problem Diagnostic Code Chart (SELF-DIAG [PAST] Or TROUBLE DIAG RECORD)
