Procedure 2 Inspecting SRS Malfunctioning Parts Using CONSULT
Inspecting SRS Malfunctioning Parts By Using CONSULT - Diagnosis Mode1. Turn ignition switch "OFF".

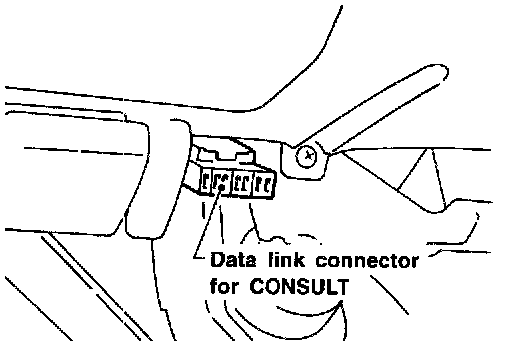

Data Link Connector:
2. Connect CONSULT to Data link connector.
3. Turn ignition switch "ON".
Diagnostic Procedure 2:

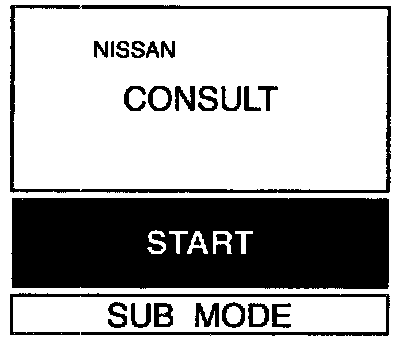

4. Touch "START".
Diagnostic Procedure 2:

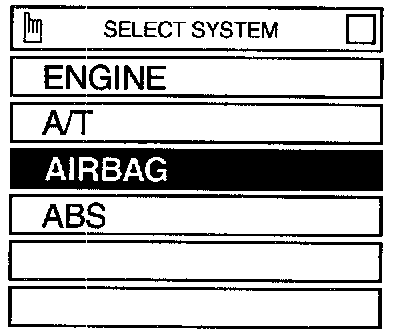

5. Touch "AIRBAG".
Diagnostic Procedure 2:

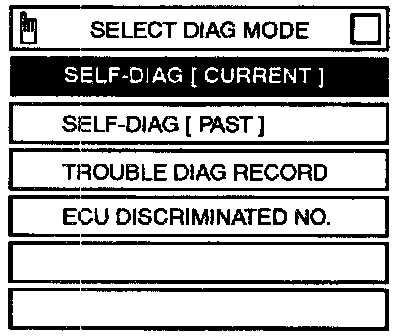

6. Touch "SELF-DIAG [CURRENT]".
Diagnostic Procedure 2:

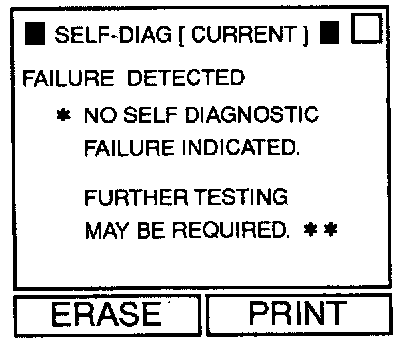

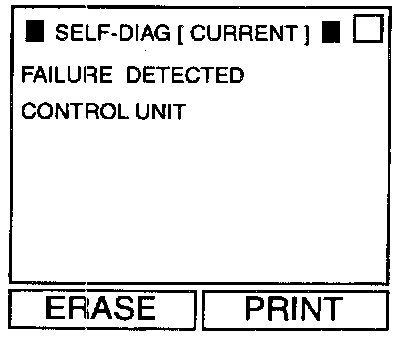

7. Diagnostic codes are displayed on "SELF-DIAG [CURRENT]".
Diagnostic Procedure 2:
If no self-diagnostic failure is detected on "SELF-DIAG-CURRENT]" even though malfunction is detected in "SRS Operation Check", check the battery voltage. If the battery voltage is less than 9 V, charge the battery. Then go to DIAGNOSTIC PROCEDURE 3. If the battery voltage is OK, go to DIAGNOSTIC PROCEDURE 4, to diagnose the following cases:
- "SELF-DIAG [PAST]" (which was previously entered) is still retained in memory.
- The SRS system is malfunctioning intermittently.
8. Touch "PRINT".
9. Compare diagnostic codes to the CONSULT DIAGNOSTIC CODE CHART.
10. Touch "BACK' key of CONSULT until "SELECT SYSTEM MODE" appears in order to return to User mode from Diagnosis mode, then turn off CONSULT.
11. Turn ignition switch OFF, then disconnect CONSULT and both battery cables.

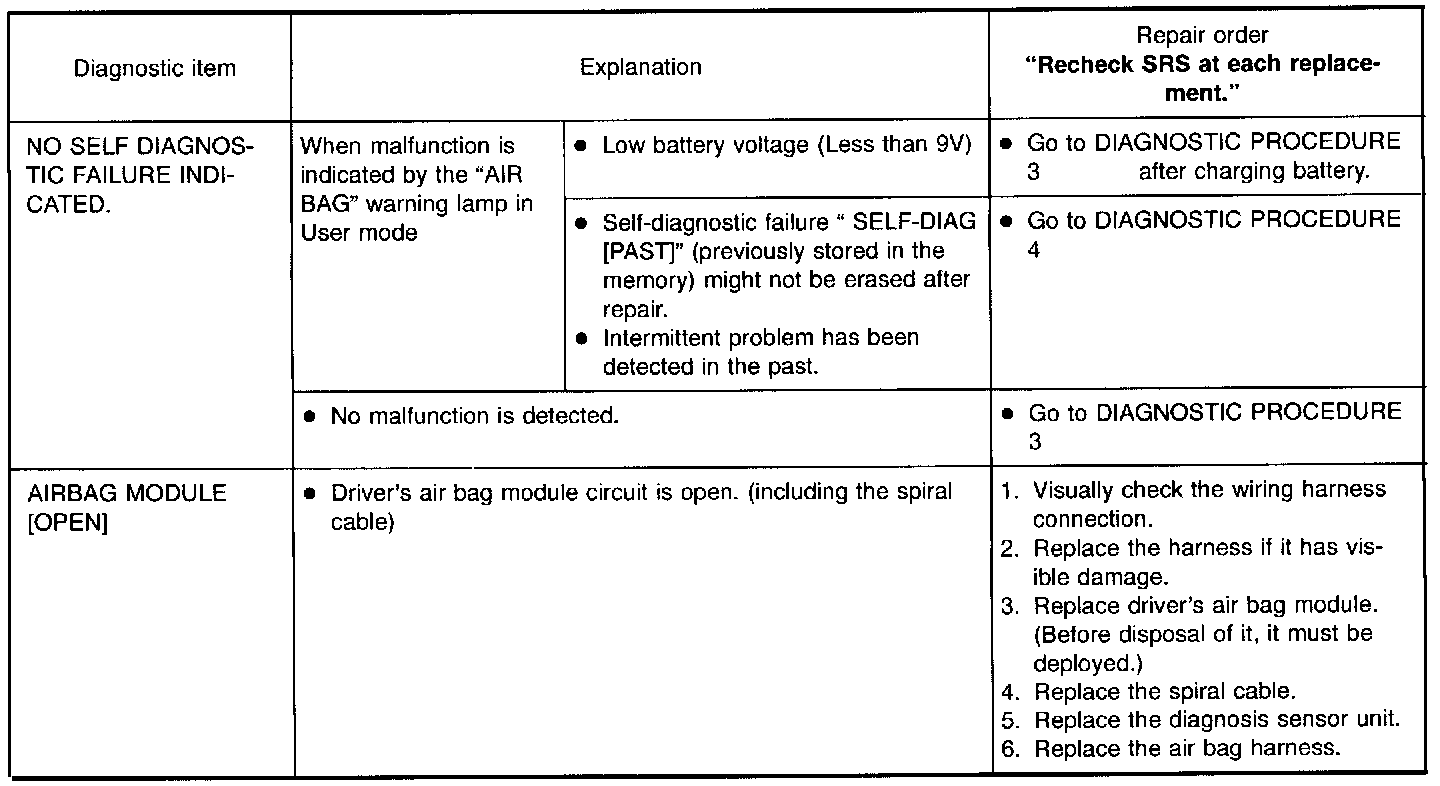

CONSULT DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") {1 Of 2}:

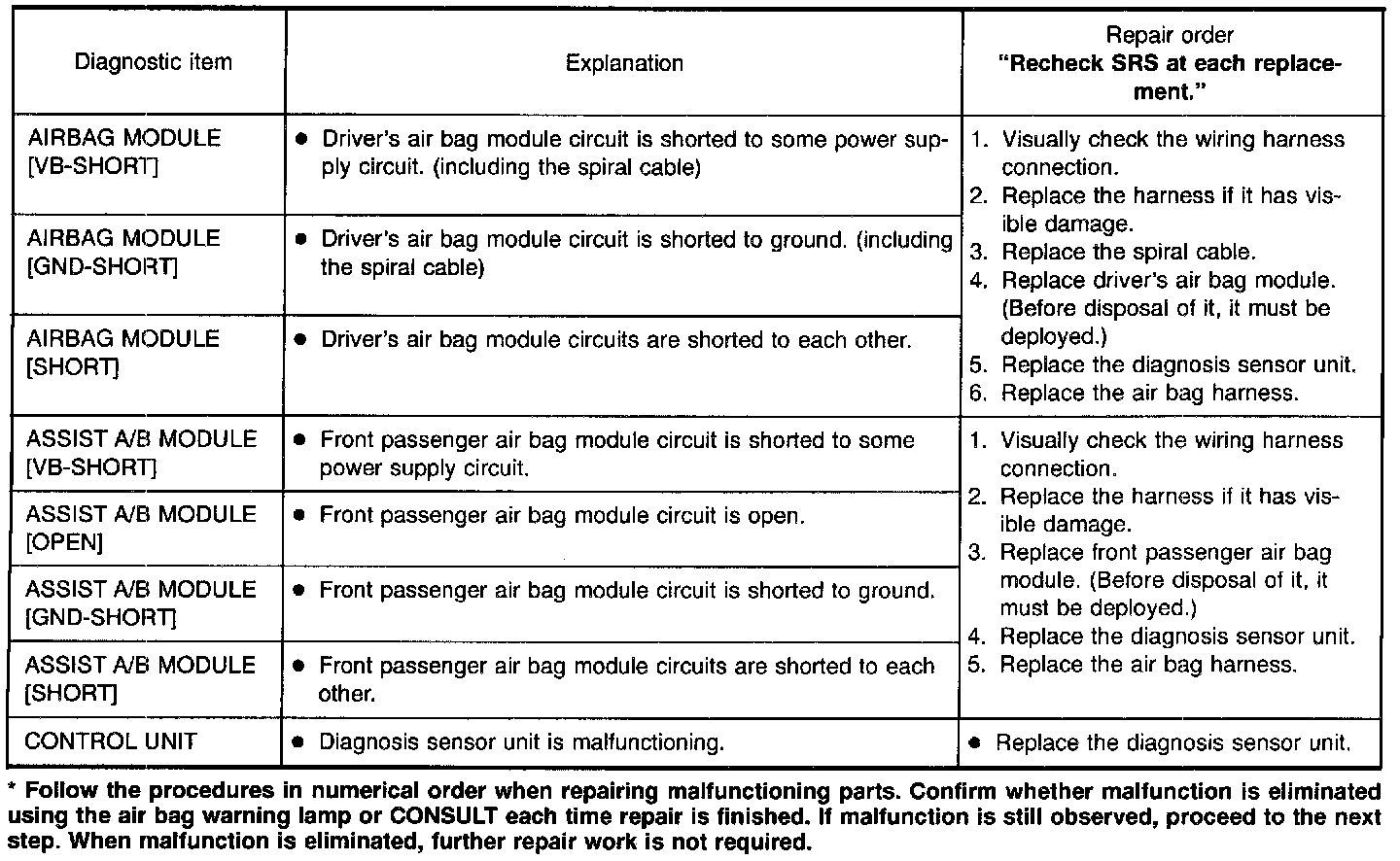

CONSULT DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") {2 Of 2}:
12. Repair the system as outlined by the Repair order in CONSULT DIAGNOSTIC CODE CHART, that corresponds to the problem code. For replacement procedure of component parts.
13. After repairing the system, connect battery cables and go to DIAGNOSTIC PROCEDURE 3 for final checking.
