Procedure 1 Checking SRS Operation Using "AIR BAG" Warning Lamp

Checking SRS Operation By Using "AIR BAG" Warning Lamp - User Mode

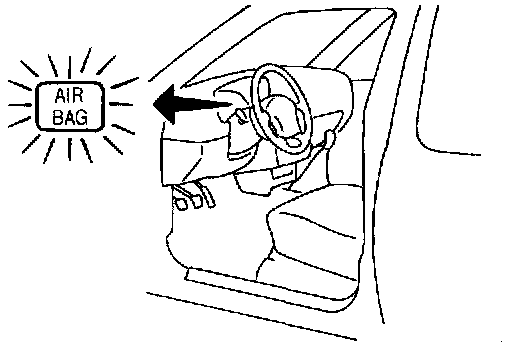

Air Bag Warning Lamp:

1. After turning ignition switch from OFF to ON, "AIR BAG" warning lamp operates.

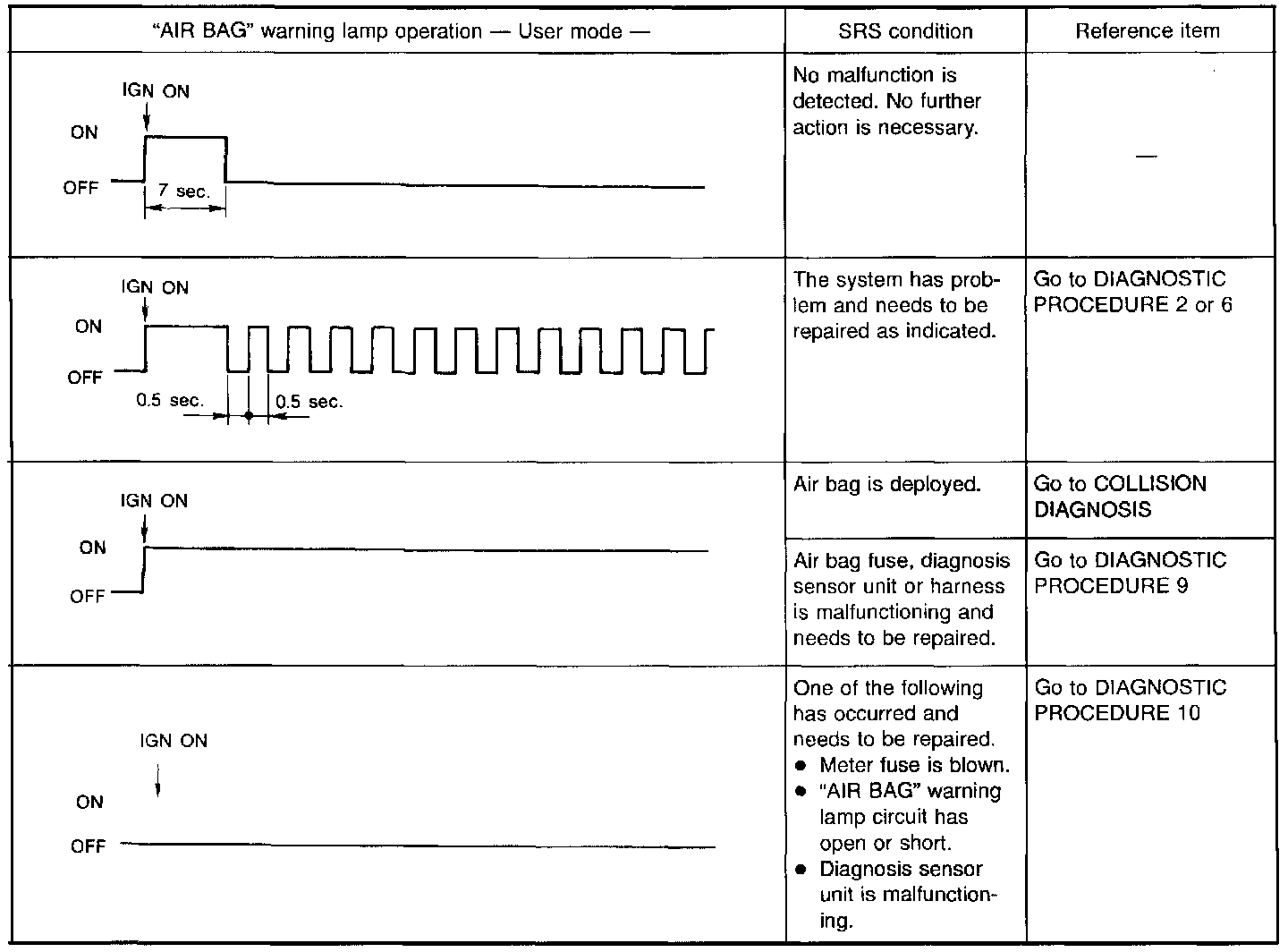

2. Compare "AIR BAG" warning lamp operation to the chart above.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown above, refer to "AIR BAG" warning lamp operation - DIAGNOSTIC PROCEDURE 6, Procedure 6 Inspect SRS Malfunctioning Parts Using Warning Lampstep 4.
