Procedure 1 Checking Air Bag Operation By Using Warning Lamp

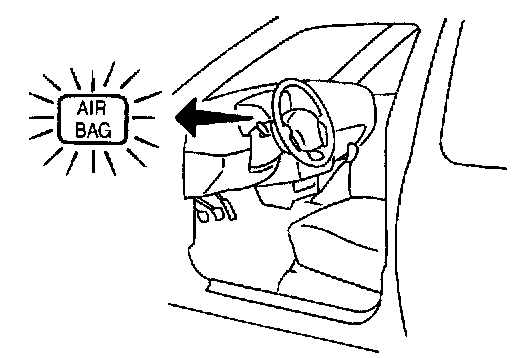

Checking Air Bag Operation by using "AIR BAG" Warning Lamp - User Mode




1. After turning ignition switch from "OFF" to "ON", "AIR BAG" warning lamp operates.

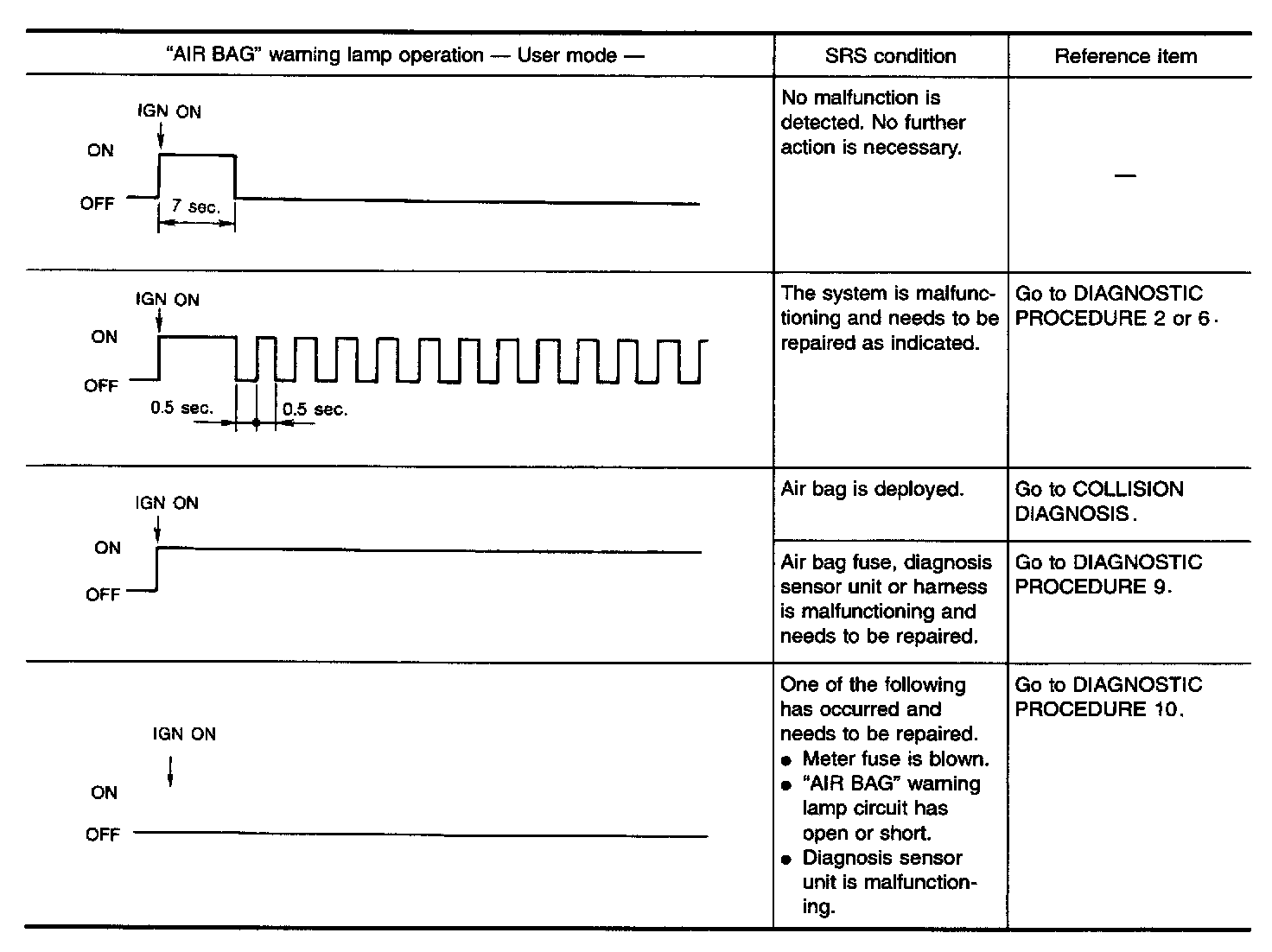

2. Compare "AIR BAG" warning lamp operation to the chart.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown above, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 6 Procedure 6 Inspecting Malfunctioning Parts Using Warning Lamp (step 4).

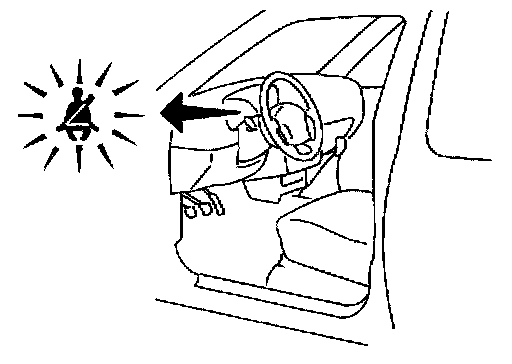

Checking Seat Belt Pre-tensioner Operation by Using "SEAT BELT" Warning Lamp - User Mode




1. After turning ignition switch from "OFF" to "ON", "SEAT BELT" warning lamp operates.




2. Compare "SEAT BELT" warning lamp operation to the chart.
