Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> To VIN # 350000

To VIN # 350000

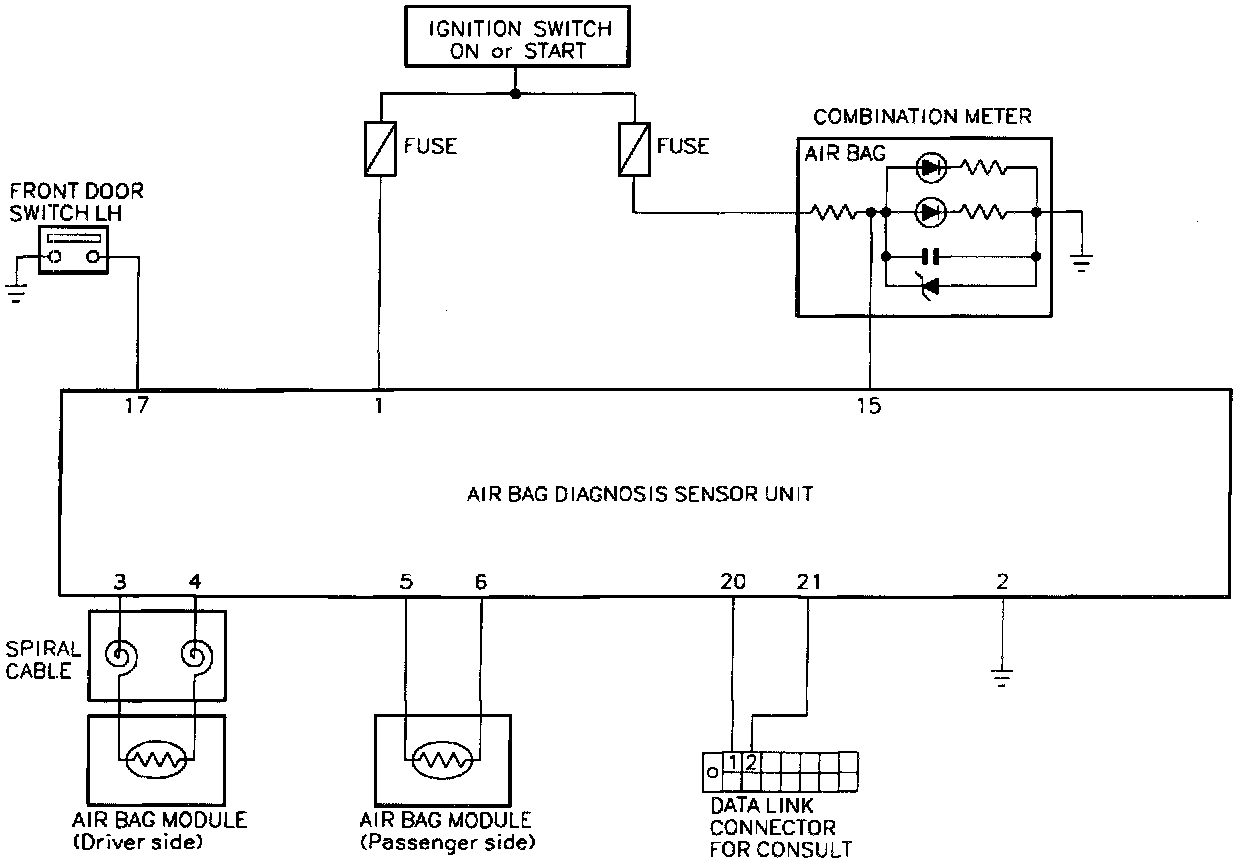

Supplemental Restraint System Schematic:

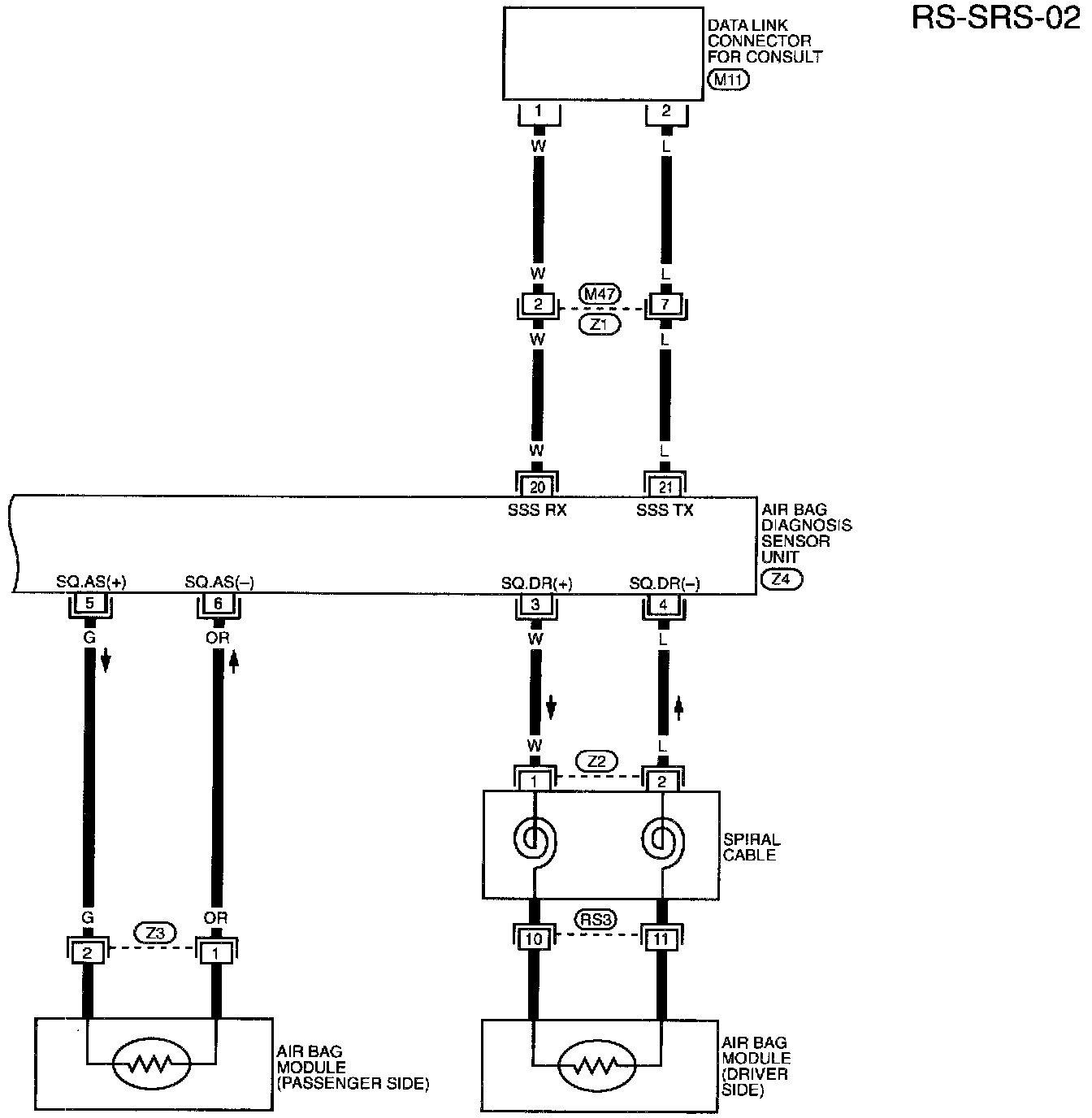

Schematic

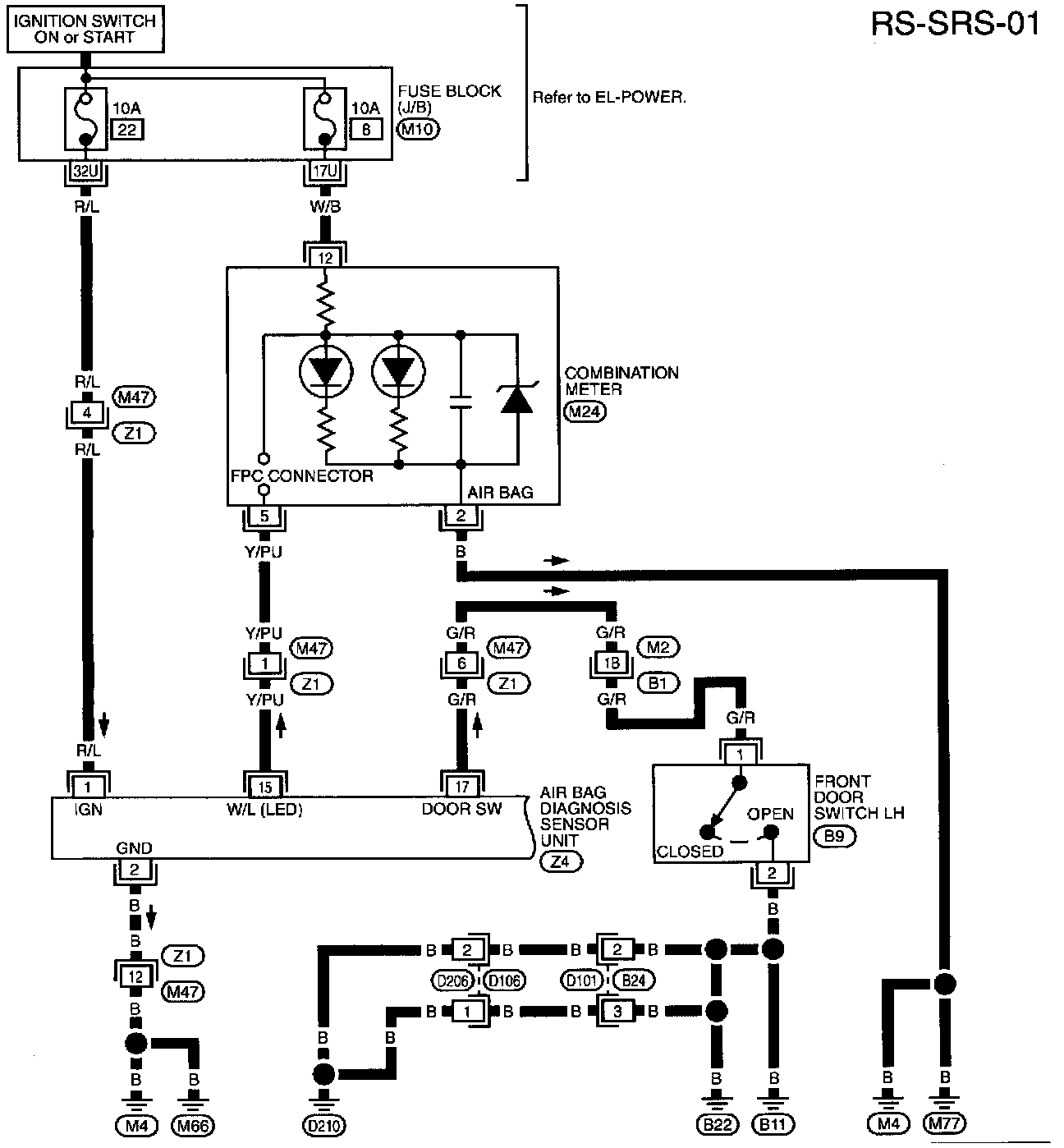

Circuit Diagram

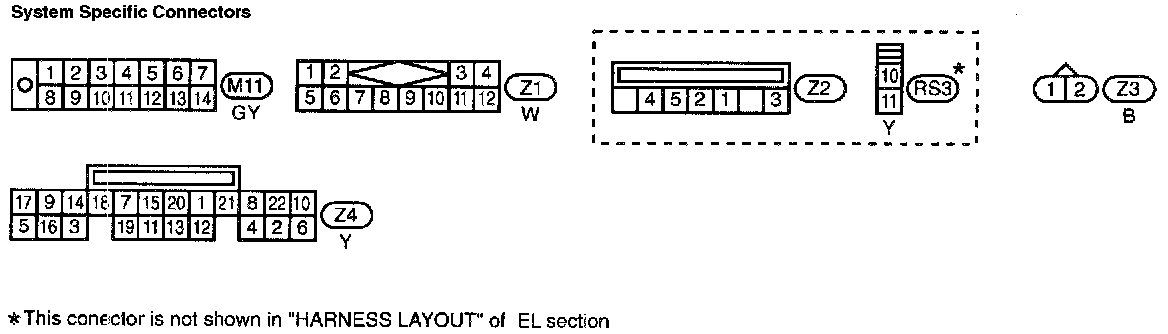

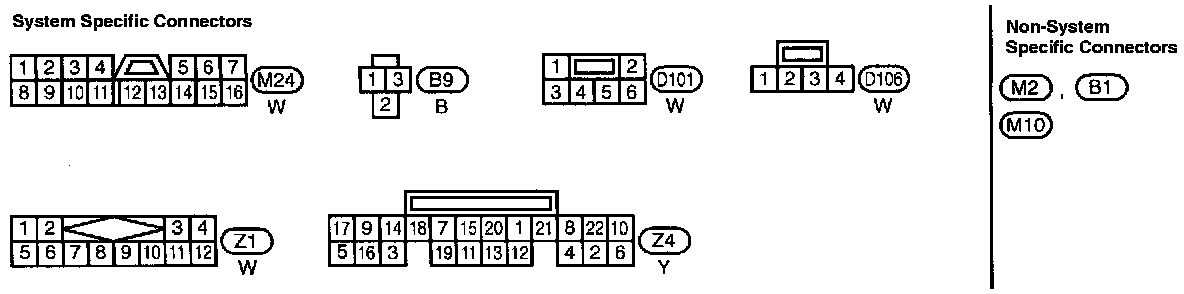

Connectors
