BATT/FLUID TEMP

DESCRIPTION

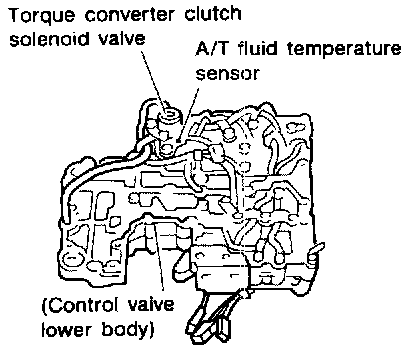

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the A/T control unit.

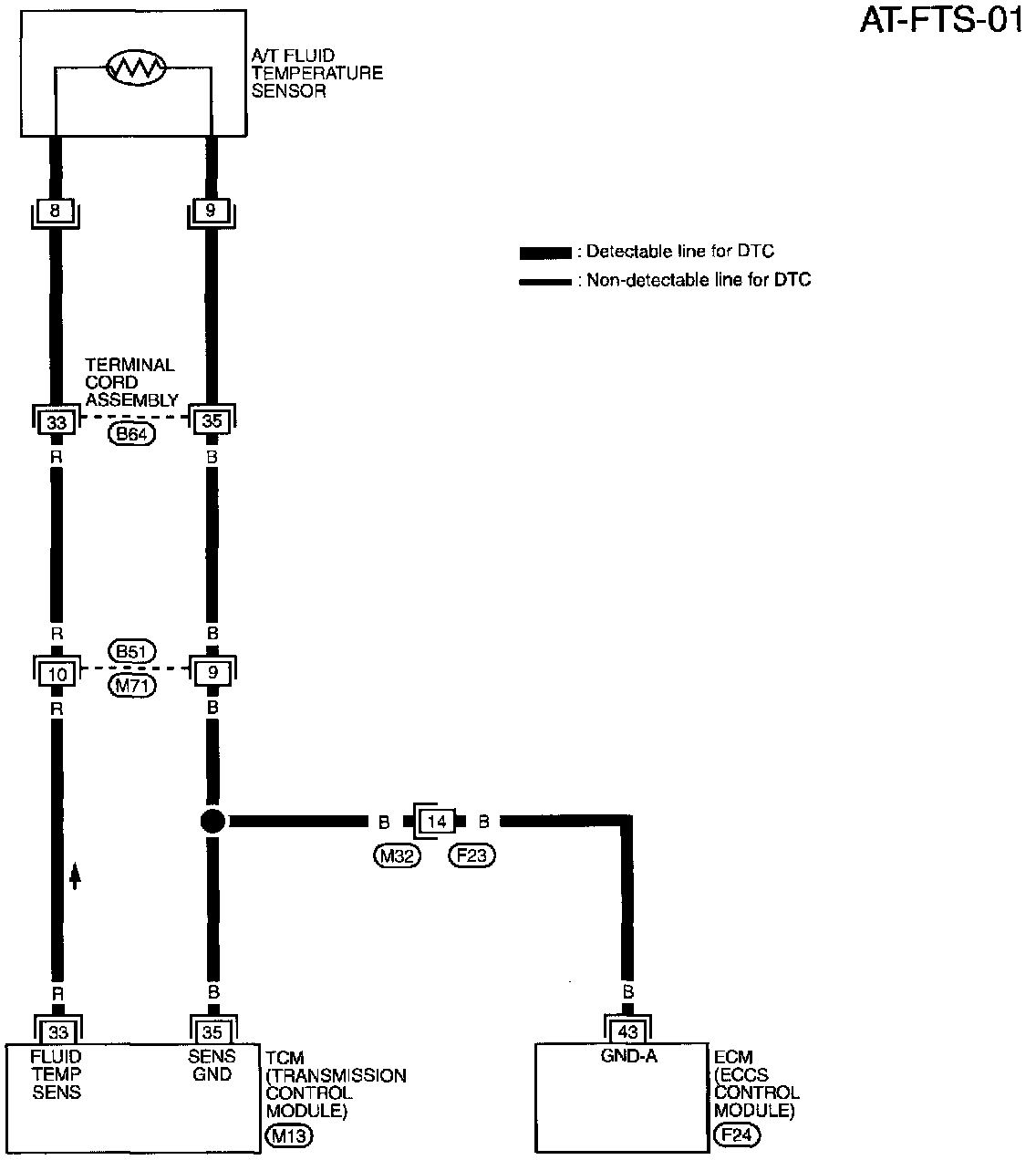

Wiring Diagram

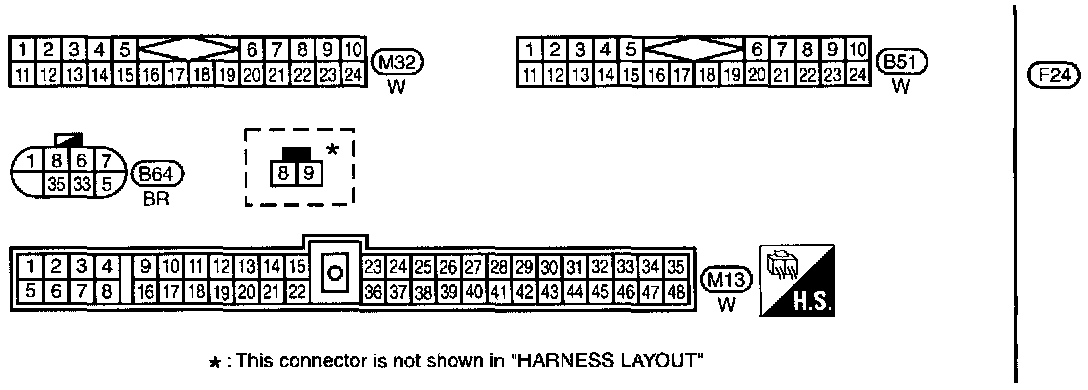

Connectors

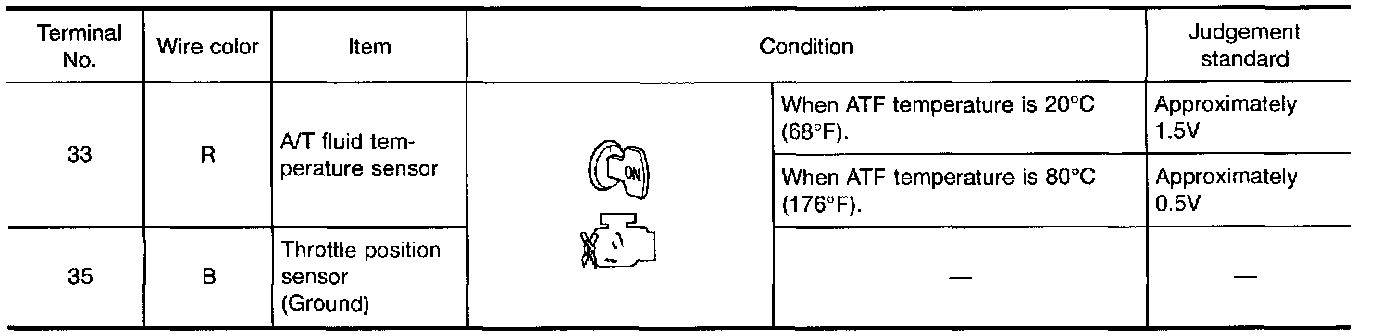

TCM Terminals

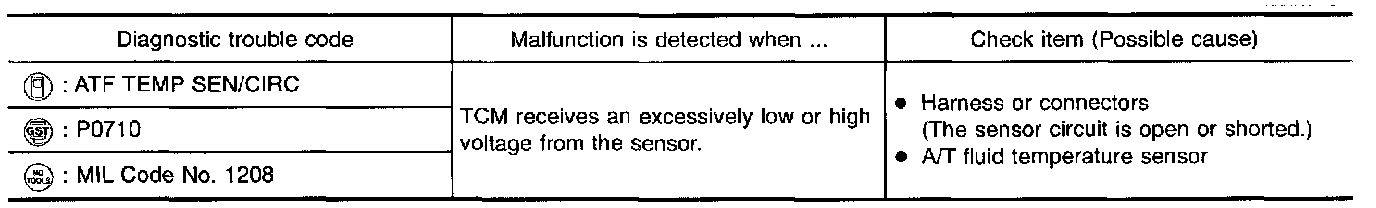

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT

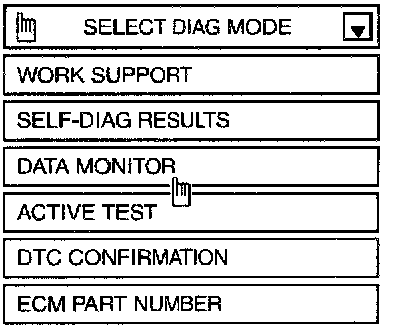

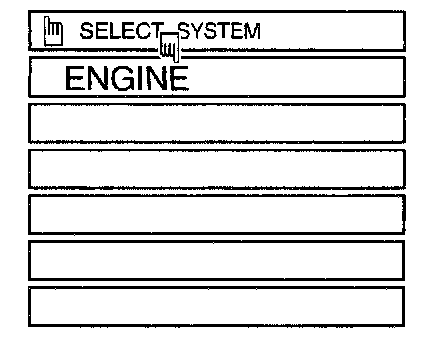

1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT.
2. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)
CMPS.RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2 V
Selector lever: D position (OD "ON")

With GST
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in "D" (OD "ON") position, vehicle speed higher than 10 km/h (6 MPH), throttle opening greater then 1/8 of the full open position, engine speed higher than 450 rpm and driving for more than 10 minutes (Total).
3. Select "MODE 7" with GST.

No Tools
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in "D" (OD "ON") position, vehicle speed higher than 10 km/h (6 MPH), throttle opening greater than 1/8 of the full open position, engine speed higher than 450 rpm and driving for more than 10 minutes (Total).
3. Perform self-diagnosis for ECM.
Refer to Powertrain Management; Computers and Control Systems.

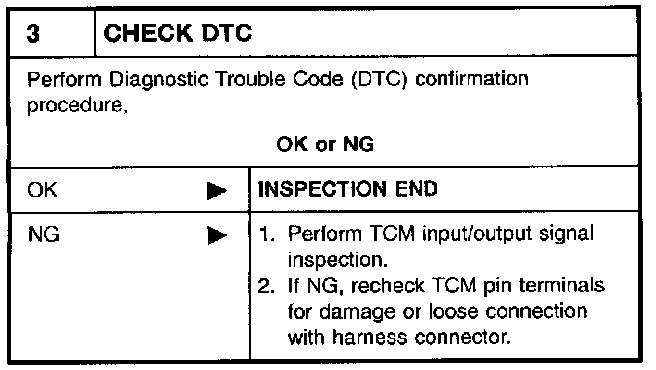

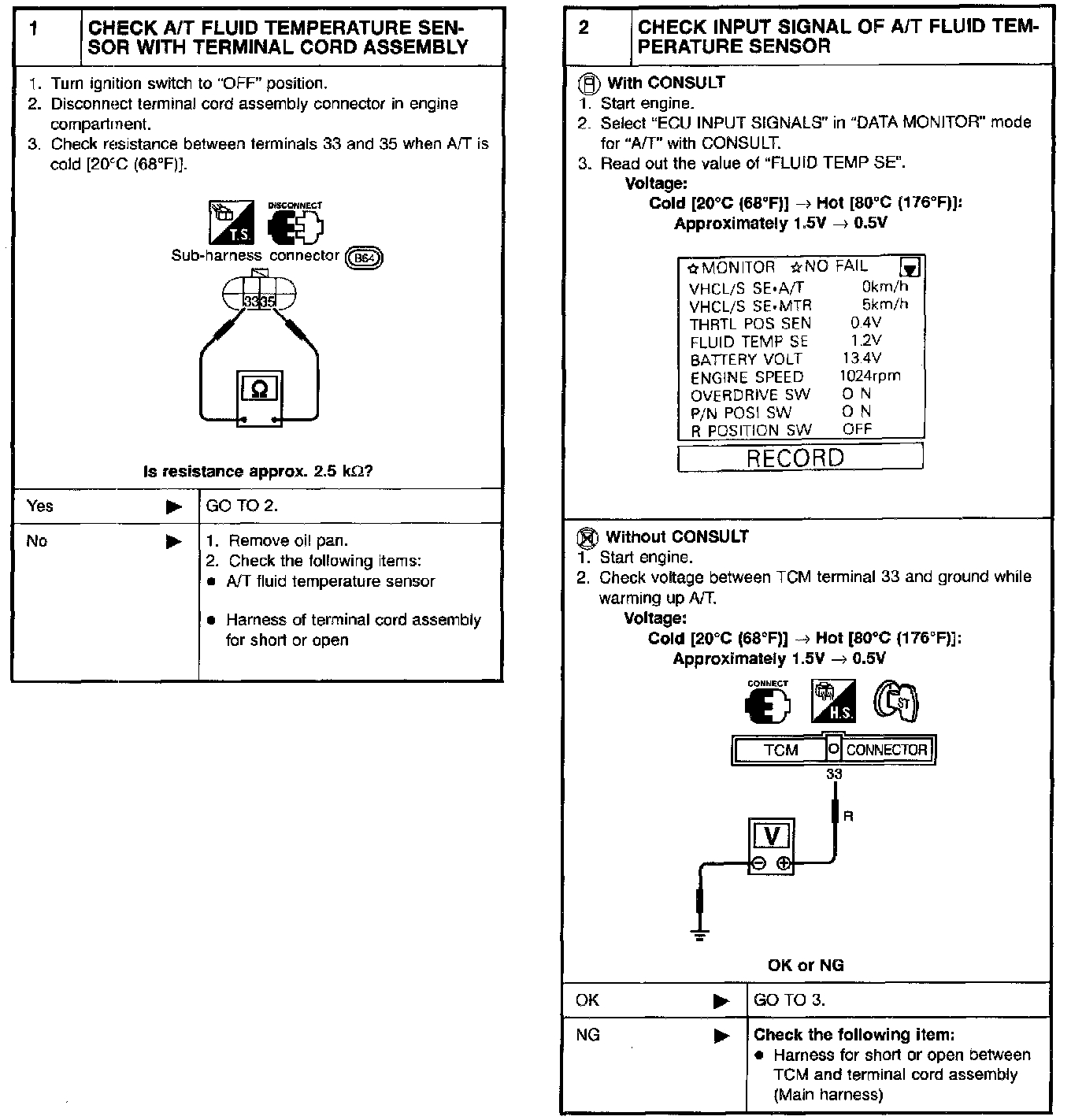

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

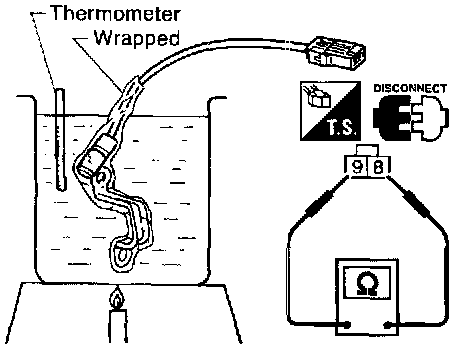

- Check resistance between two terminals while changing temperature as shown.

Temperature °C (°F) / Resistance
20 (68) / Approximately 2.5 K Ohms
80 (176) / Approximately 0.3 K Ohms
