With CONSULT

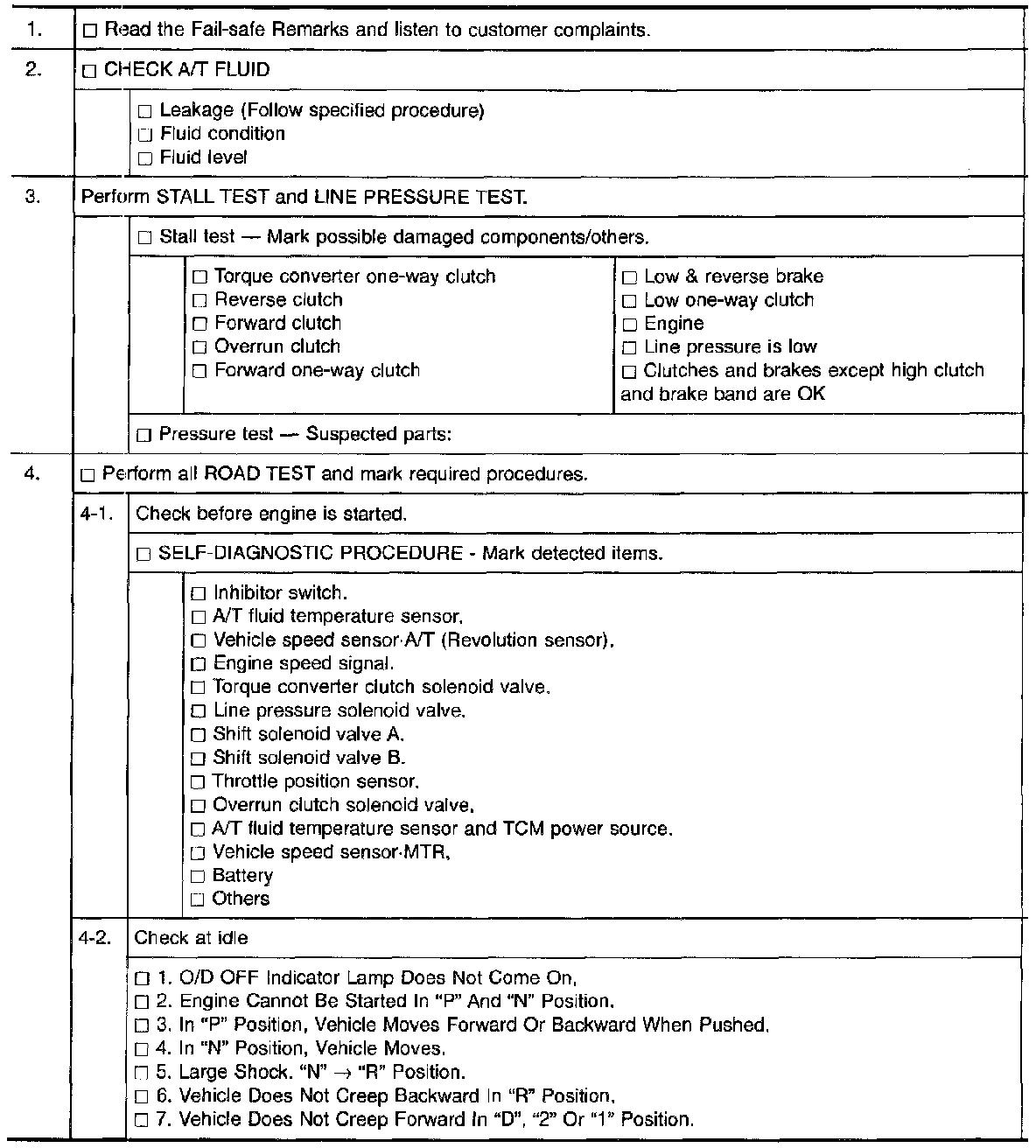

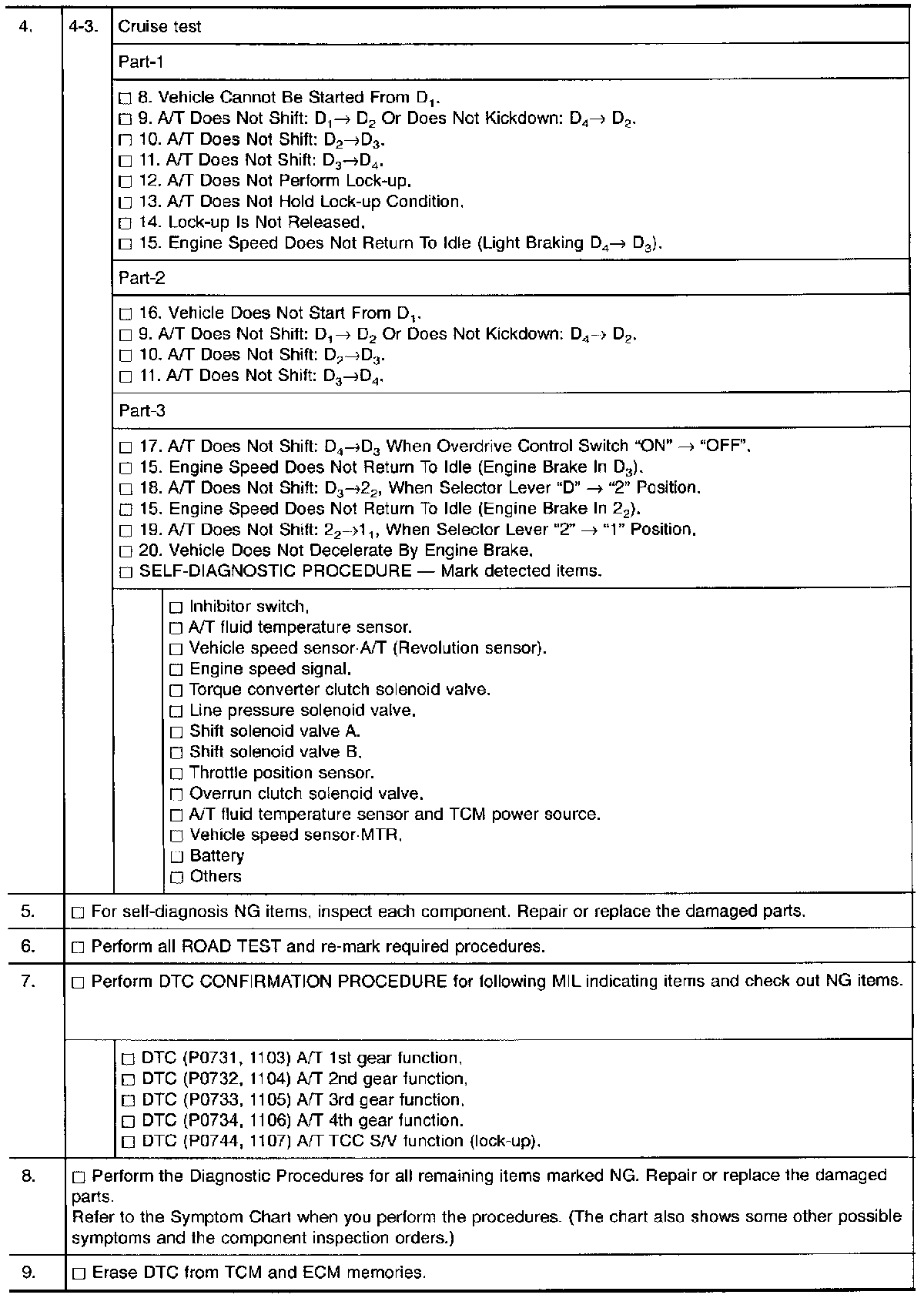

After performing this procedure, place check marks for results on the the "DIAGNOSTIC WORKSHEET".

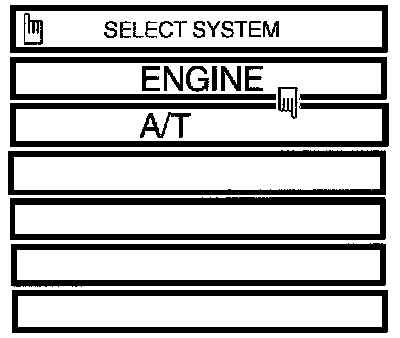

1. Turn on CONSULT and touch "ENGINE" for OBD-11 detected items or touch "A/T" for TCM self-diagnosis.
If A/T is not displayed, check A/T control unit power supply and ground circuit.

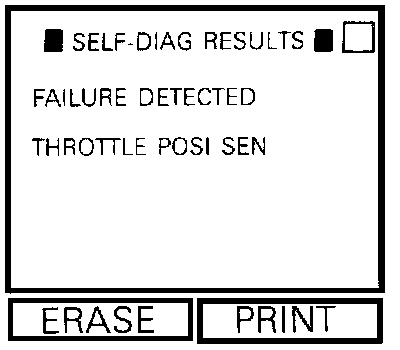

2. Touch "SELF-DIAG RESULTS".
Display shows malfunction experienced since the last erasing operation. CONSULT performs REAL-TIME SELF-DIAGNOSIS. Also, any malfunction detected while in this mode will be displayed at real time.

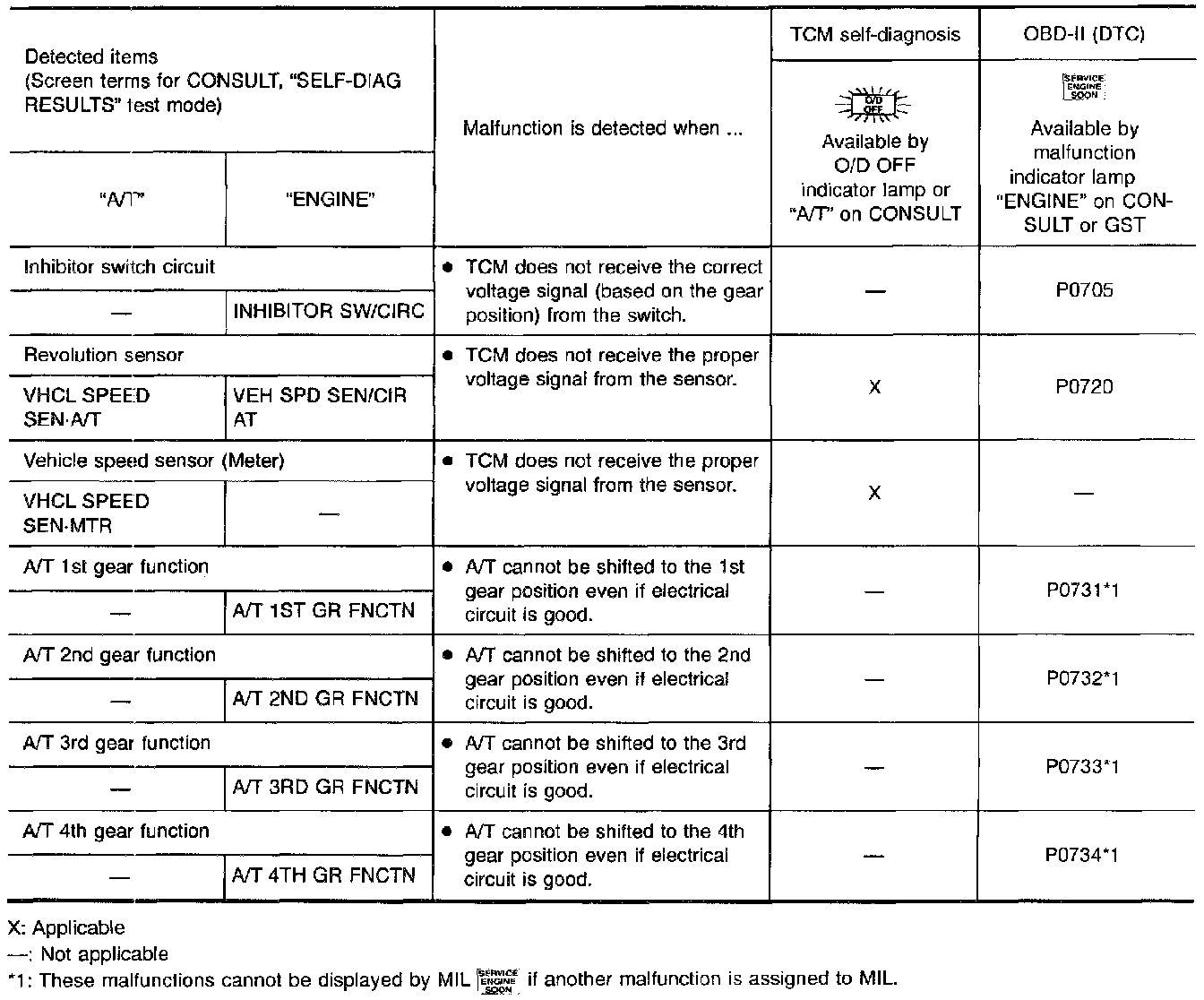

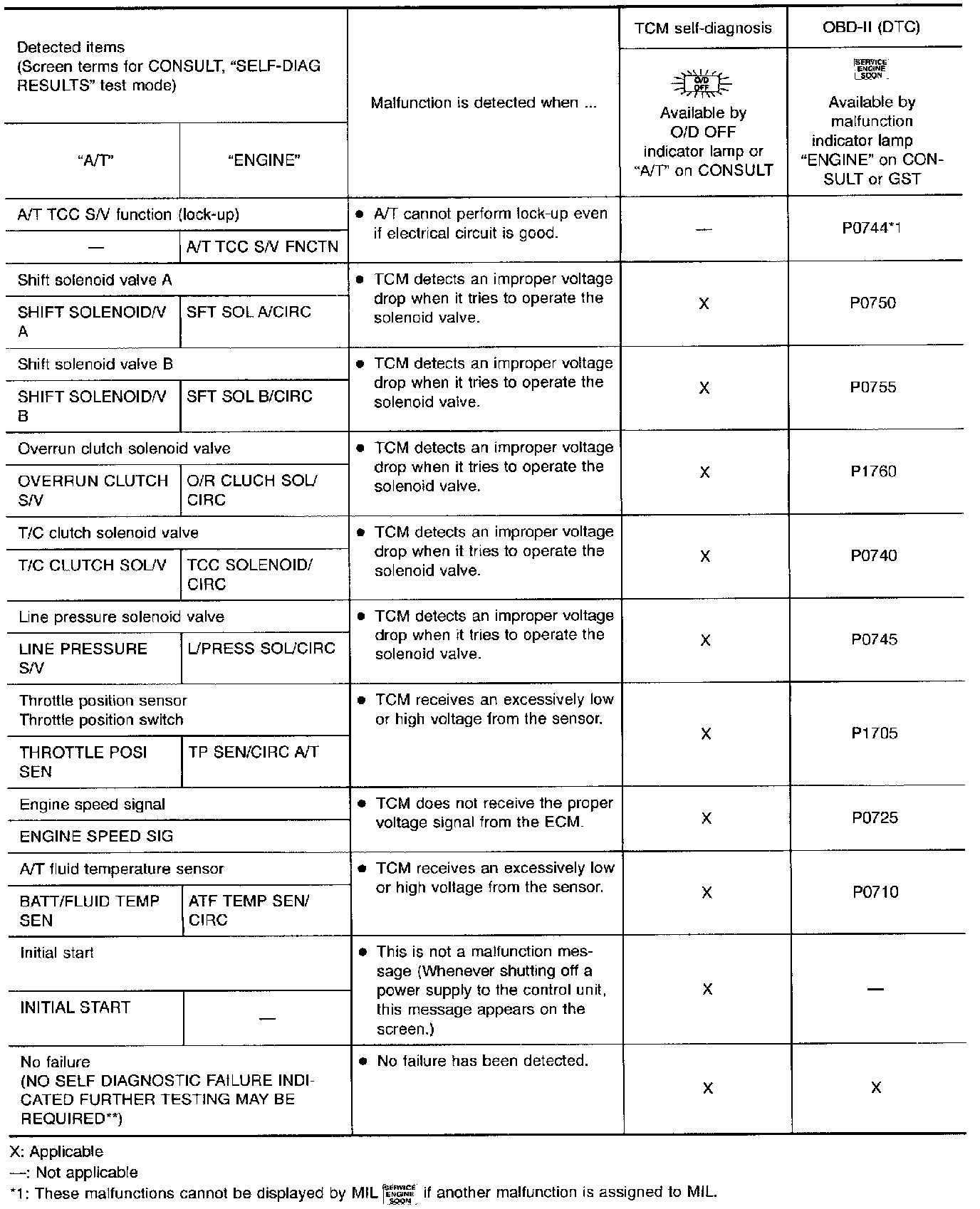

SELF-DIAGNOSTIC DISPLAY TABLE
