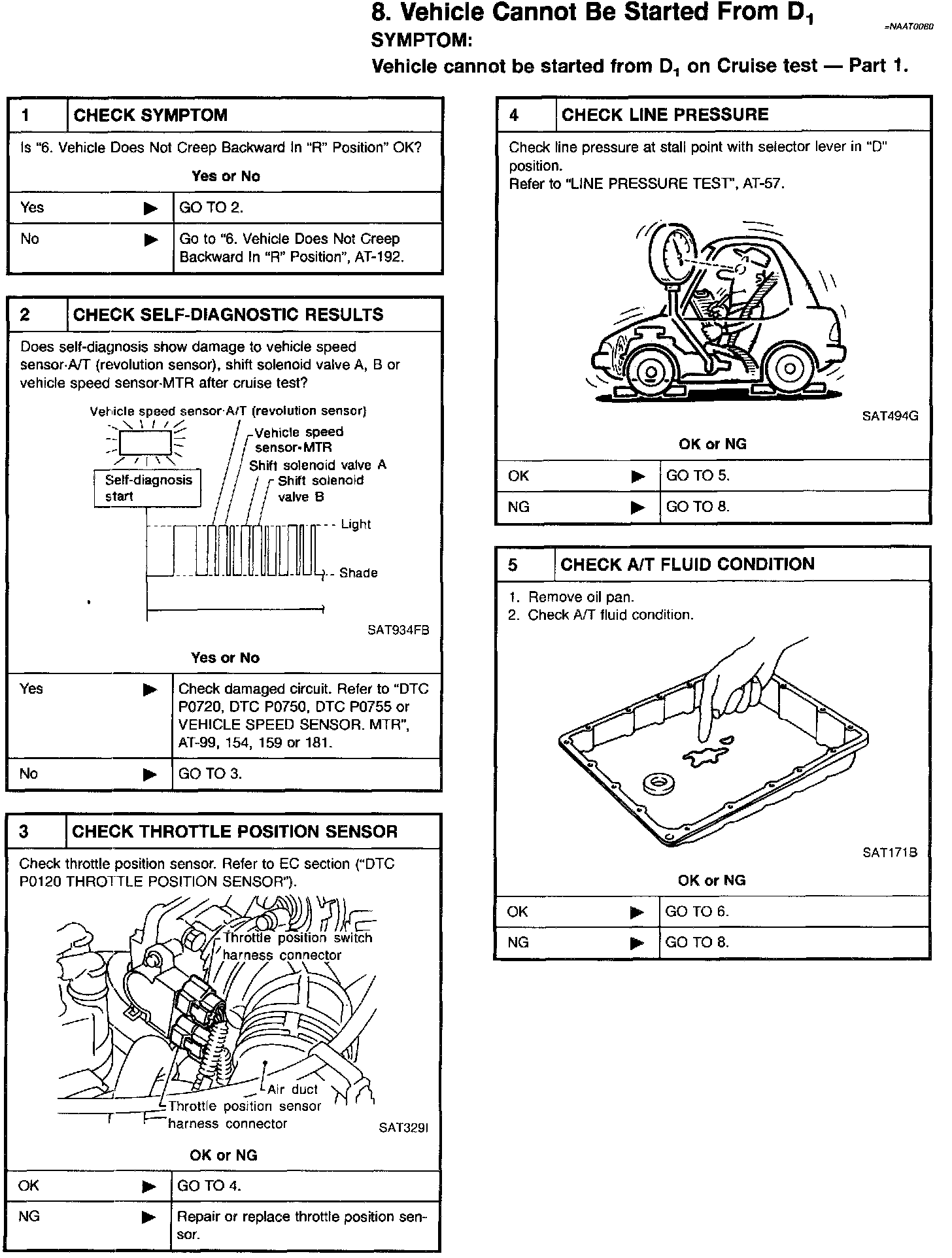

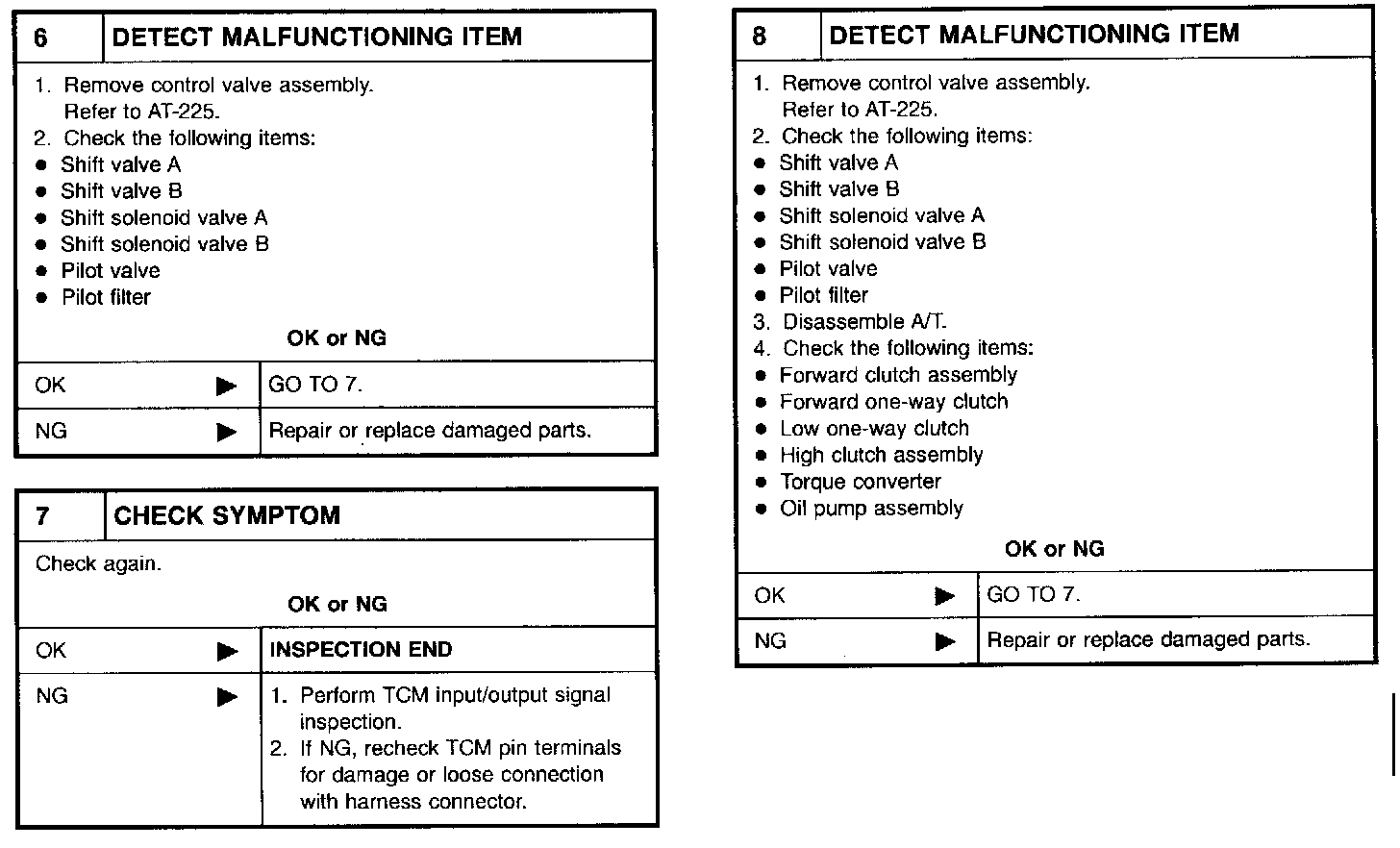

Diagnostic Procedure 8
Diagnostic Procedure 8
SYMPTOM:
Vehicle cannot be started from D1 on Cruise test - Part I.
Wiring Diagrams
Connectors
