Diagnostic Procedure 19

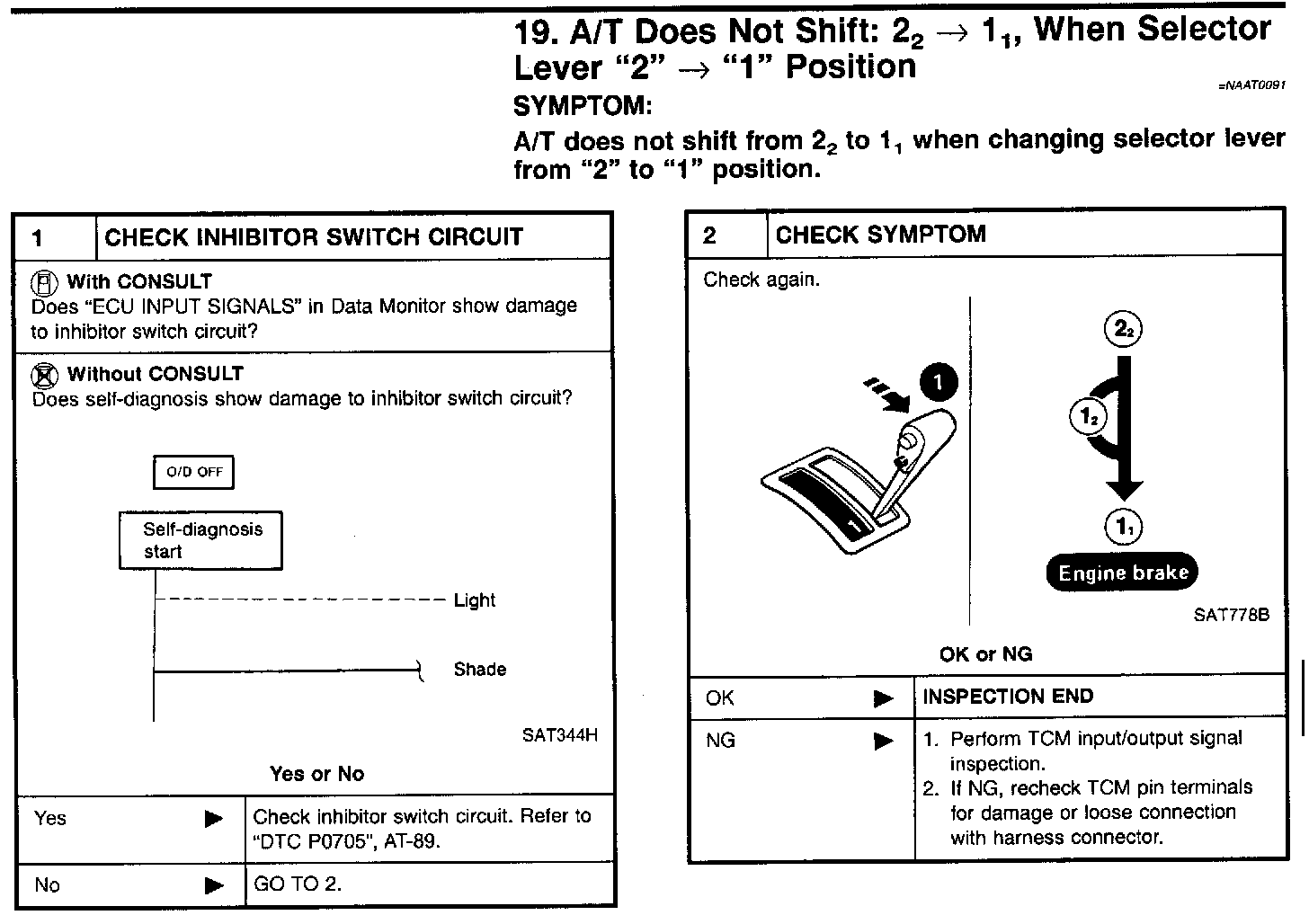

Diagnostic Procedure 19
SYMPTOM:
A/T does not shift from 2 to 1 when changing selector lever from "2" to "1" position.
