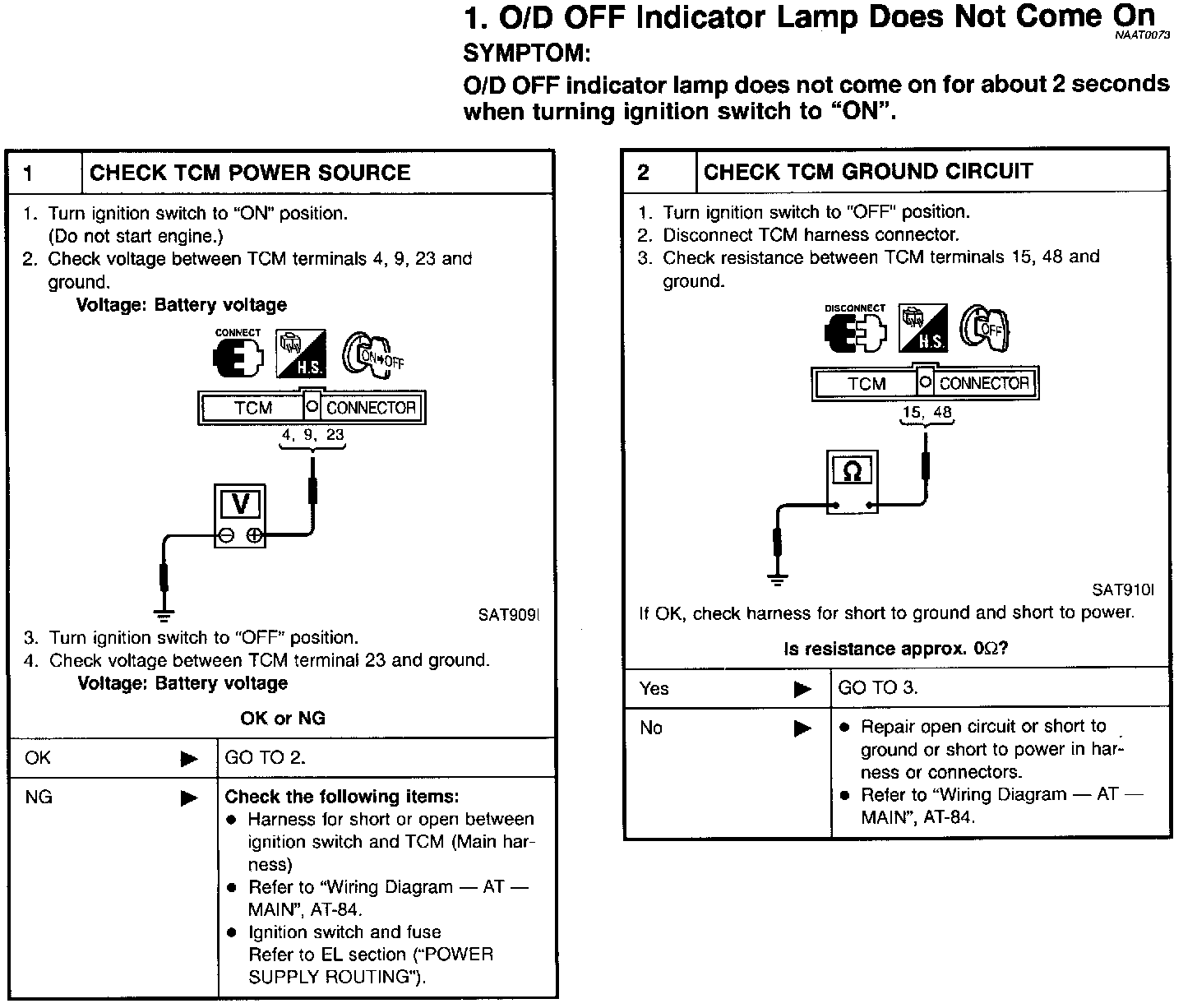

Diagnostic Procedure 1

SYMPTOM:
O/D 0FF indicator lamp does not come on for about 2 seconds when turning ignition switch to "ON".

Wiring Diagrams

Connectors
