Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
>>
To VIN # 350000
To VIN # 350000
Circuit Diagram

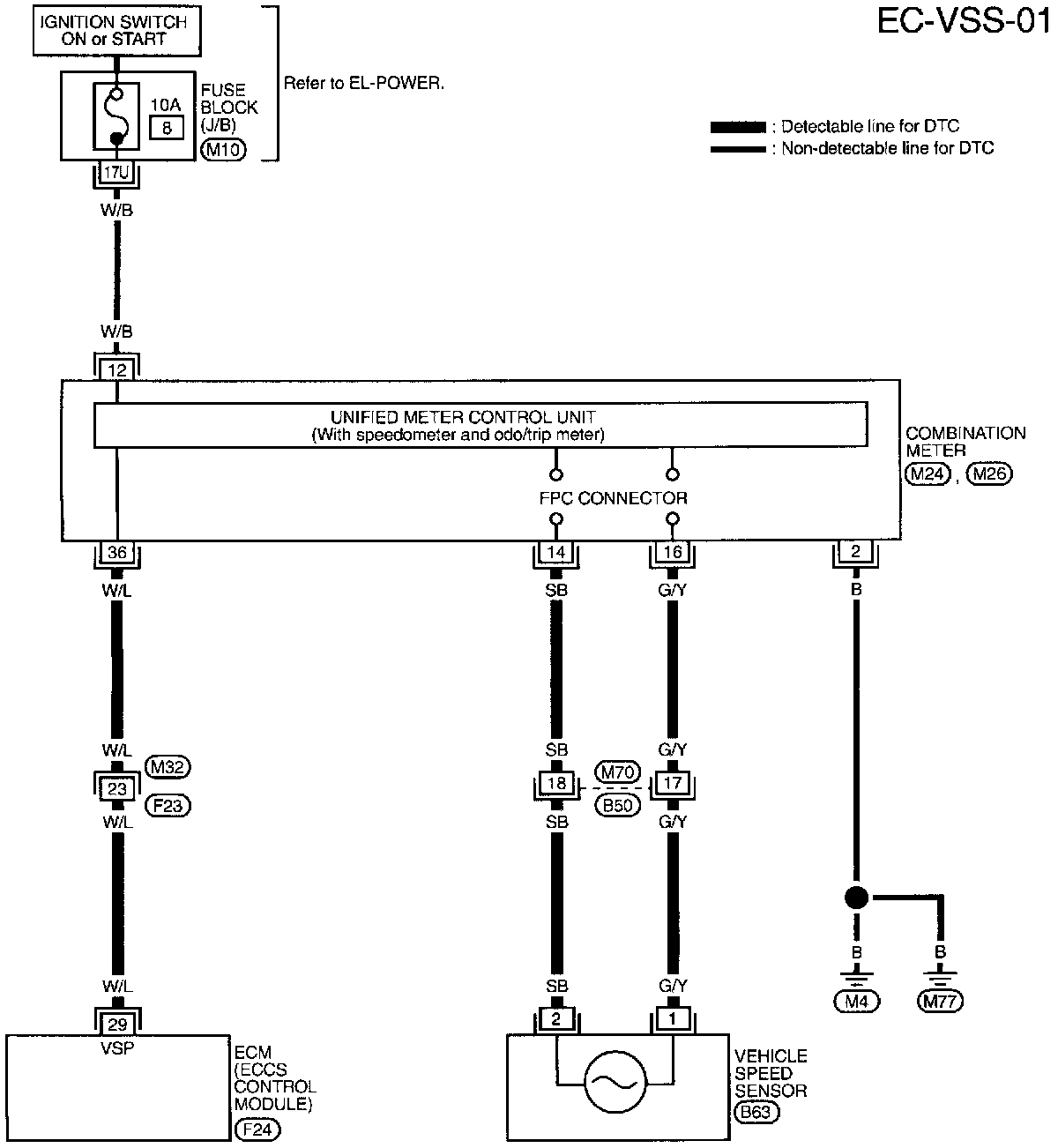

EC-VSS-01:

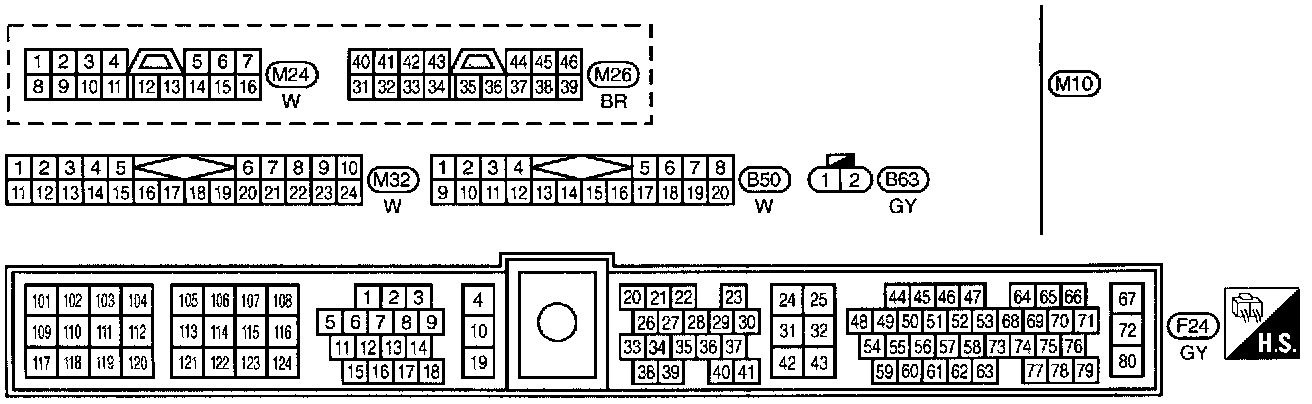

EC-VSS-01 Connectors:

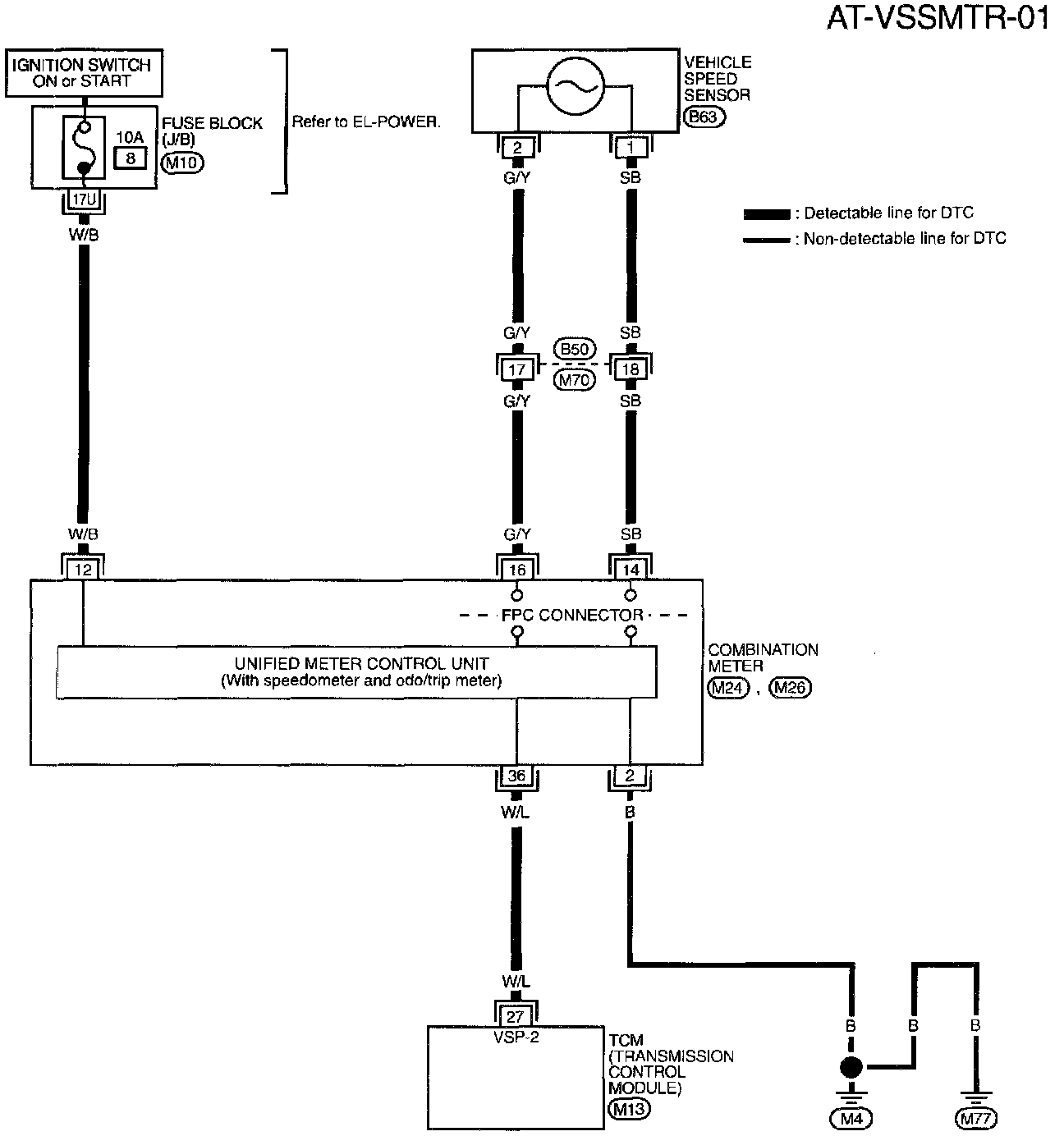

AT-VSSMTR-01:

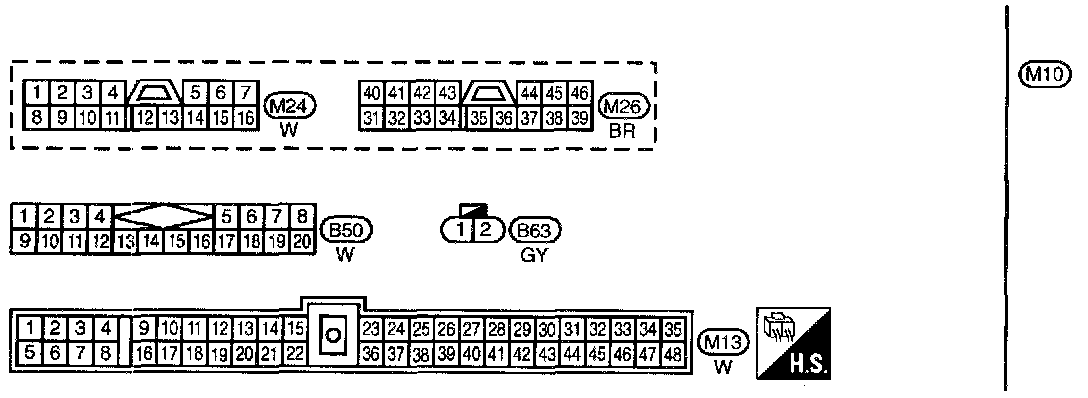

AT-VSSMTR-01 Connectors:
M10 Terminal Arrangement
