With CONSULT

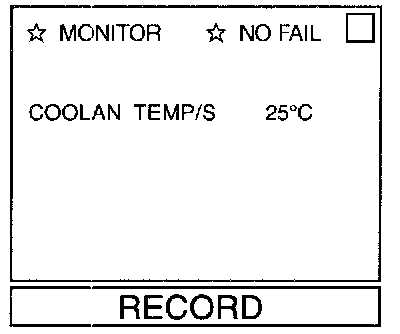

2. See "COOLANT TEMP/S" in "DATA MONITOR" mode with CONSULT.
3. When engine coolant temperature is 25 ± 5°C (77 ± 9°F), make sure that the center of mark A is aligned with mark B as shown in the figure.

- If NG, adjust by turning adjusting screw.

Lock nut:
0.98 - 1.96 N.m (10 - 20 kg-cm, 8.7 - 17.4 in-lb)

4. Start engine and warm it up.

5. When engine coolant temperature is 80 ± 5°C (176 ± 9°F), check the following.
- The center of mark A is aligned with mark C.
- The cam follower lever's roller is not touching the fast idle cam.
- If NG, replace thermo-element and perform the above inspection and adjustment again.
