Symptom Matrix Chart From VIN # 350001

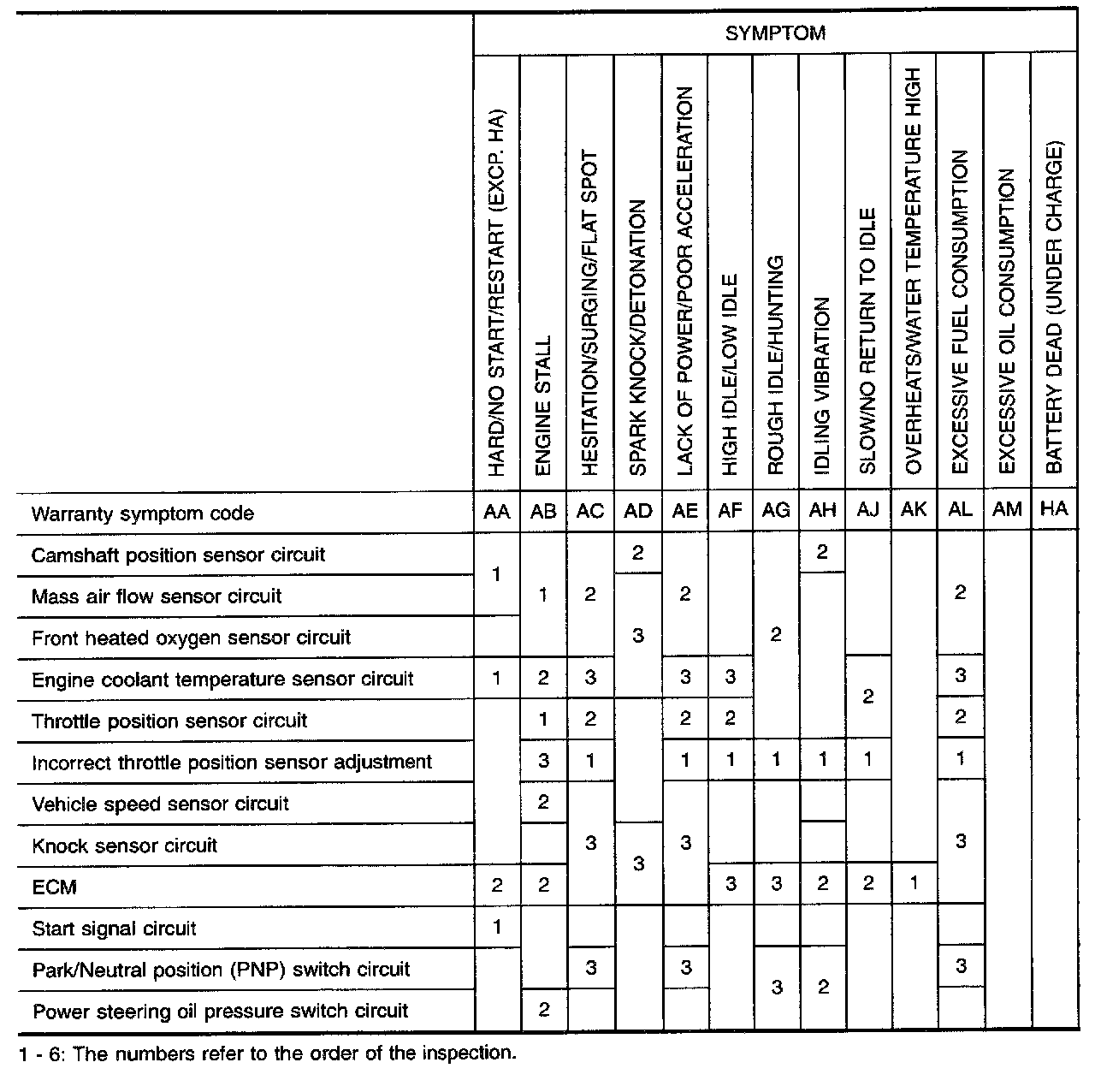

Basic Engine Control System (Part 1 Of 2):

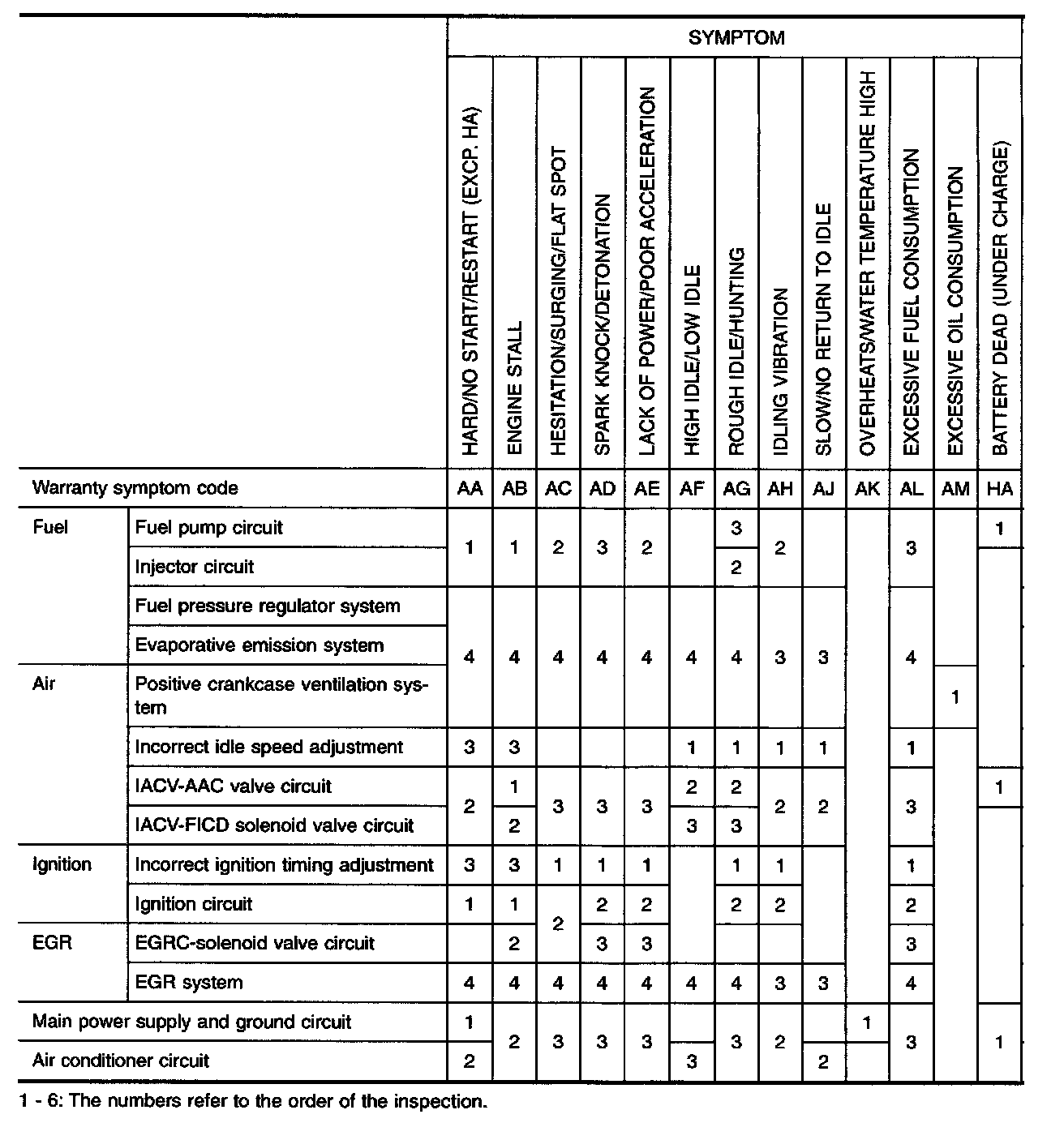

Basic Engine Control System (Part 2 Of 2):

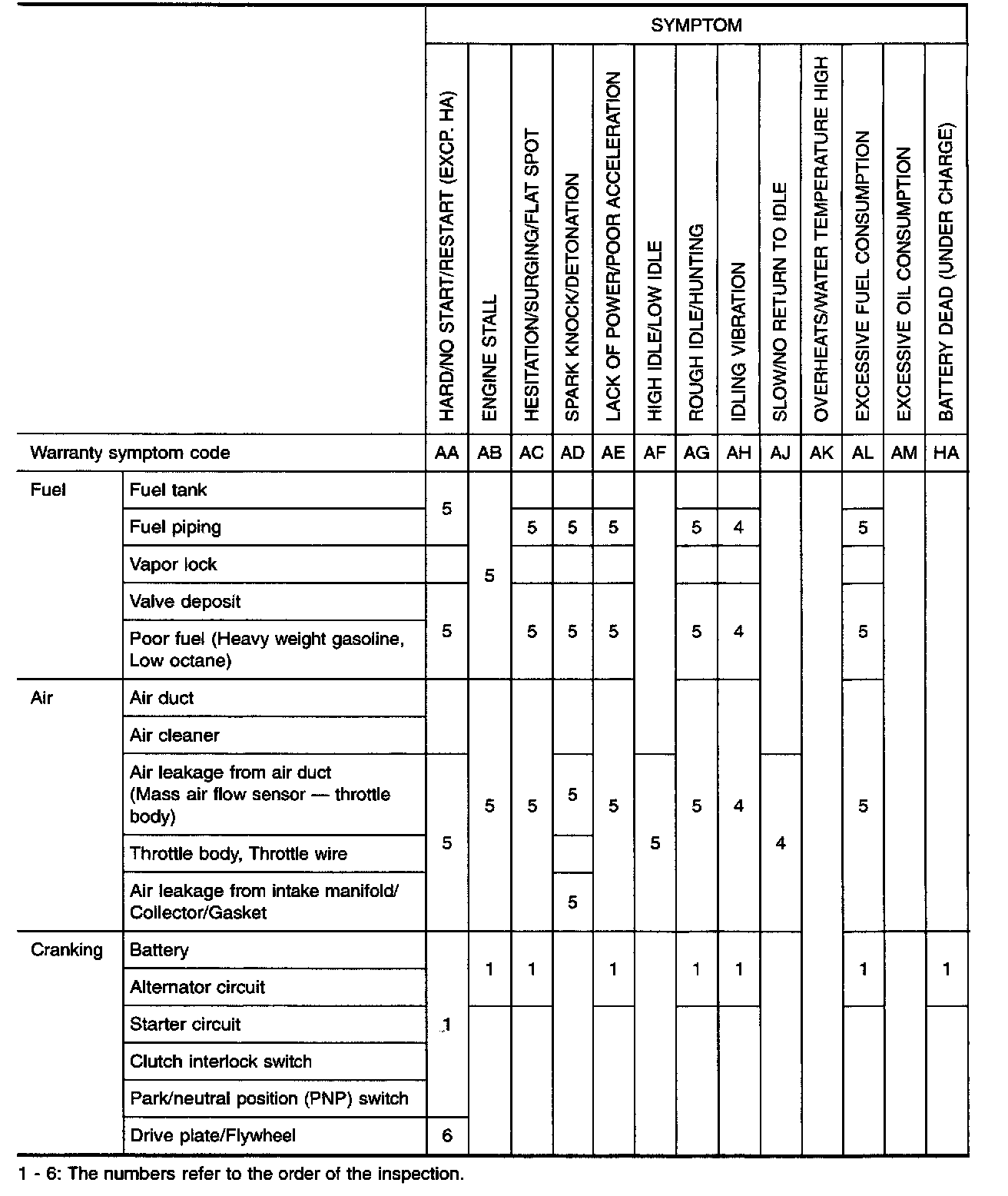

Engine Mechanical & Other (Part 1 Of 2):

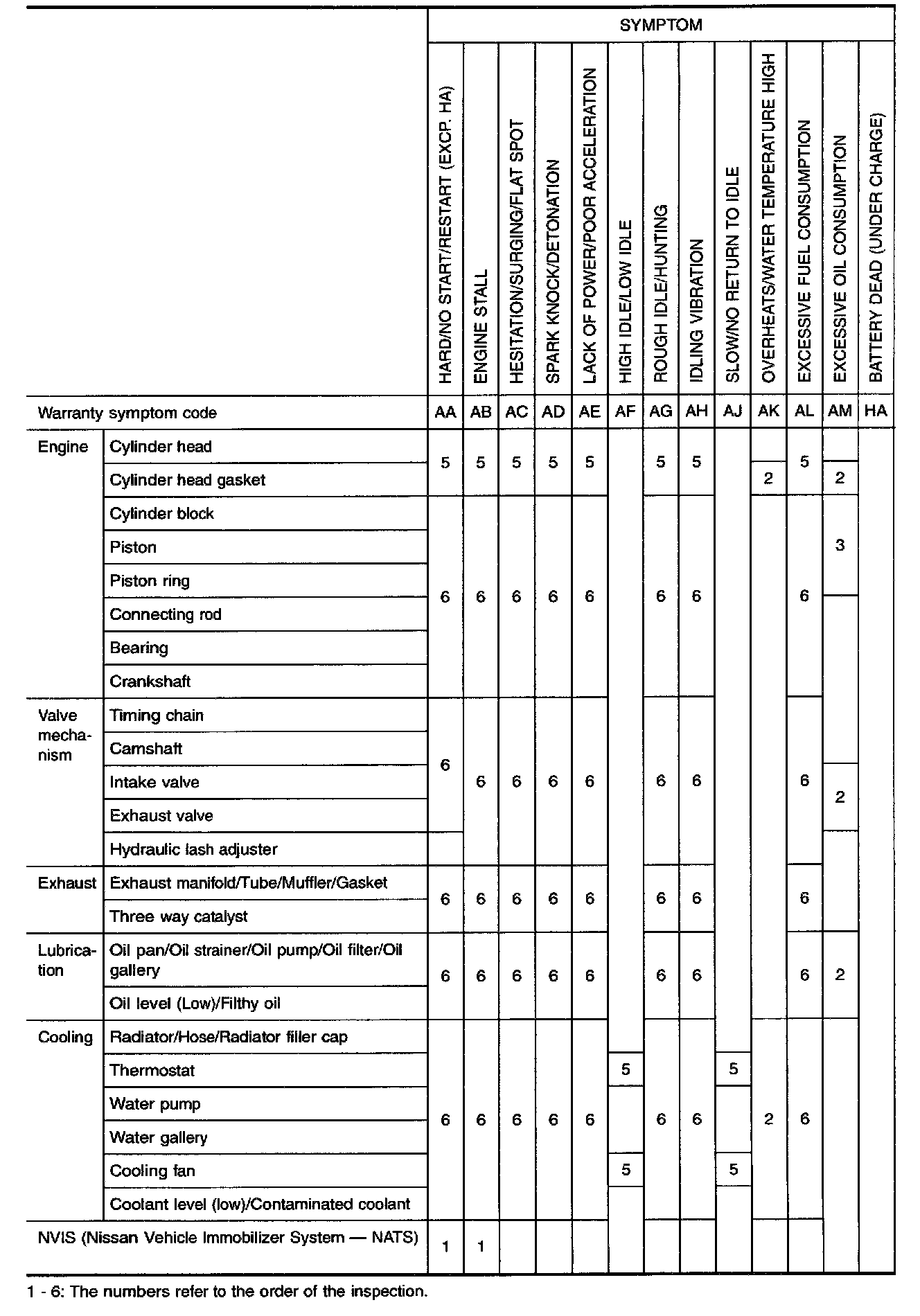

Engine Mechanical & Other (Part 2 Of 2):
