CONSULT Inspection Procedure

CONSULT INSPECTION PROCEDURE
1. Turn off ignition switch.

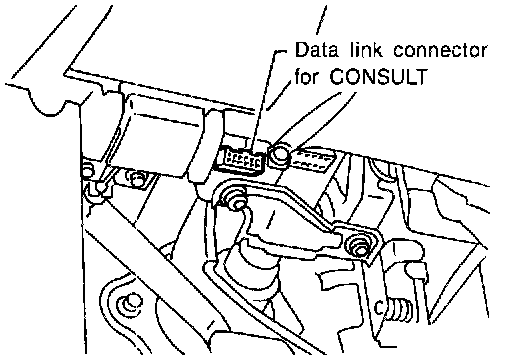

2. Connect "CONSULT" to data link connector for CONSULT. (Data link connector for CONSULT is located under LH dash panel near the fuse box cover.)
3. Turn on ignition switch.

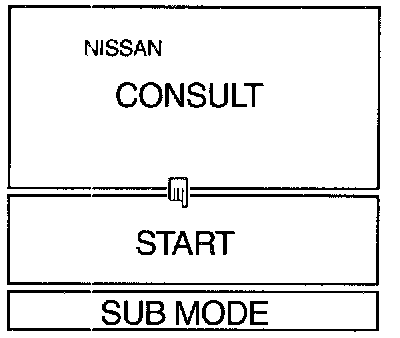

4. Touch "START".

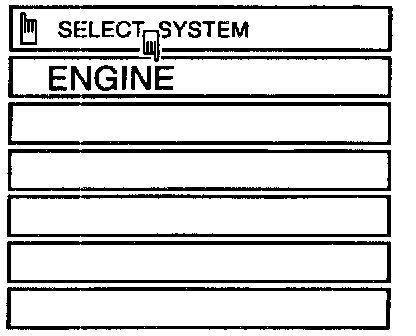

5. Touch "ENGINE".

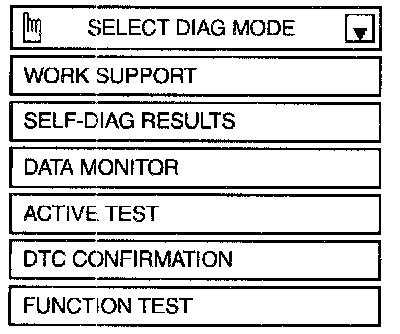

6. Perform each diagnostic test mode according to each service procedure.

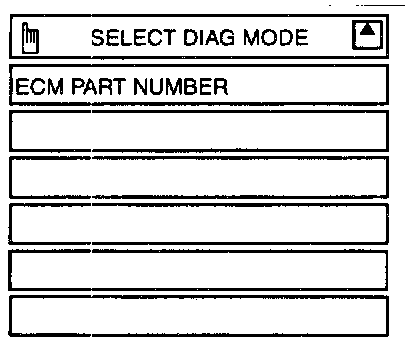

This sample shows the display when using the UEOBD98 program card. Screen differs in accordance with the program card used.
