To VIN # 350000

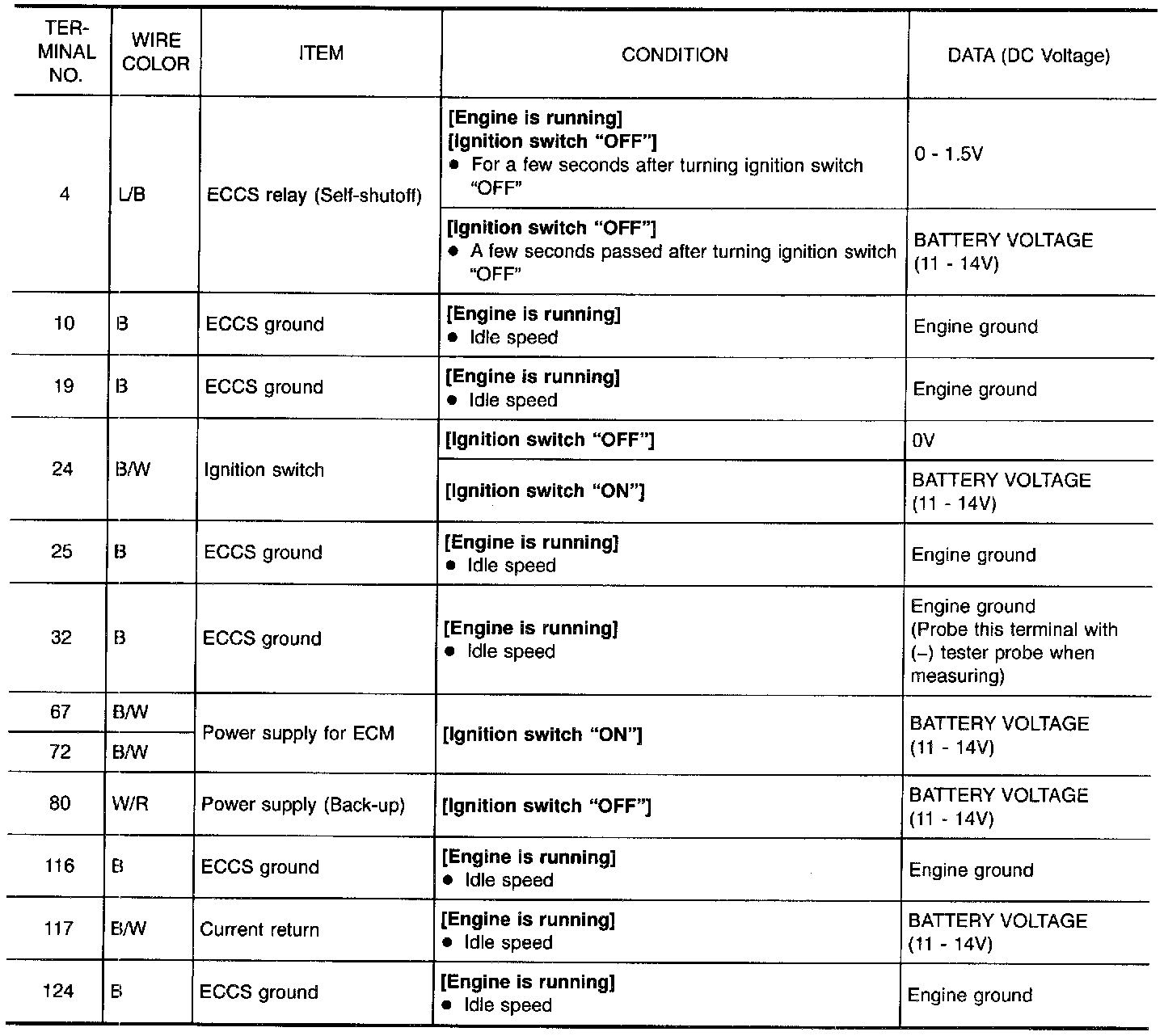

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 32 (ECCS ground).

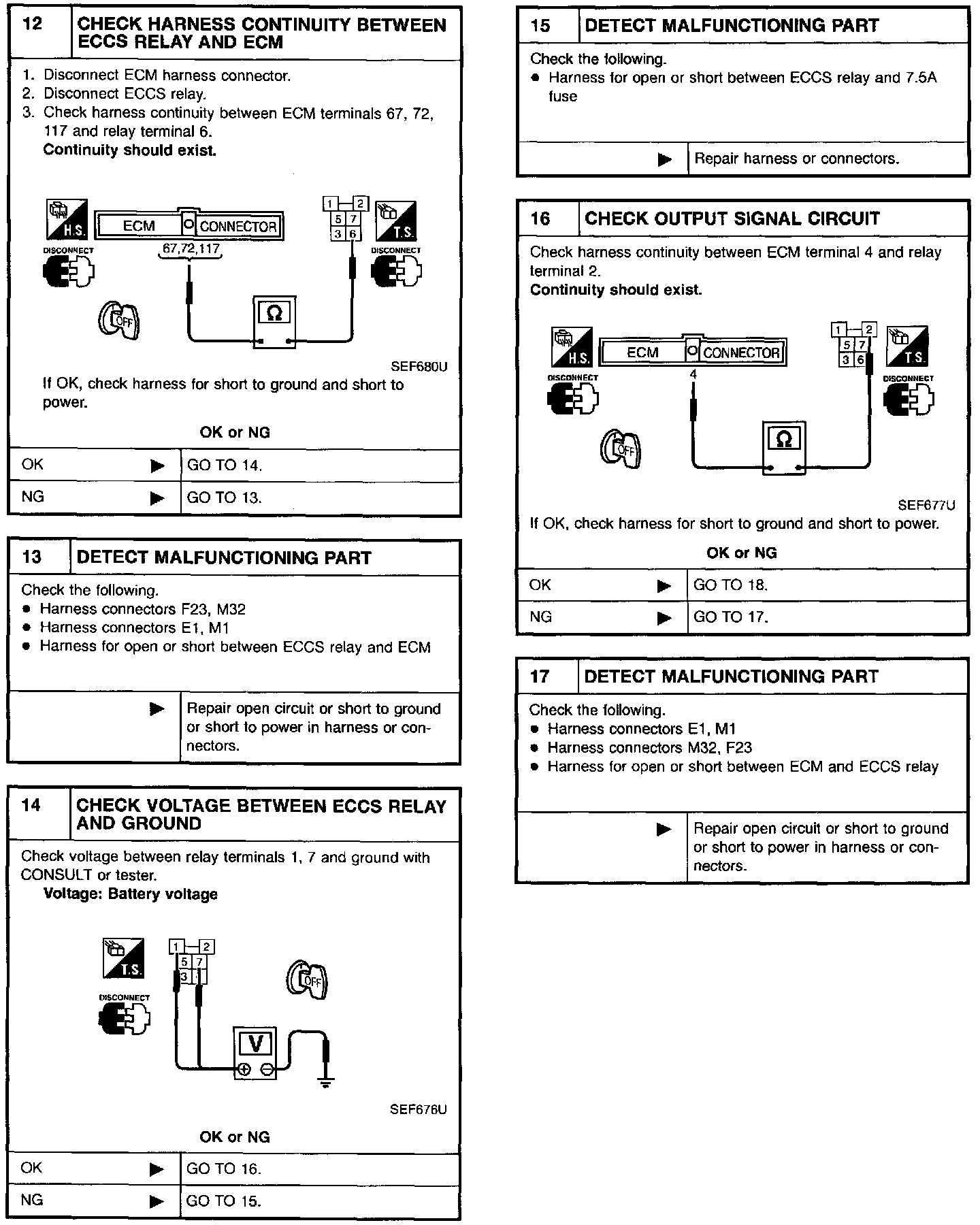

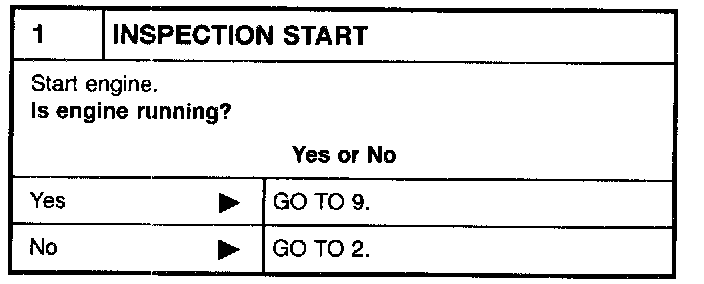

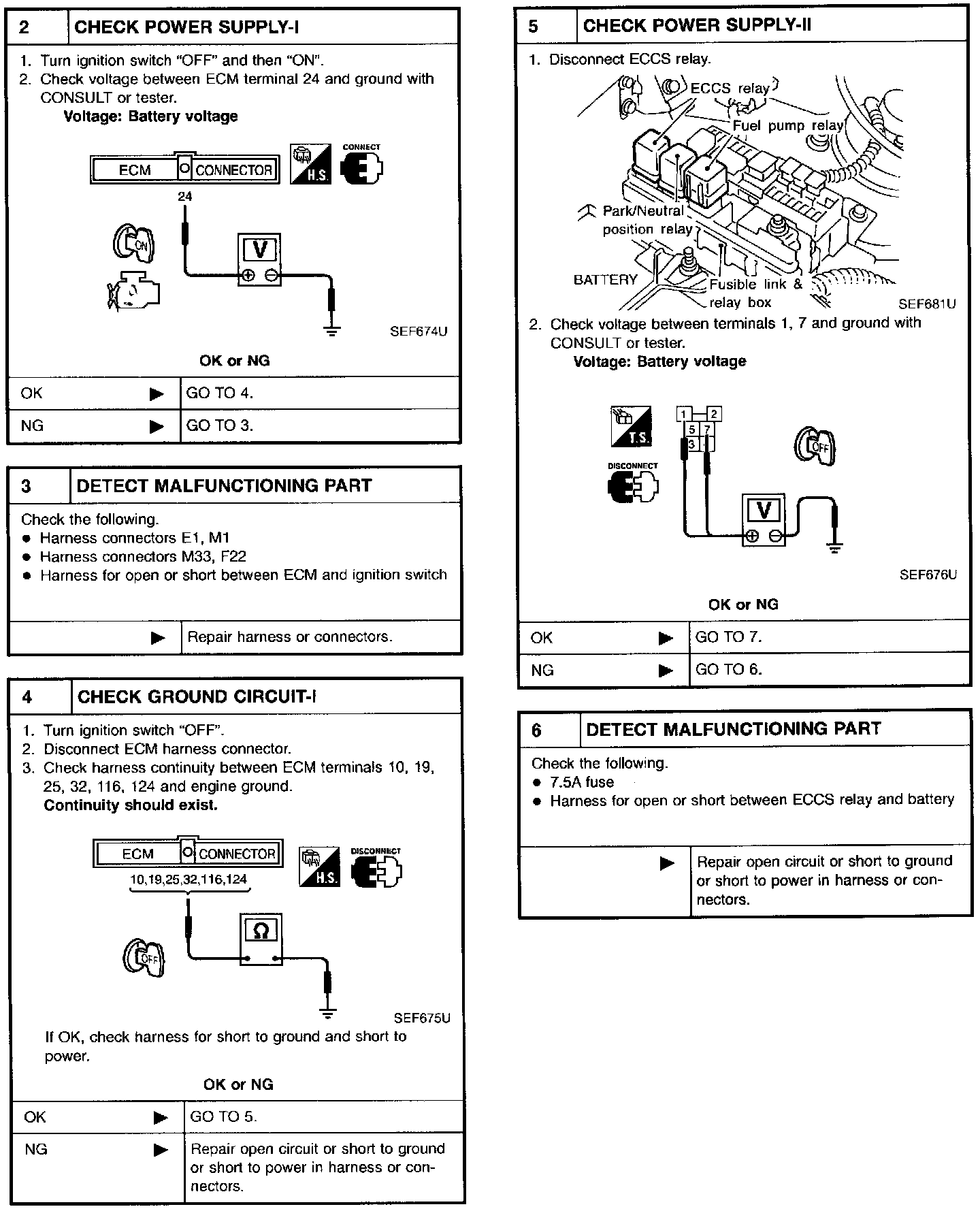

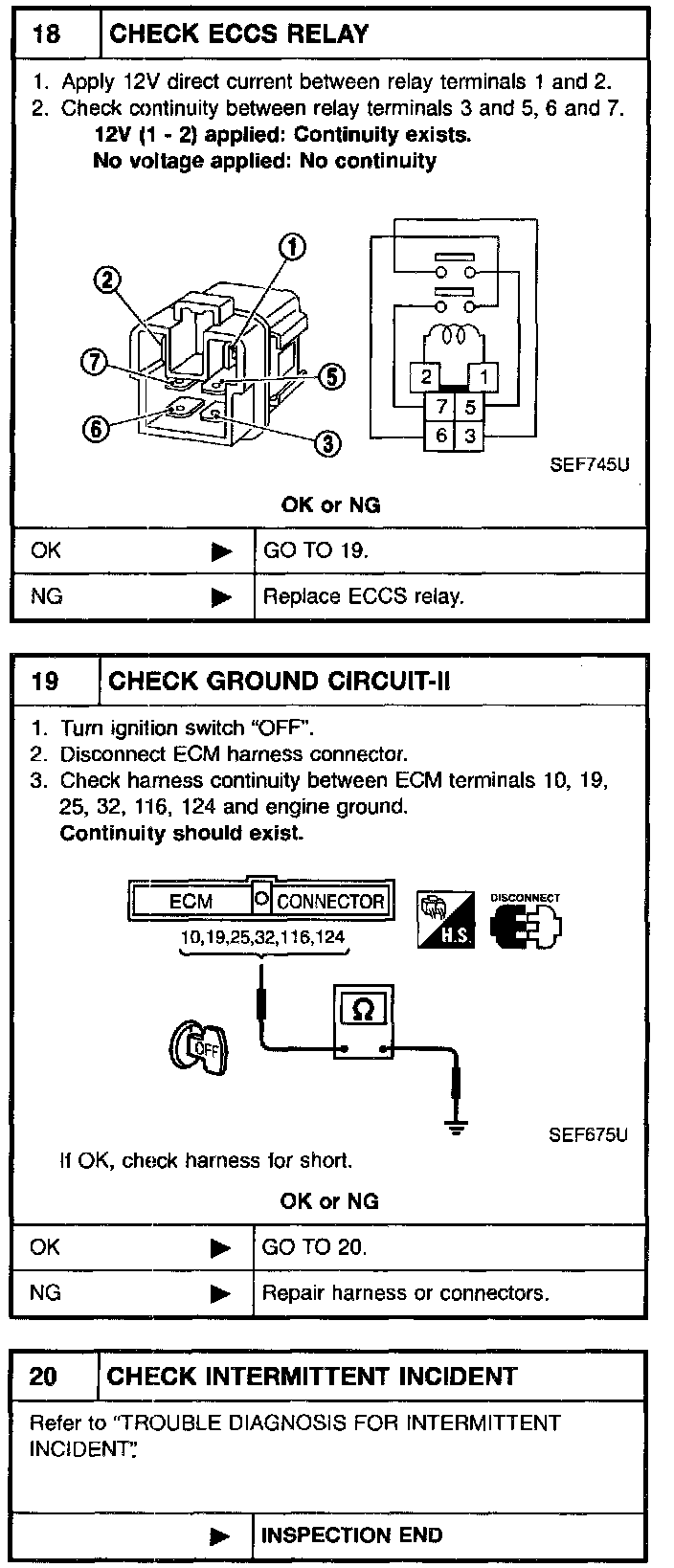

DIAGNOSTIC PROCEDURE
