Start Signal Circuit
>>

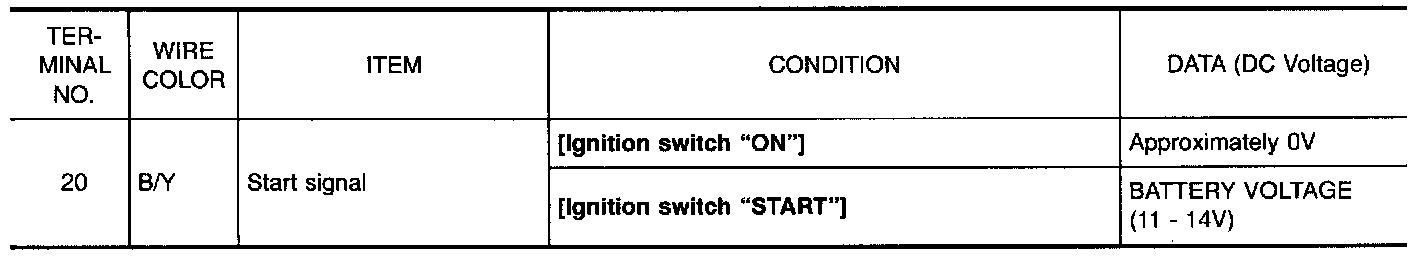

ECM Terminals and Reference Value
ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and 32 (ECCS ground).
