Component Inspection

IACV-FICD SOLENOID VALVE
Disconnect IACV-FICD solenoid valve harness connector.

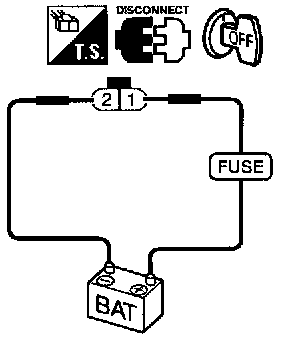

- Check for clicking sound when applying 12V direct current to terminals.

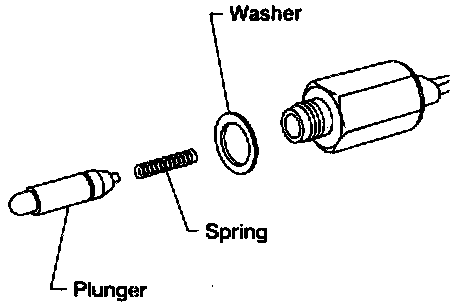

- Check Plunger for seizing or sticking.
- Check for broken.
