Component Description

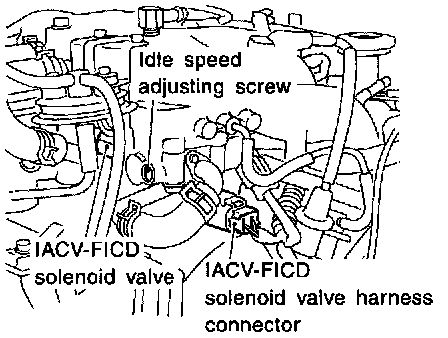

When the air conditioner is on the IACV-FICD solenoid valve supplies additional air to adjust to the increased load.
