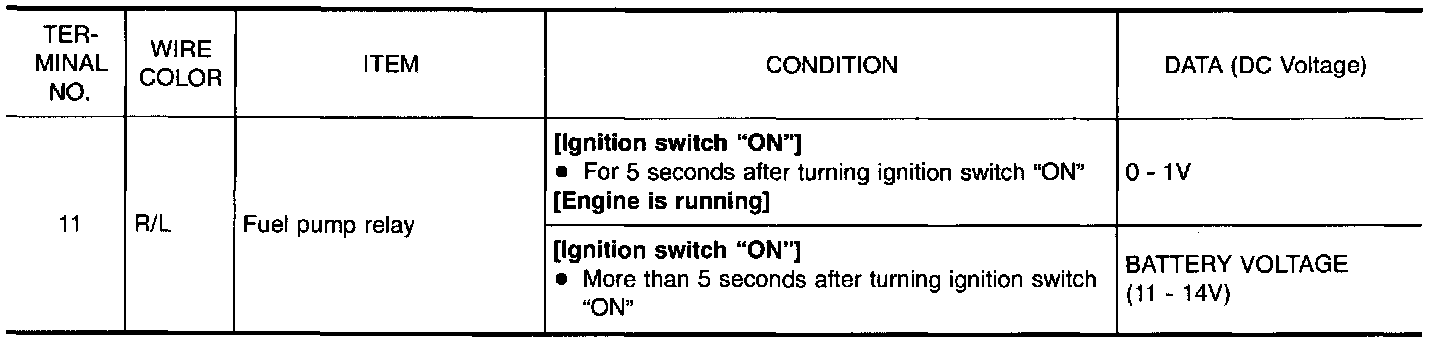

ECM Terminals and Reference Value
ECM Terminals and Reference Value
Specification data are reference values are measured between each terminal and 32 (ECCS ground).
