Component Inspection

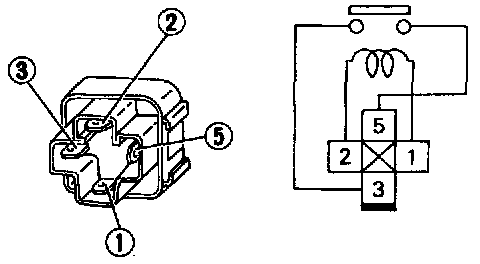

FUEL PUMP RELAY

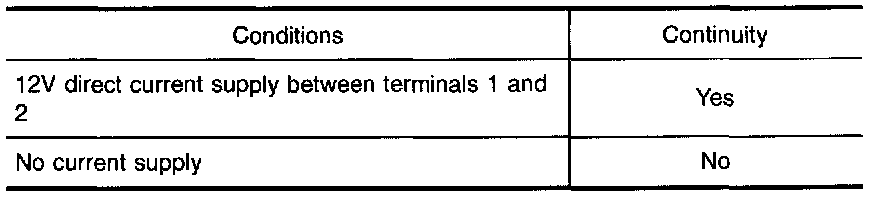

Check continuity between terminals 3 and 5.
If NG, replace relay.

FUEL PUMP

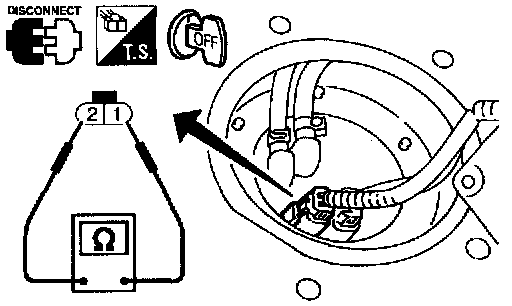

1. Disconnect fuel pump harness connector.
2. Check resistance between terminals 1 and 2.
Resistance: 0.2 - 5.0 Ohms [at 25° C (77° F)]
If NG, replace fuel pump.
