Oxygen Sensor: Locations

Underhood Component Locations:

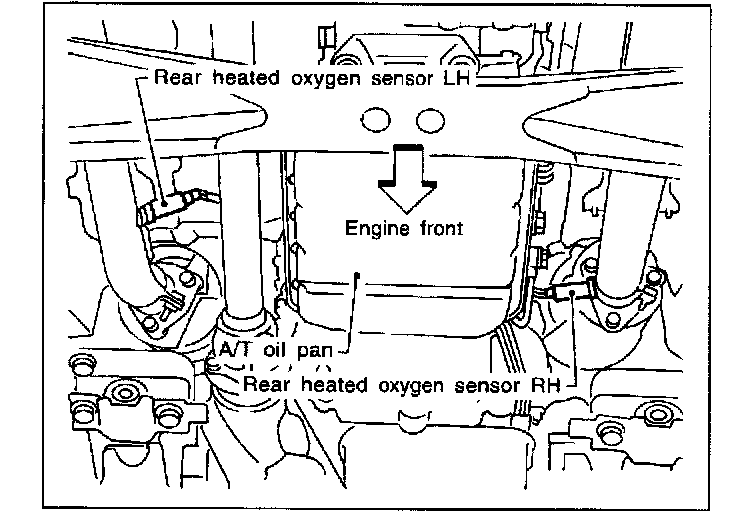

Component Location View:

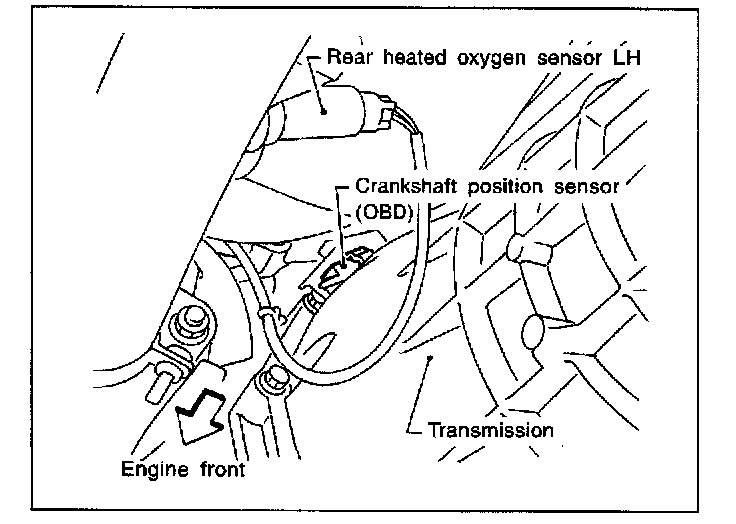

Component Location View:

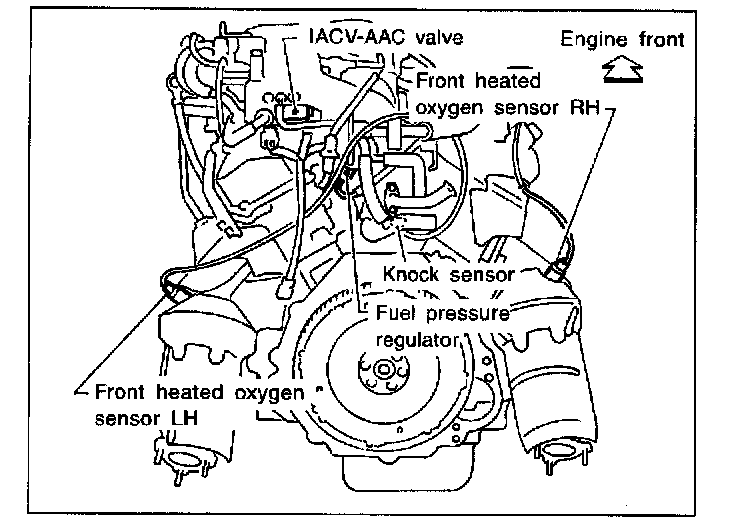

Component Location View:
