Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

INTAKE AIR TEMPERATURE SENSOR

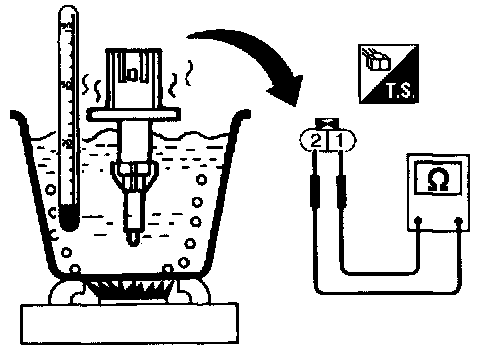

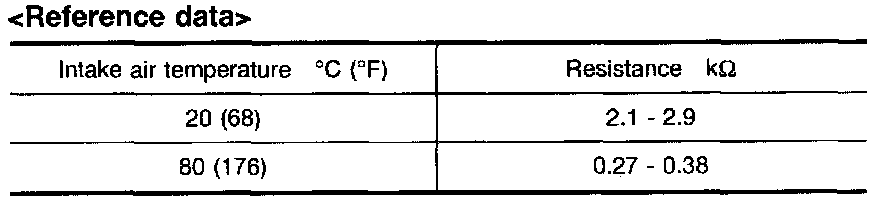

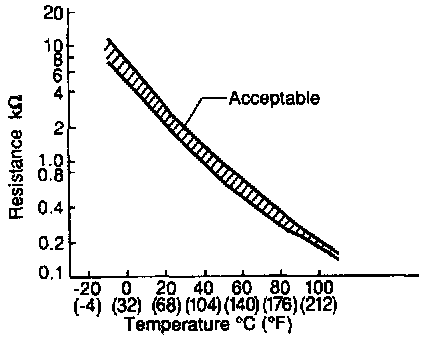

Check resistance as shown in the figure.
If NG, replace intake air temperature sensor.
