Idle Speed/Throttle Actuator - Electronic: Locations

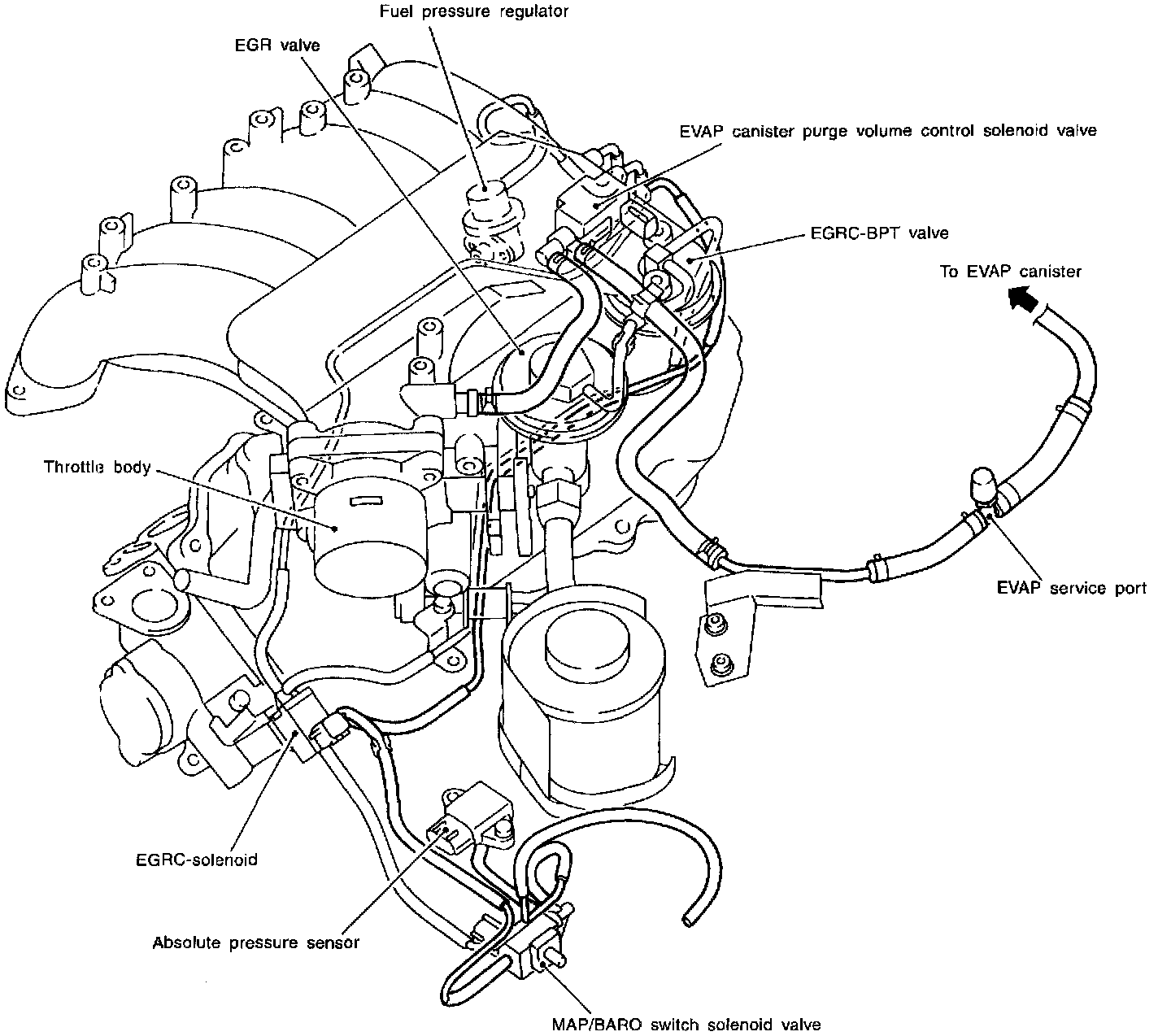

Engine Control Component Part Location:

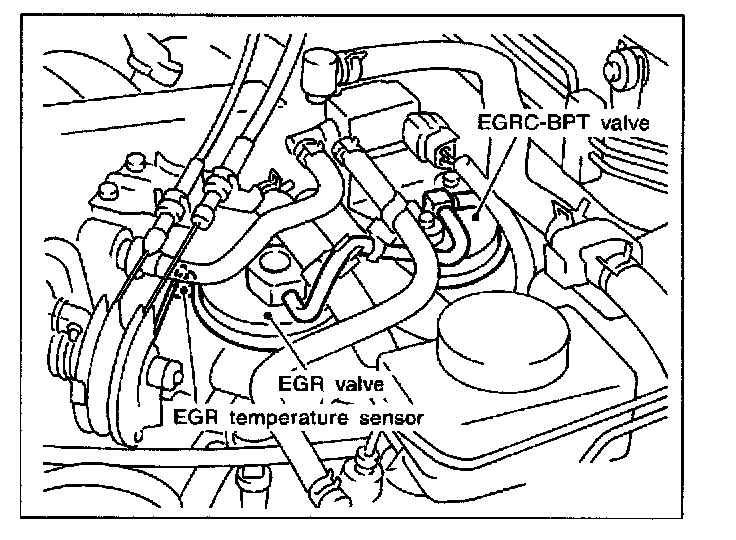

Component Location View:

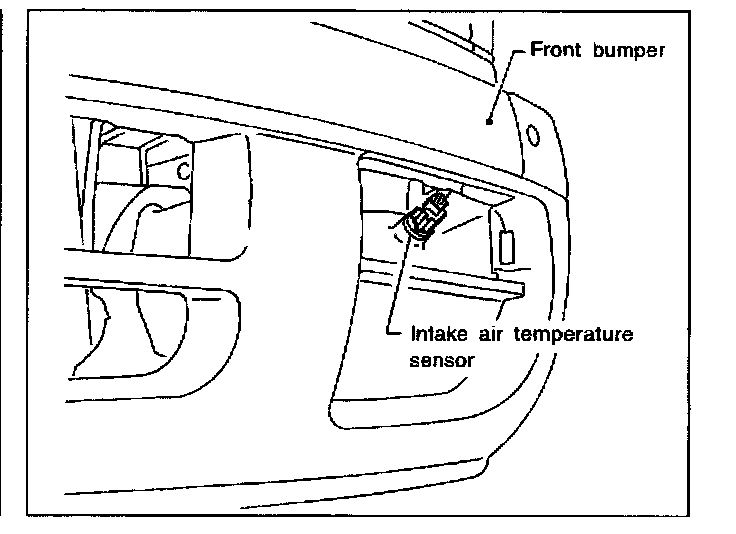

Component Location View:
Component Location View:
Component Location View:
Component Location View:

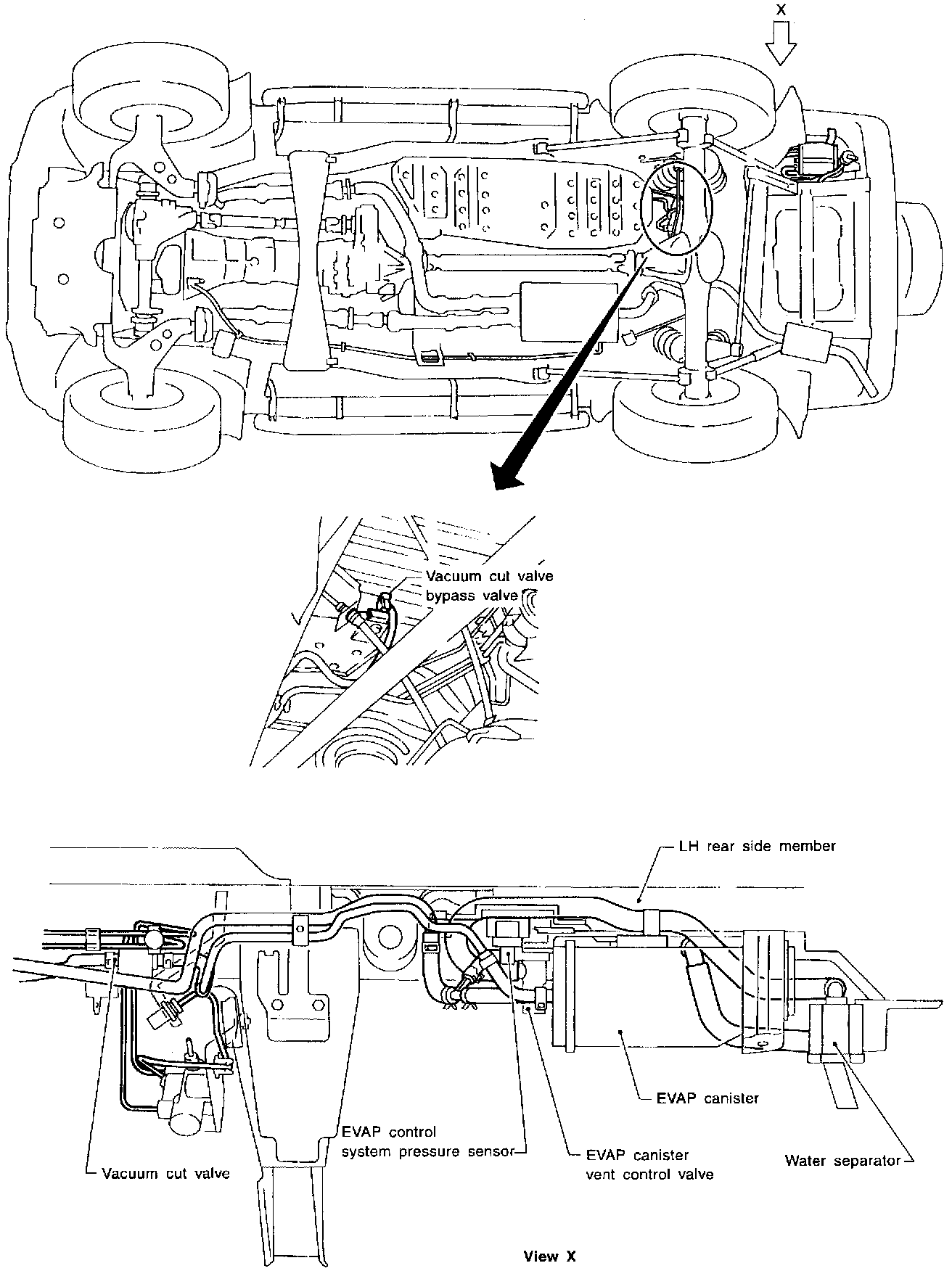

Evaporative Emission Line Drawing:
