Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Locations >> To VIN # 350000

To VIN # 350000

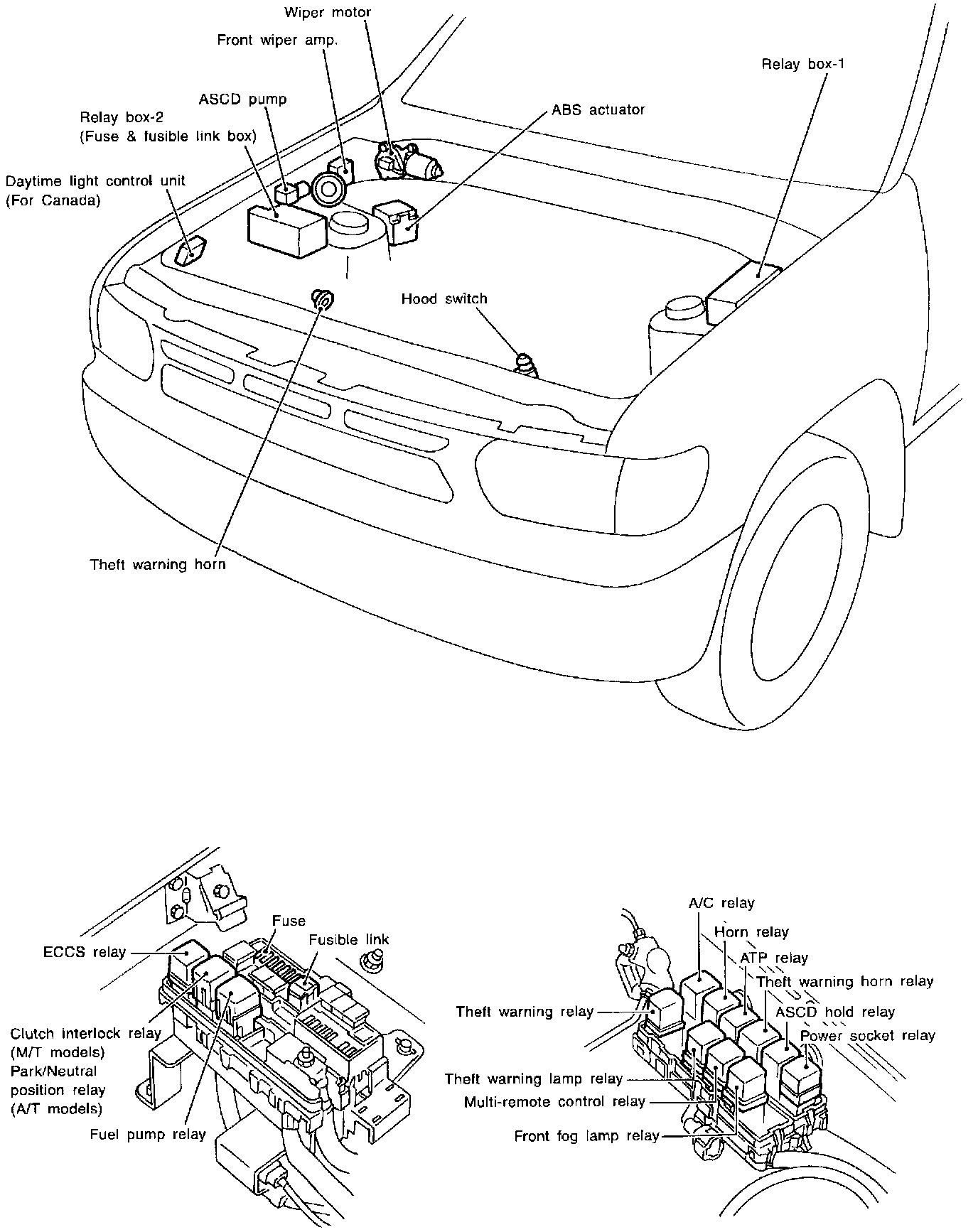

Individual Component Locations:





Engine Compartment
