Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
To VIN # 350000
>>
Door Harness
Door Harness
Back
Front

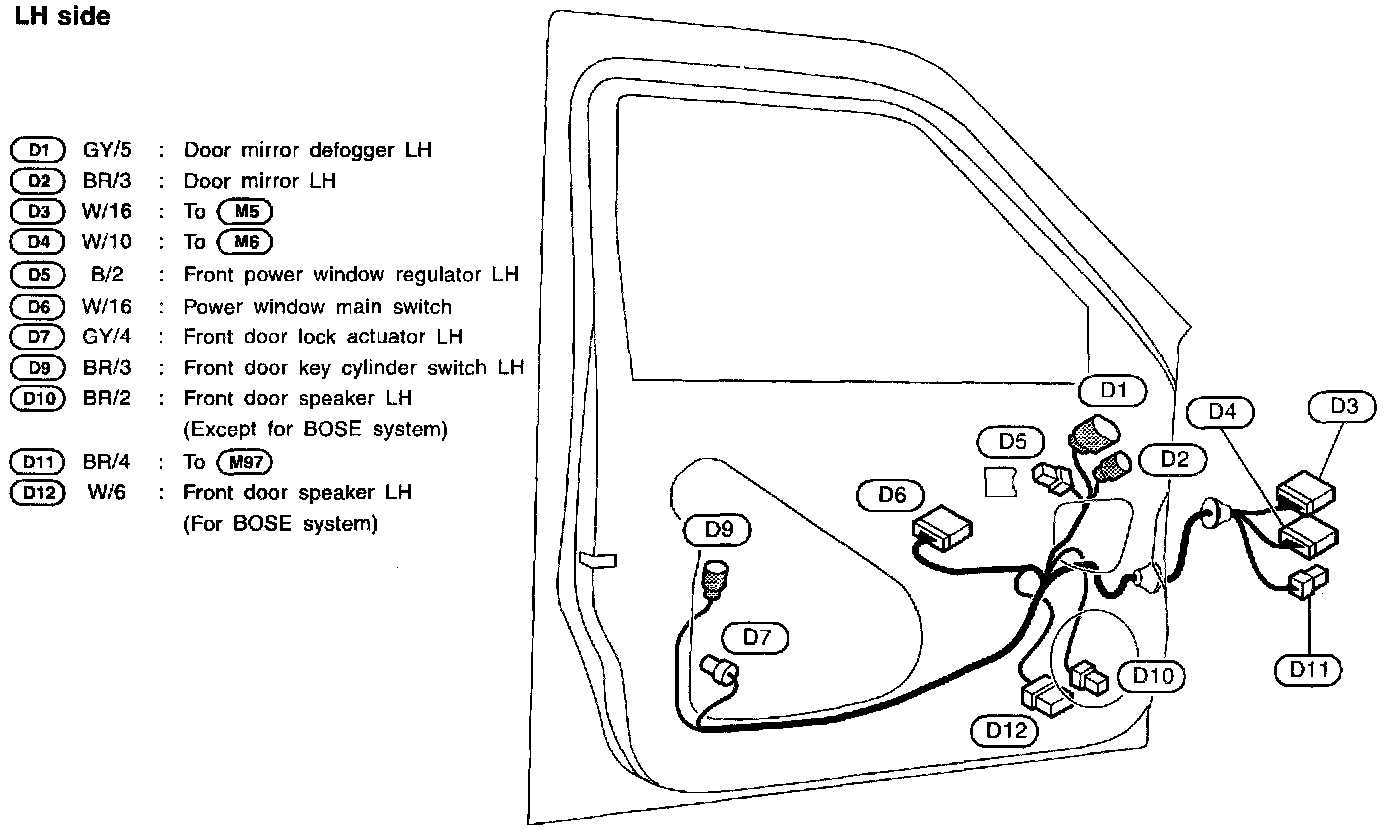

LH Side

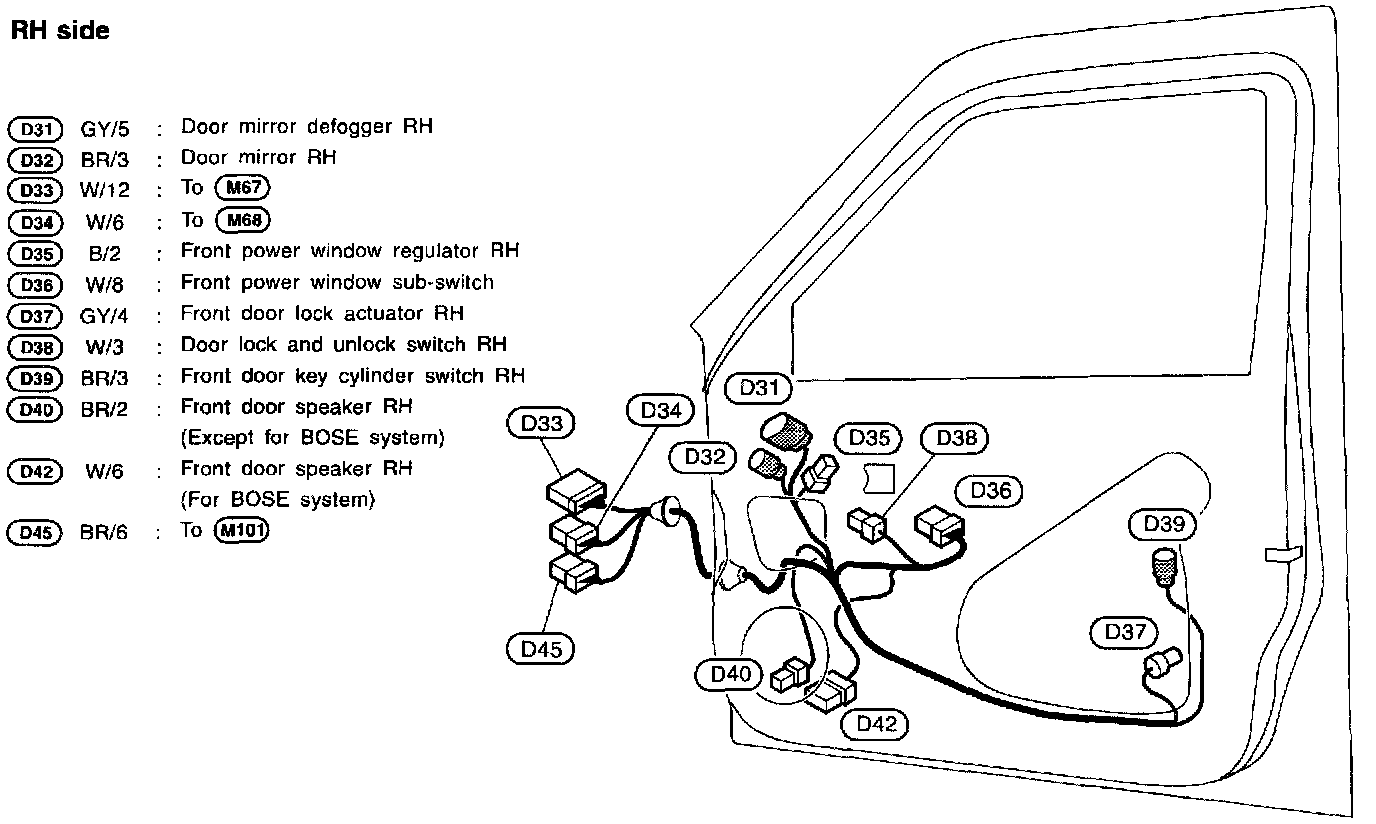

RH Side
Rear

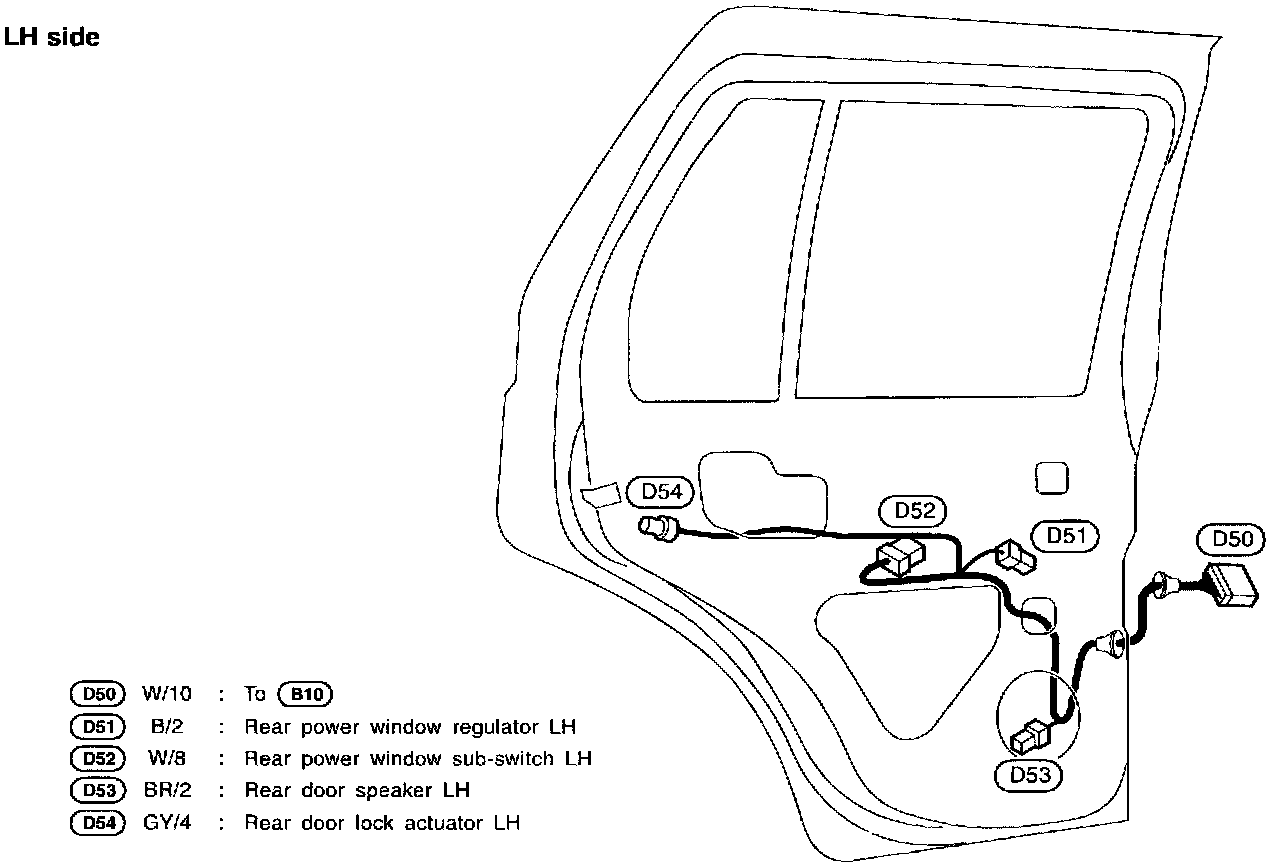

LH Side

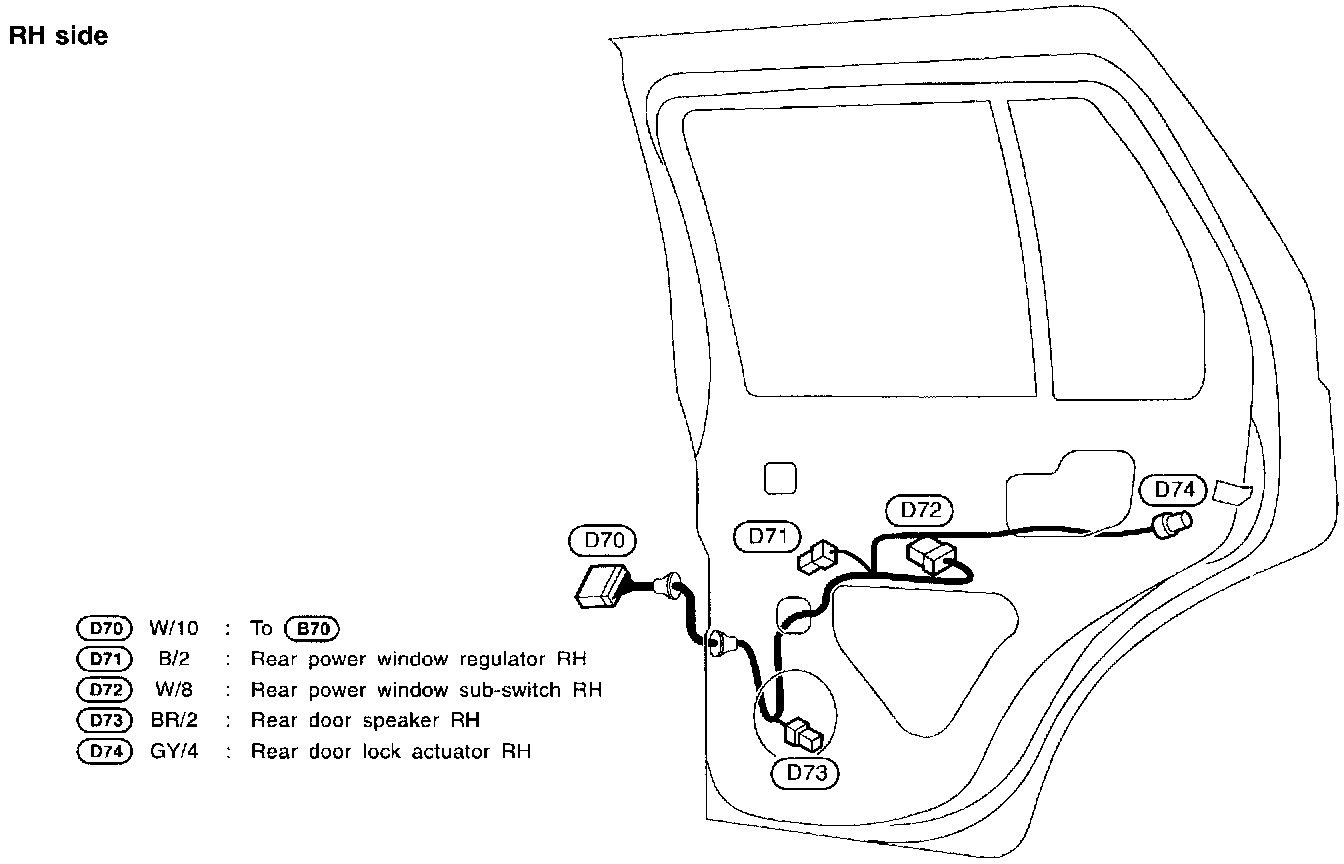

RH Side
