Combination Switch


For removal and installation of spiral cable, see "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)".

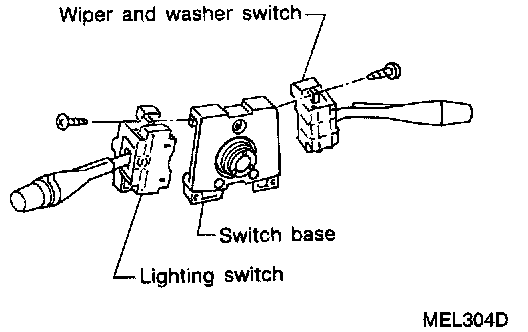

Combination Switch/Replacement:






- Each switch can be replaced without removing combination switch base.

Combination Switch/Replacement:

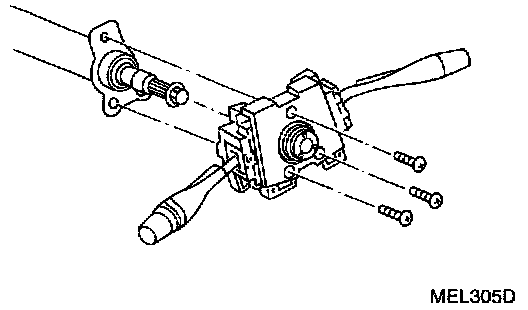

COMBINATION SWITCH BASE REMOVAL
- To remove combination switch base, remove base attaching screw and turn after pushing on it.
