For Canada

Schematic




(Part 1 of 3)

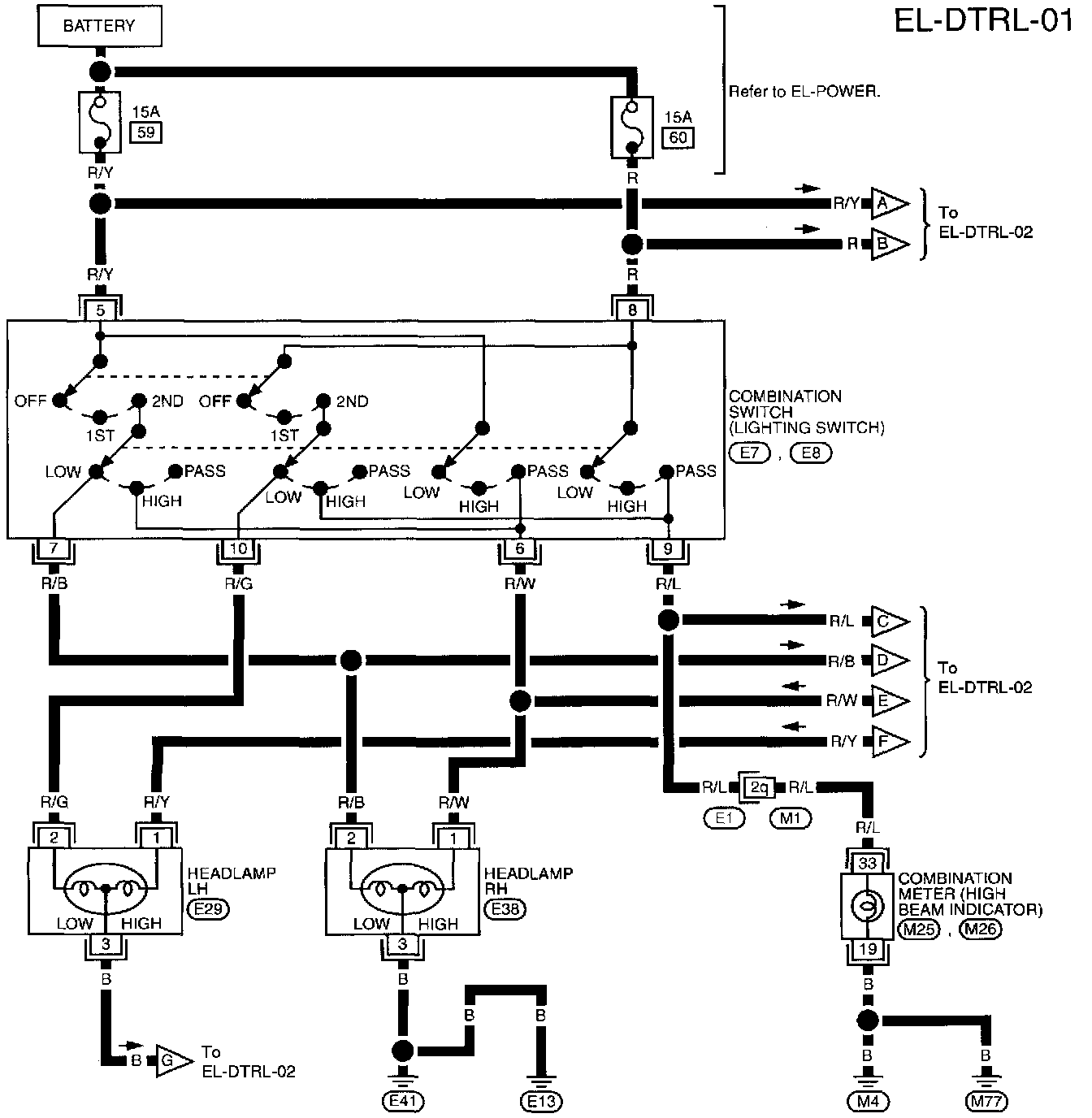

Combination Meter (High Beam Indicator)
Headlamp LH/RH
Lighting Switch




(Part 2 of 3)

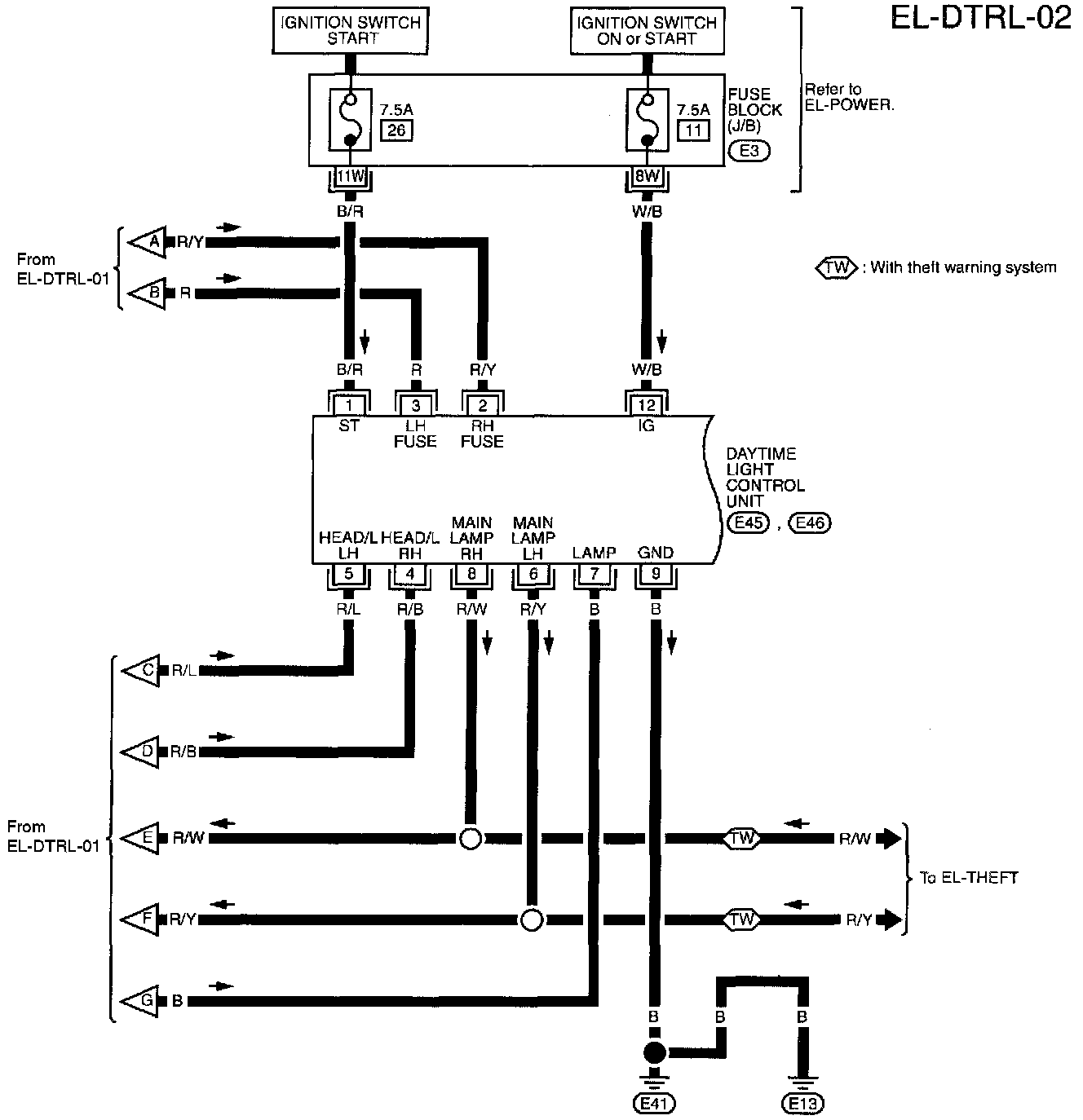

Daytime Light Control Unit
- Main Lamp RH/LH
Fuse Block (J/B)




(Part 3 of 3)
Alternator
Combination Meter (charge)
Daytime Light Control Unit
Parking Brake Switch

Circuit Diagrams

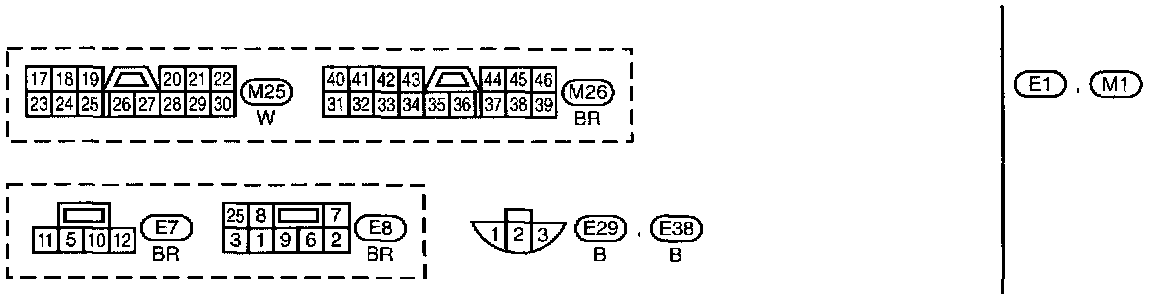

Circuit Connectors

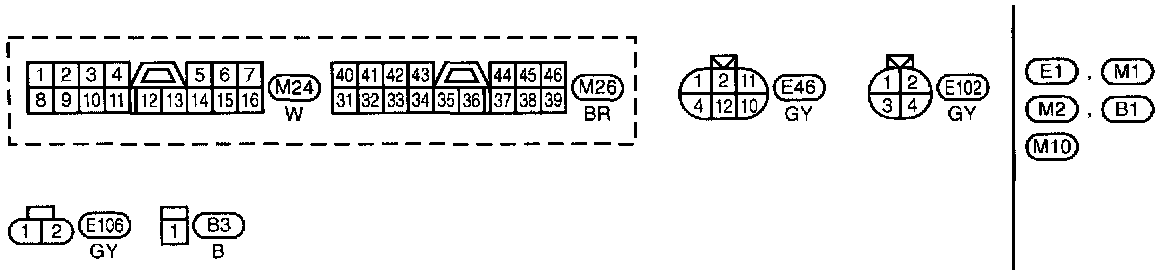

B1, E1, M1, M2 Body, Engine and Main Harness Terminal Arrangements

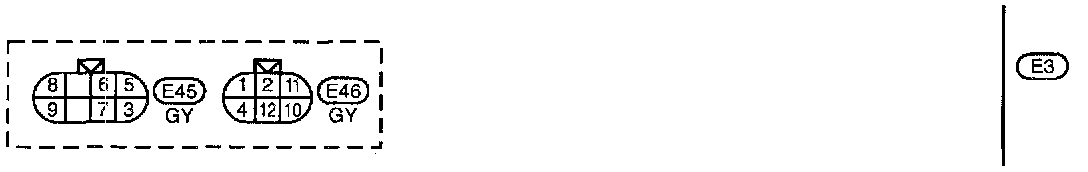

E3, M10 Terminal Arrangement
