For USA
Schematic

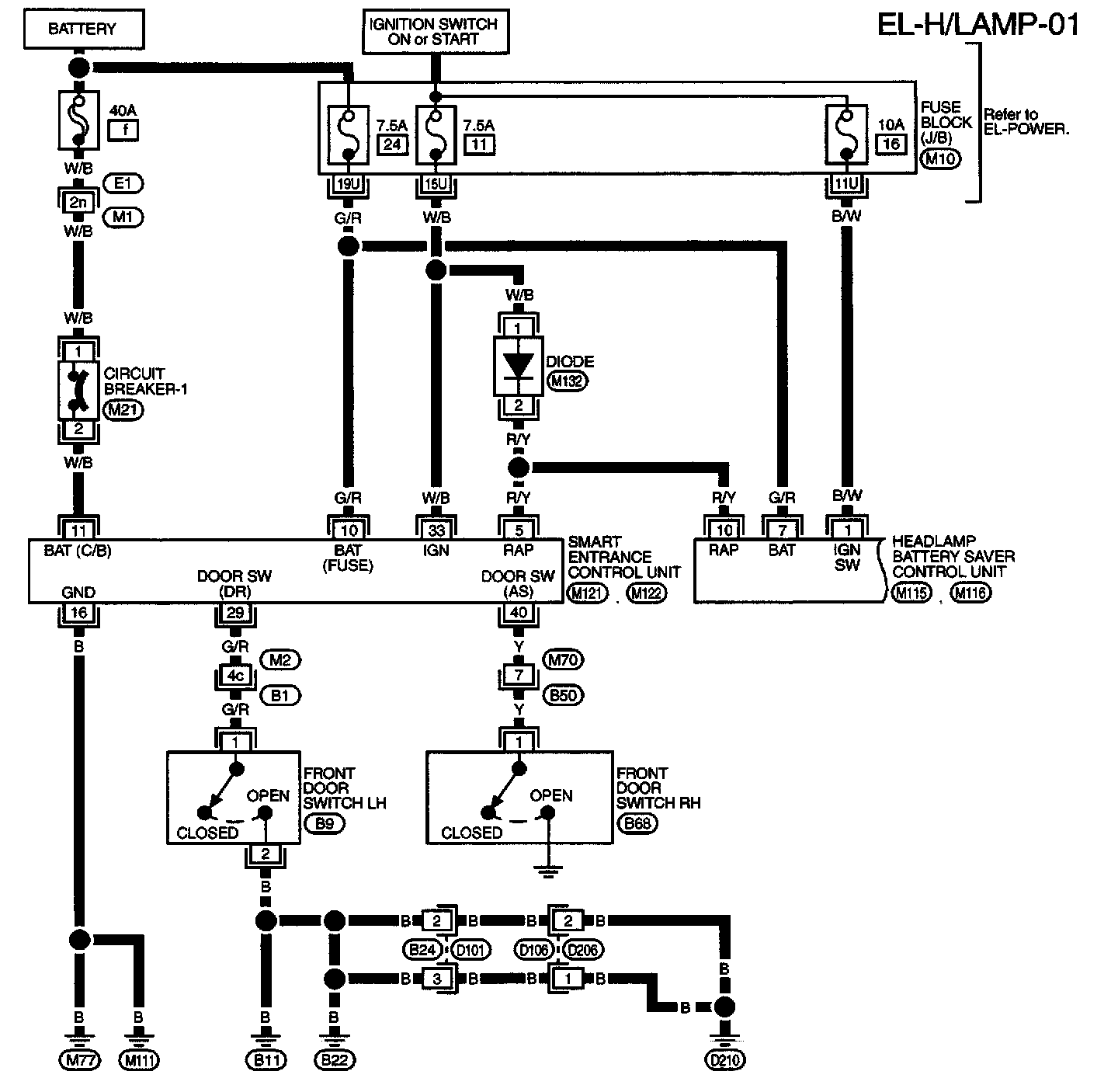

EL-H/Lamp-01:
(Part 1 of 3)
Fuse Block (J/B)
Headlamp Battery Saver Control Unit
Front Door Switch RH

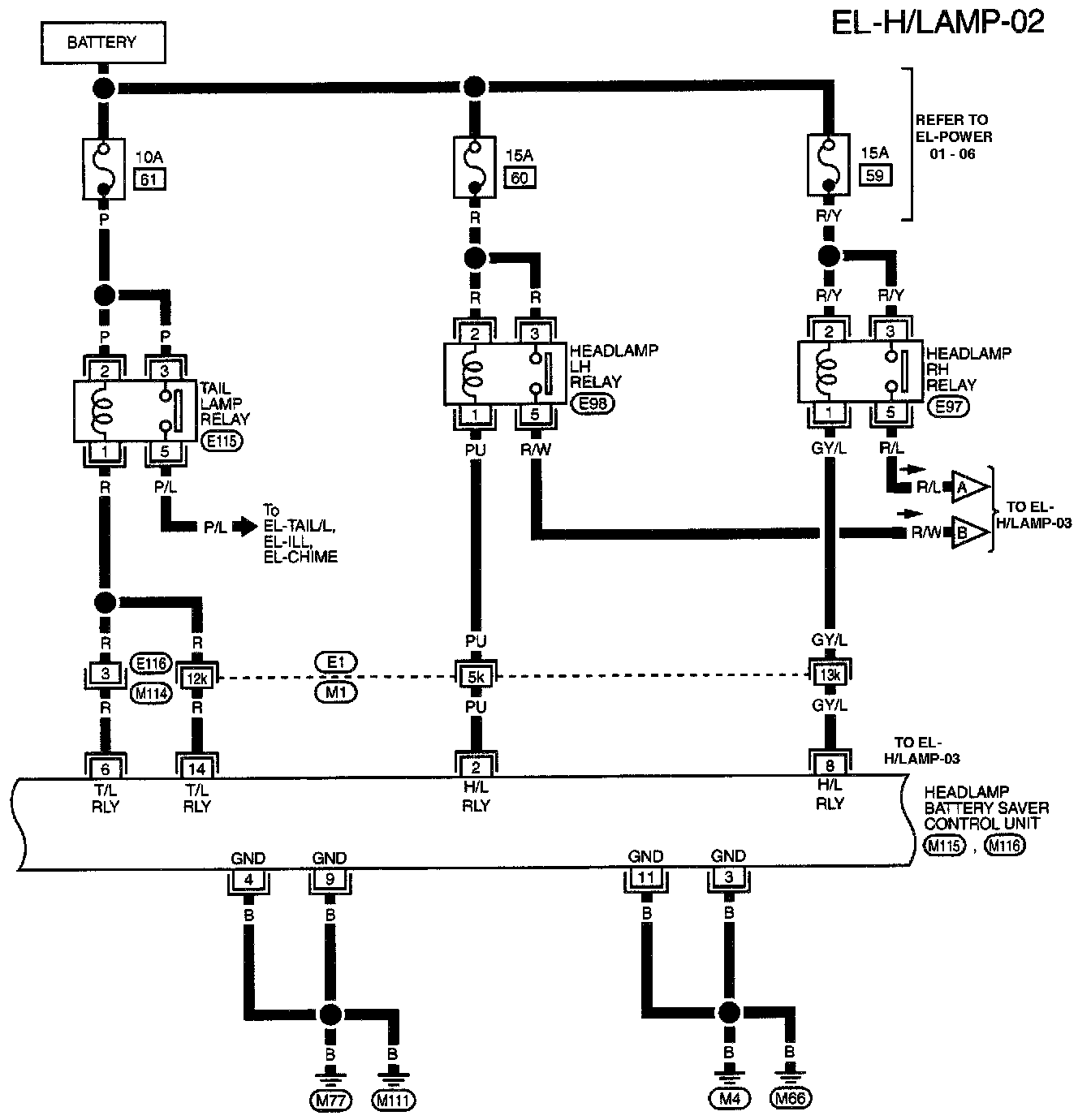

EL-H/Lamp-02:
(Part 2 of 3)
Headlamp Battery RH Relay
Headlamp Battery Saver Control Unit

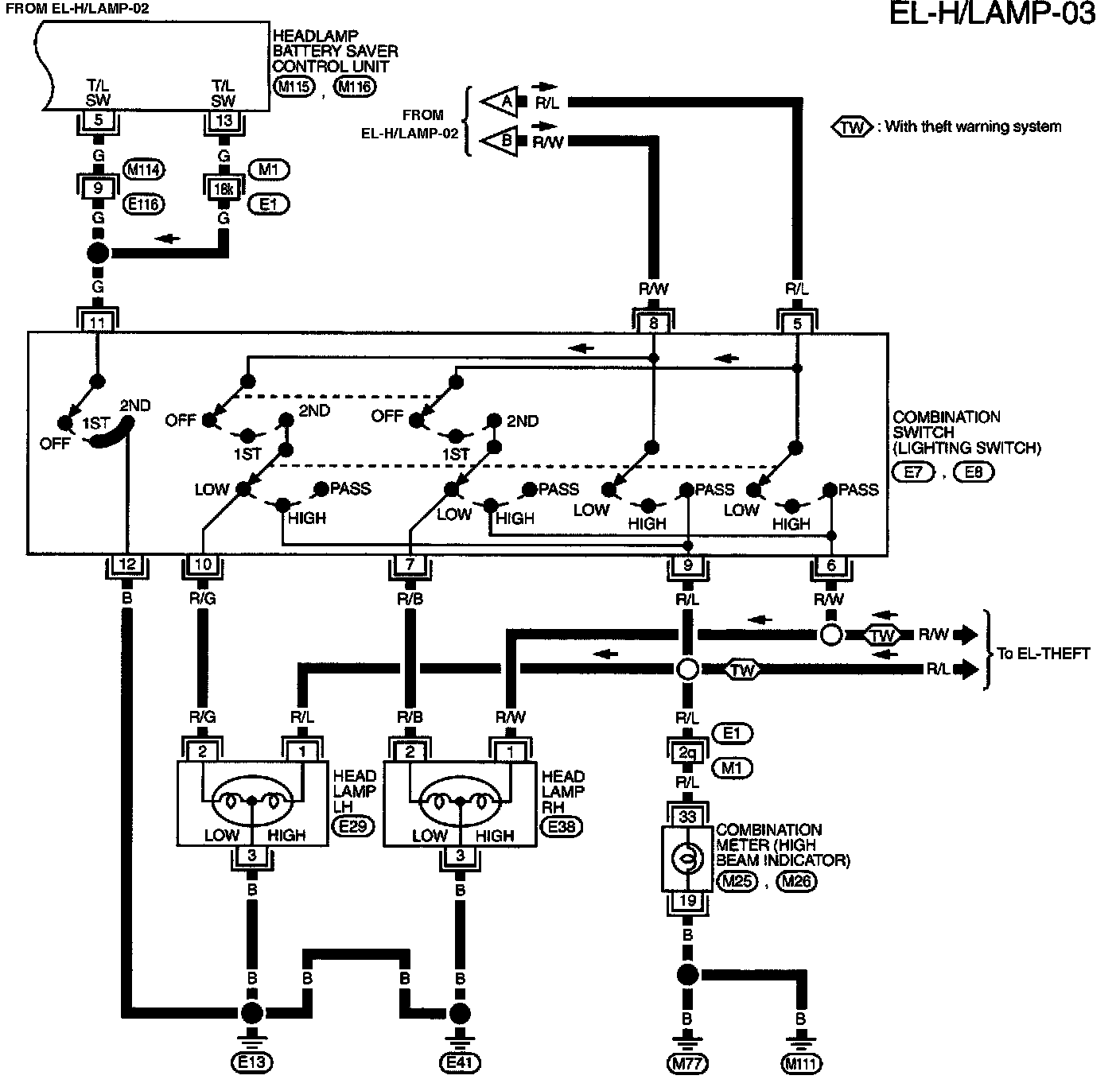

EL-H/Lamp-03:
(Part 3 of 3)
Headlamp Battery Saver Control Unit
Combination Switch(Lighting Switch)
Combination Meter (High Beam Indicator)

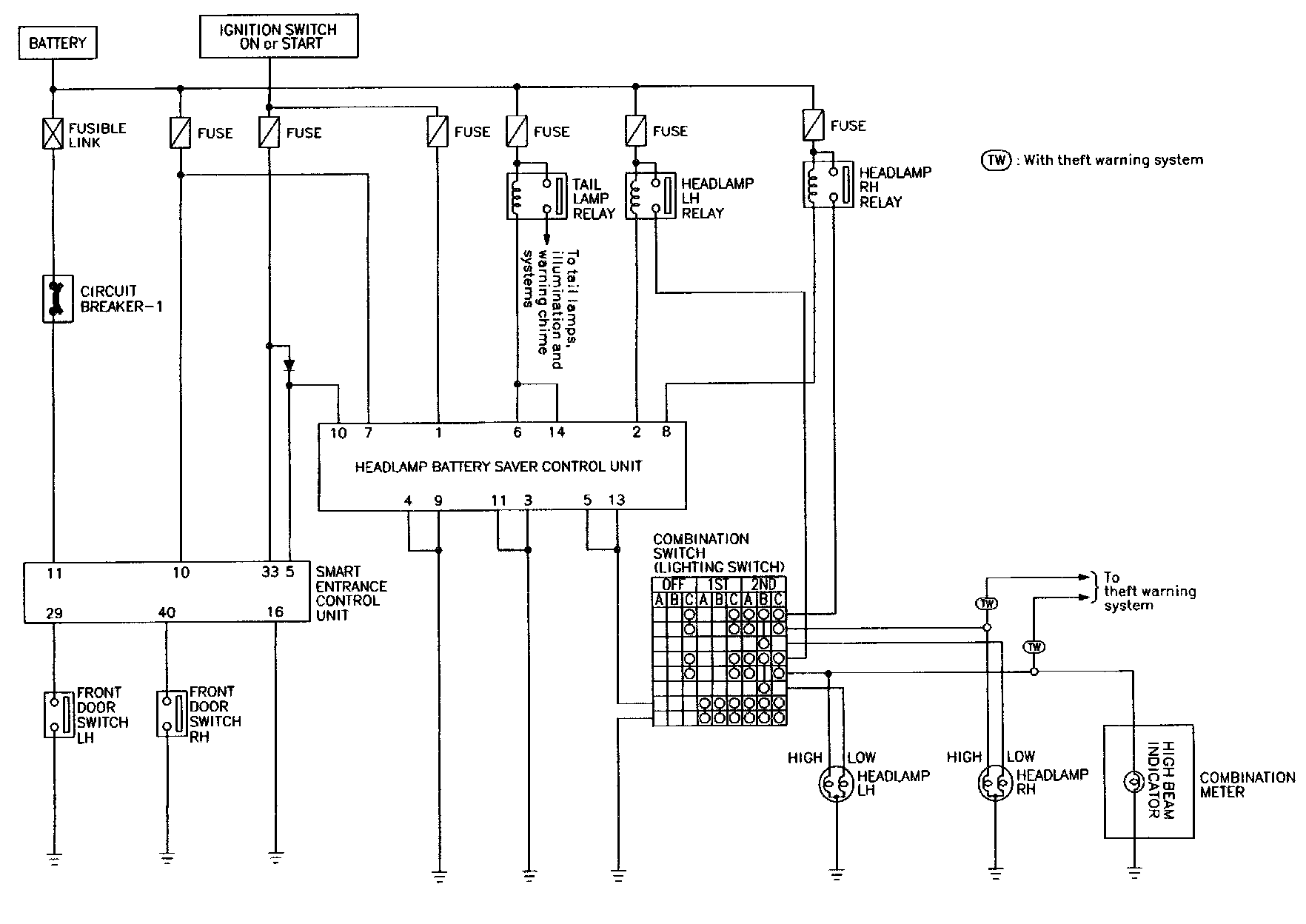

Circuit Diagram
Circuit Connectors
Main Harness, Engine Room, And Body Harness Connector Views:
Fuse Block J/B Connector Views:
B1, E1, M1, M2, M10 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
