Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Chart
>>

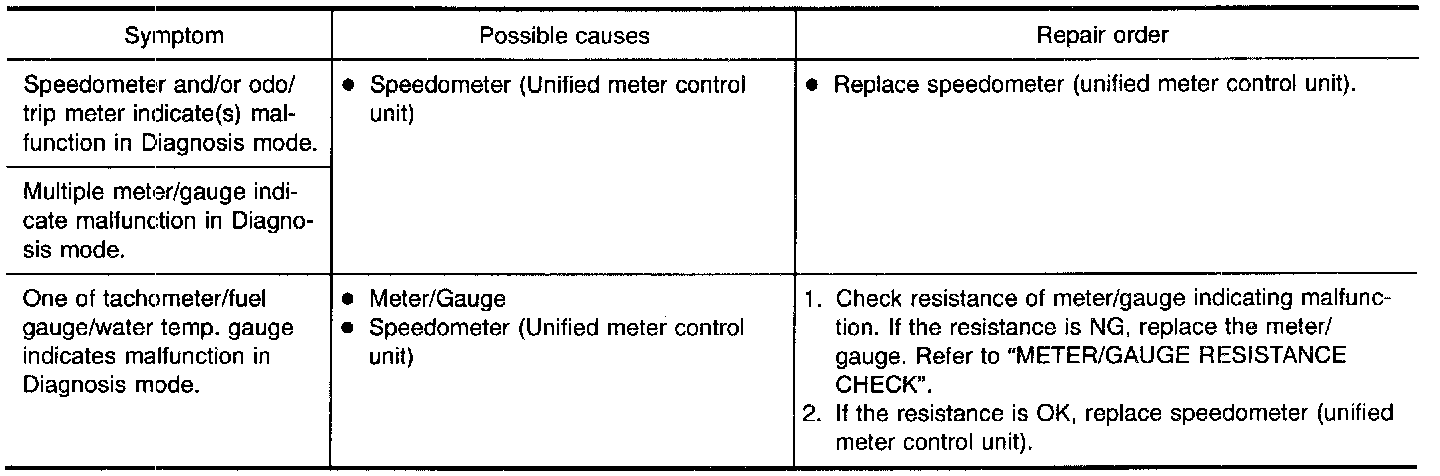

Symptom Chart 1 (Malfunction Is Indicated In Diagnosis Mode)
Symptom Chart 1 (Malfunction Is Indicated In Diagnosis Mode)
Before starting trouble above, perform PRELIMINARY CHECK.
Preliminary Check
