Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Electrical Components Inspection
>>
Vehicle Speed Sensor Signal Check
Vehicle Speed Sensor Signal Check
1.
Remove vehicle speed sensor from transmission.
2.

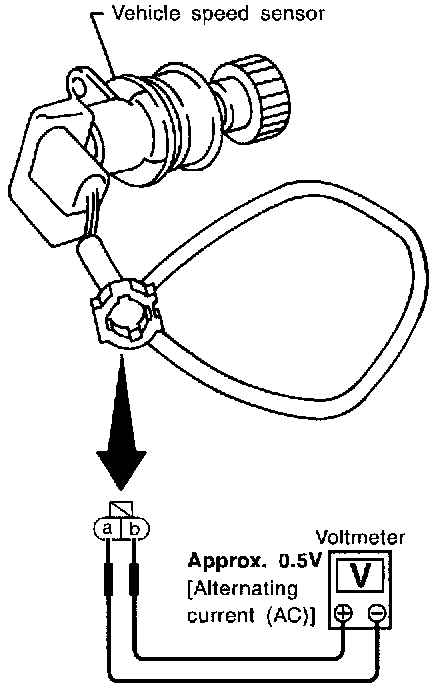

Turn vehicle speed sensor pinion quickly and measure voltage across a and b.
