Meter/Gauge Resistance Check




1. Disconnect FPC connector. Refer to "Flexible Print Circuit (FPC)".

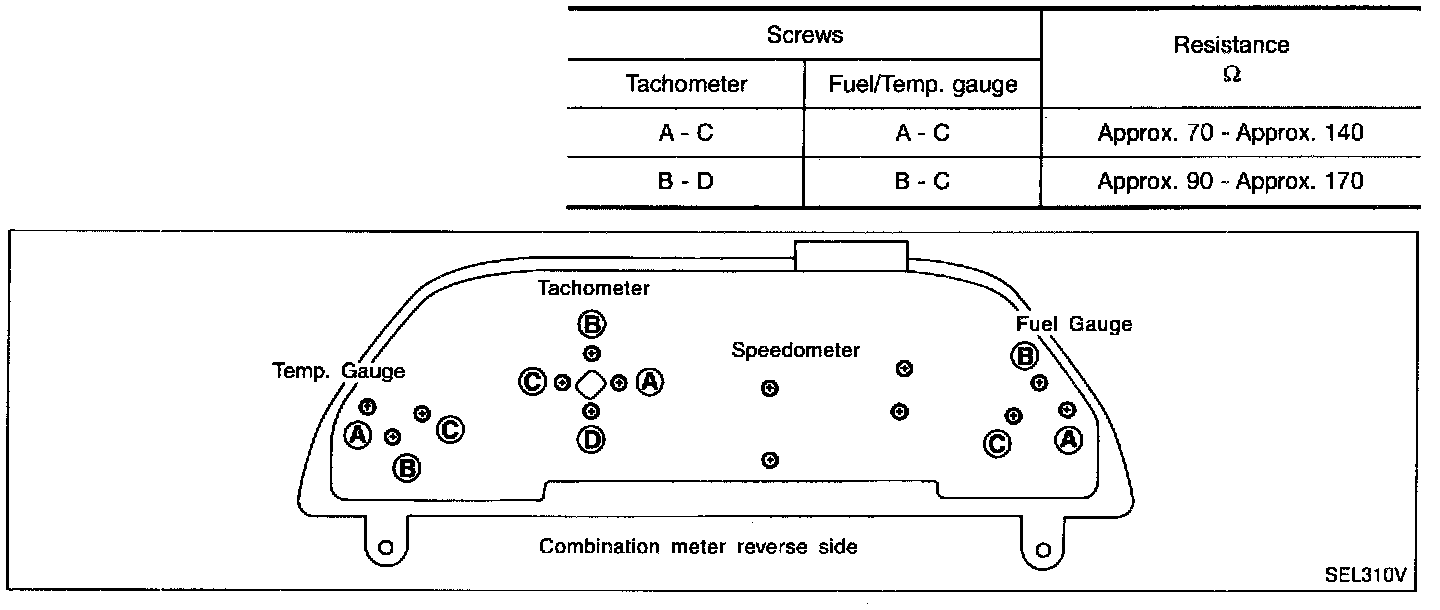

2. Check resistance between installation screws of meter/gauge.
