Electrical Components Inspection

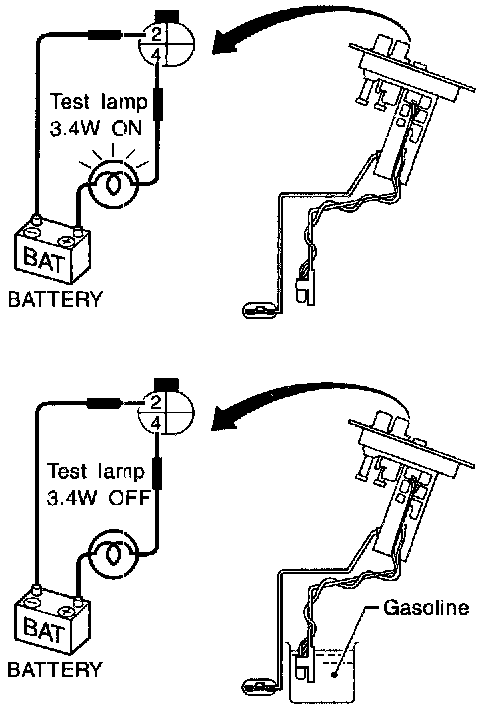

FUEL WARNING LAMP SENSOR CHECK




- It will take a short time for the bulb to light.

OIL PRESSURE SWITCH CHECK

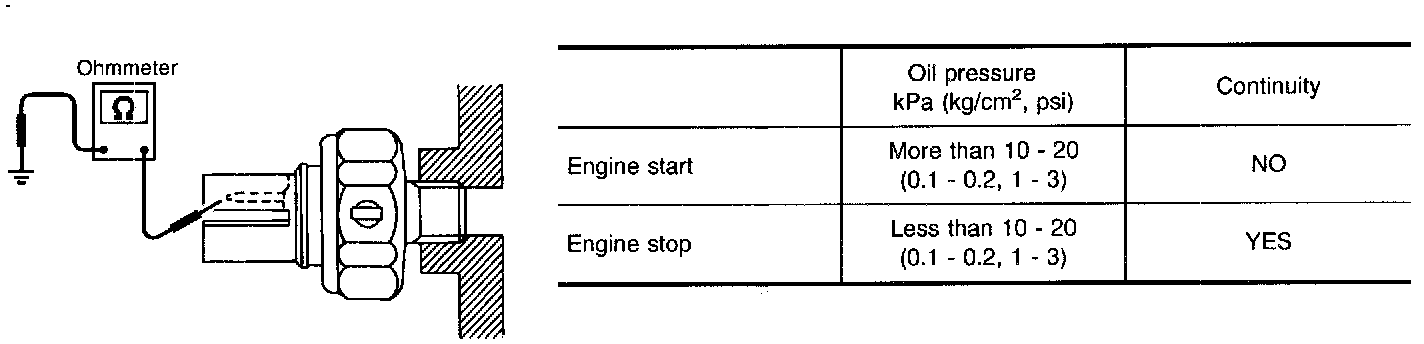

Check the continuity between the terminals of oil pressure switch and body ground.

DIODE CHECK







- Check continuity using an ohmmeter.
- Diode is functioning properly if test results are as shown in the diagram.

NOTE:
Specification may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual for the tester to be used.
- Diodes for warning lamps are built into the combination meter printed circuit.
- For diode location, refer to Combination Meter
