To VIN # 350000

Power is supplied at all times
- through 10 A fuse [No. 61, located in the fuse block (J/B)]
- to lighting switch terminal 11.
The lighting switch must be in the 1ST or 2ND position for illumination.
The illumination control switch that controls the amount of current to the illumination system. As the amount of current increases, the illumination becomes brighter.

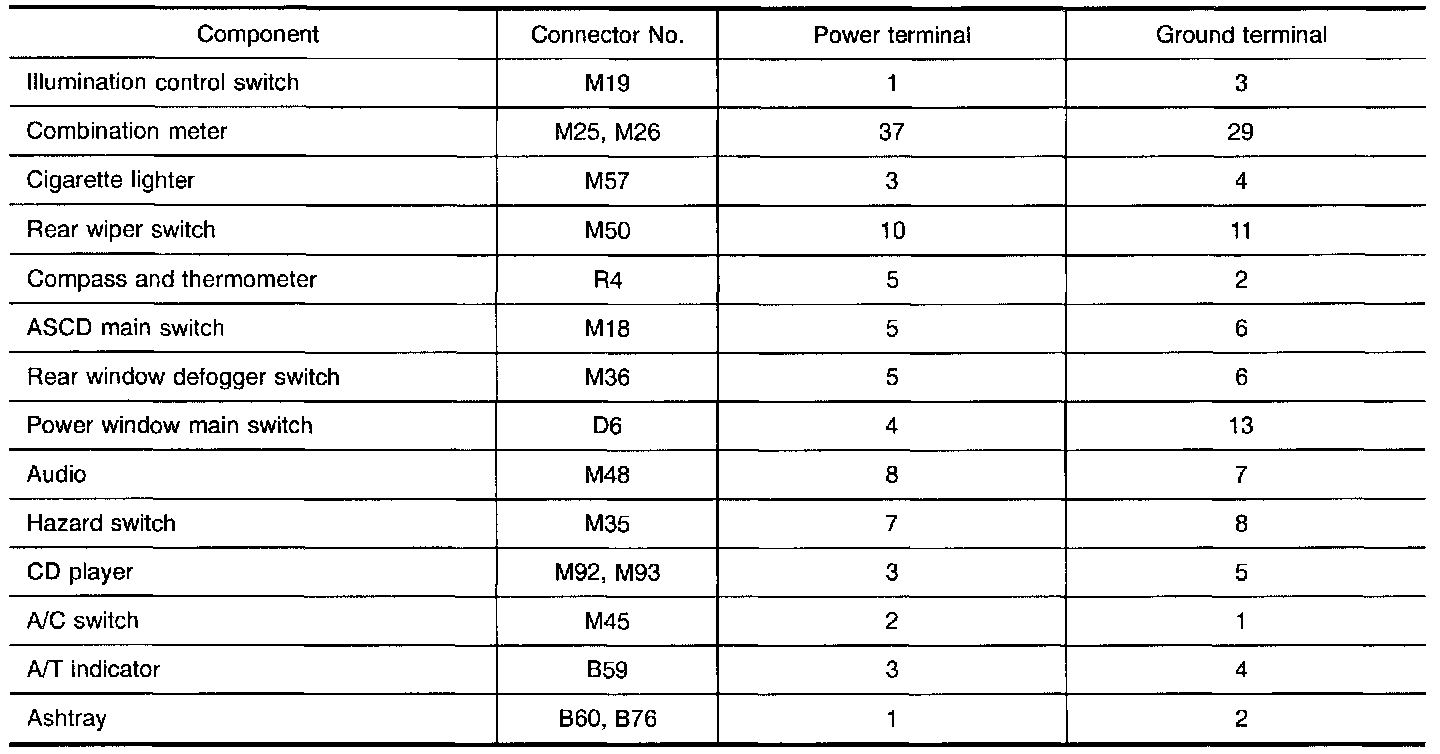

The above diagram chart shows the power and ground connector terminals for the components included in the illumination system.
The ground for all of the components except for compass and thermometer and ashtray are controlled through terminals 2 and 3 of the illumination control switch and body grounds M4 and M77.
