Blower Motor

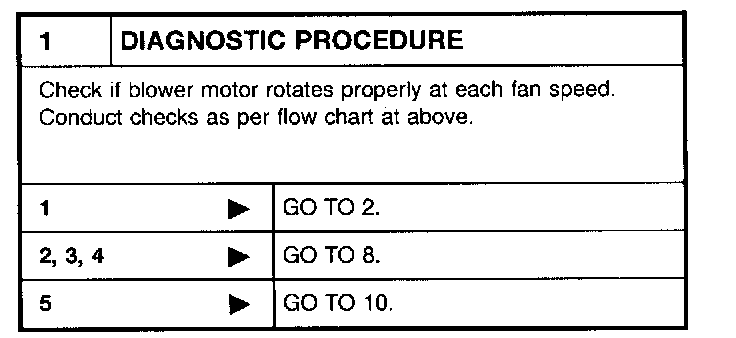

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR

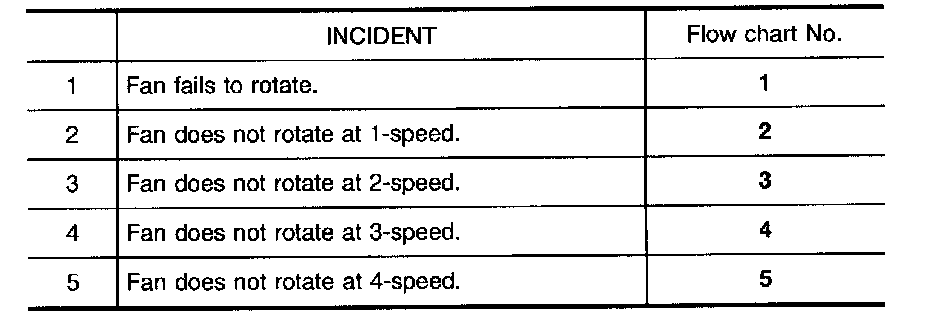

Symptom:
- Blower motor does not rotate at all.

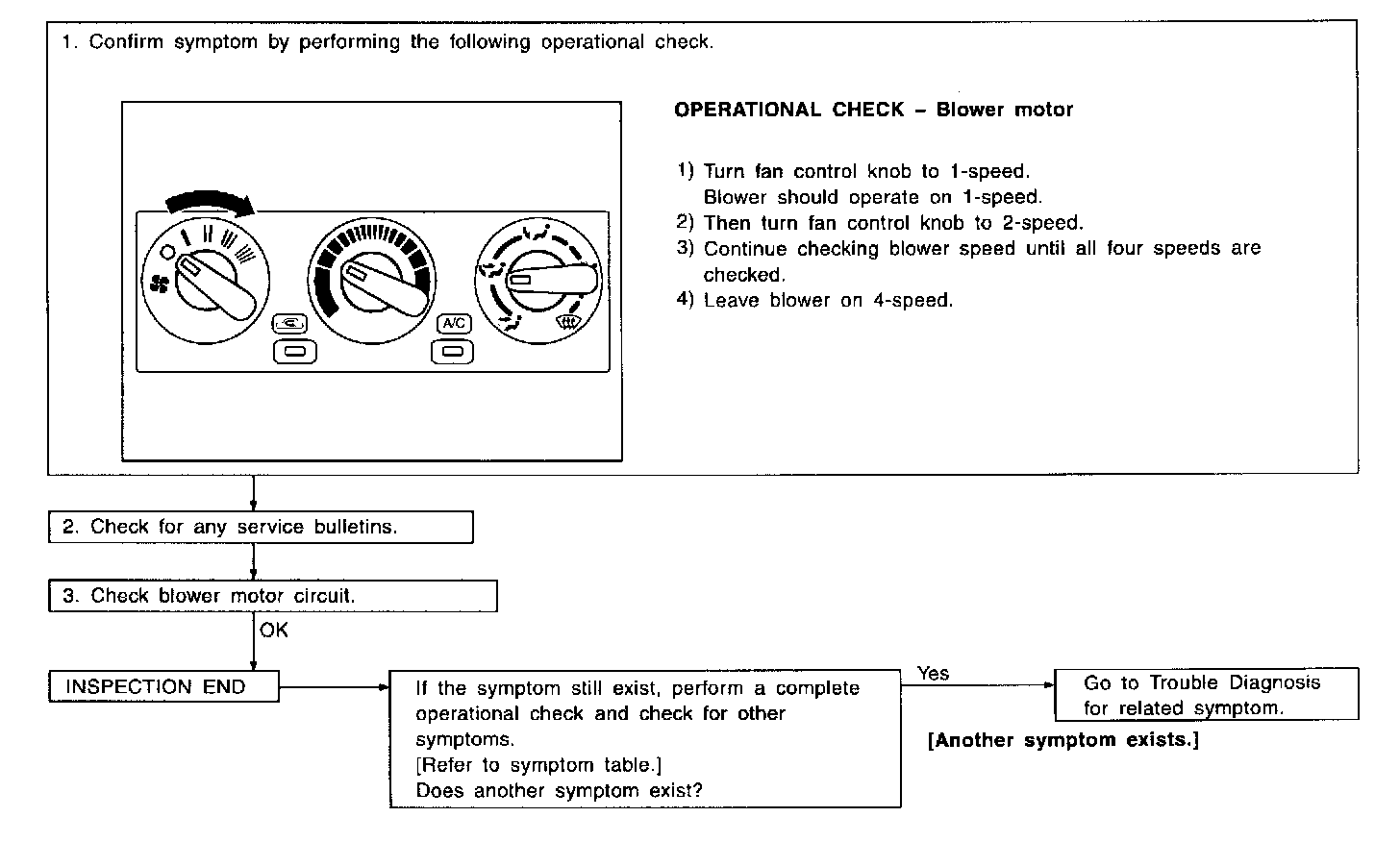

Inspection Flow

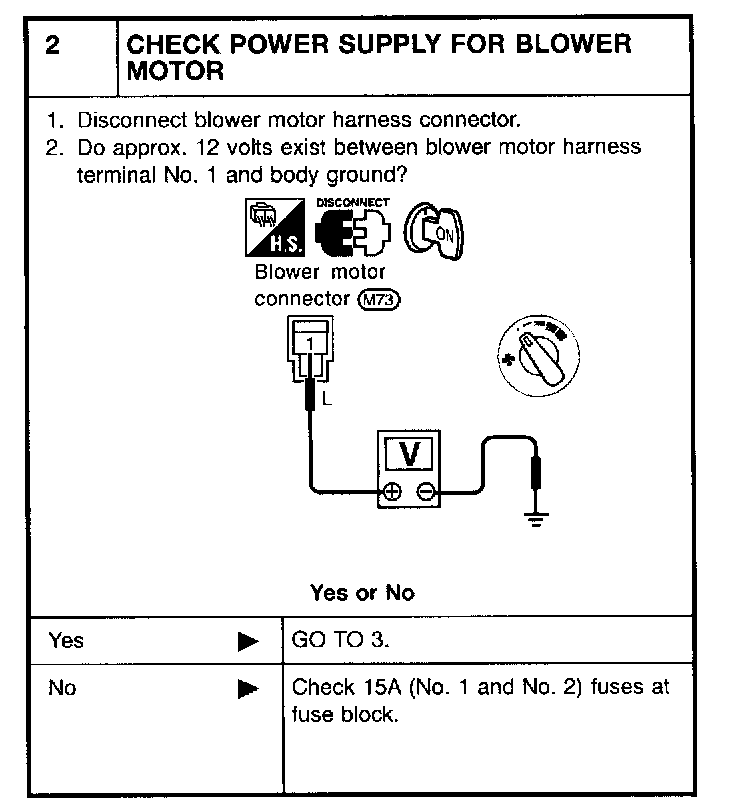

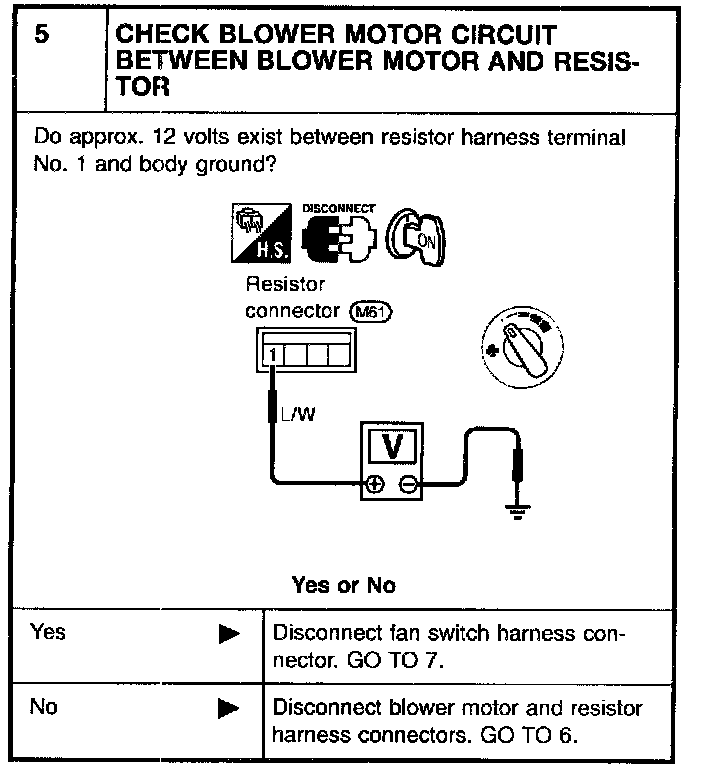

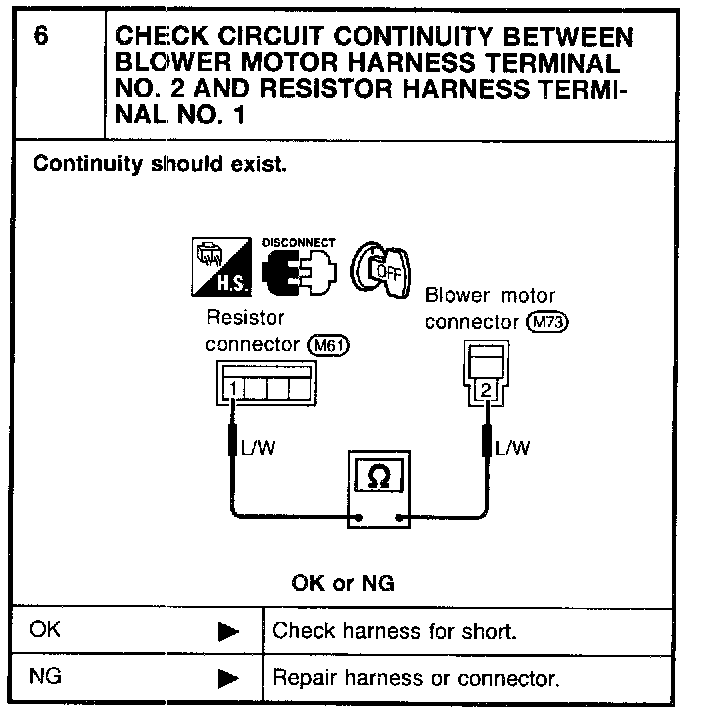

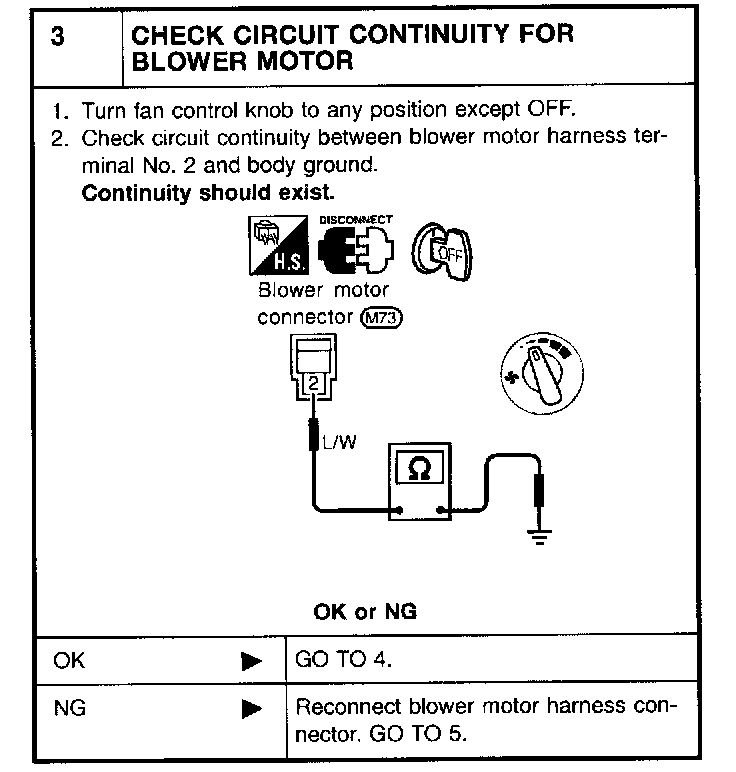

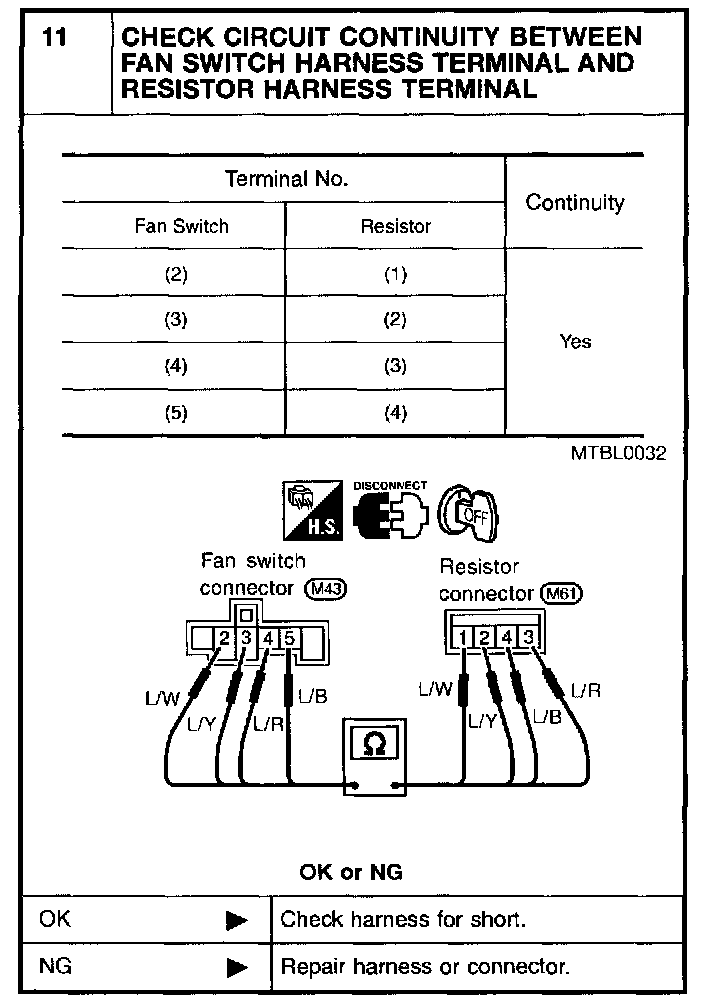

BLOWER MOTOR CIRCUIT
