Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> To VIN # 350000 >> Manual A/C >> Trouble Diagnosis Procedures >> Air Outlet

Air Outlet

TROUBLE DIAGNOSIS PROCEDURE FOR AIR OUTLET
Symptom:
- Air outlet does not change.

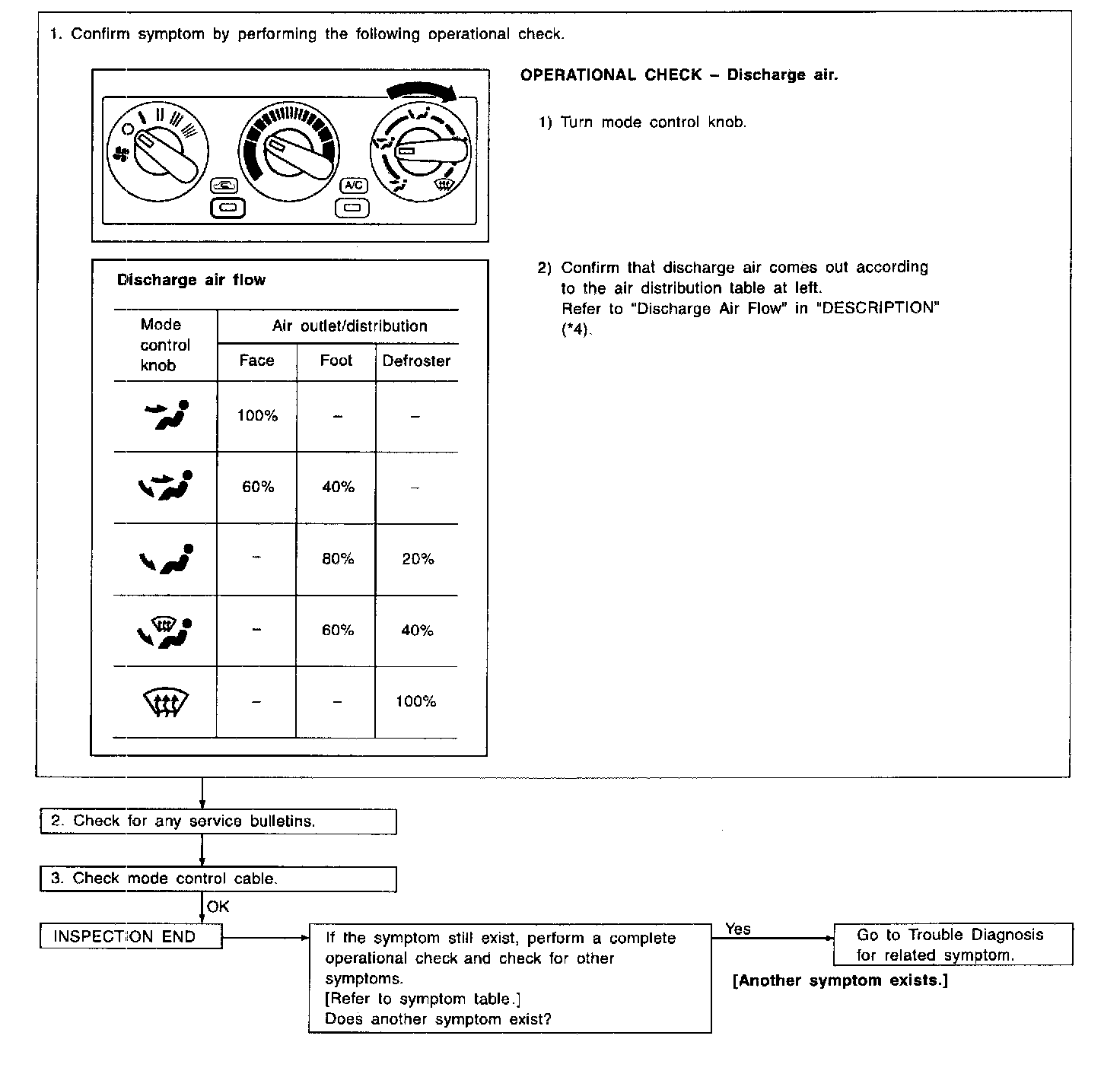

Inspection Flow
