Sunload Sensor

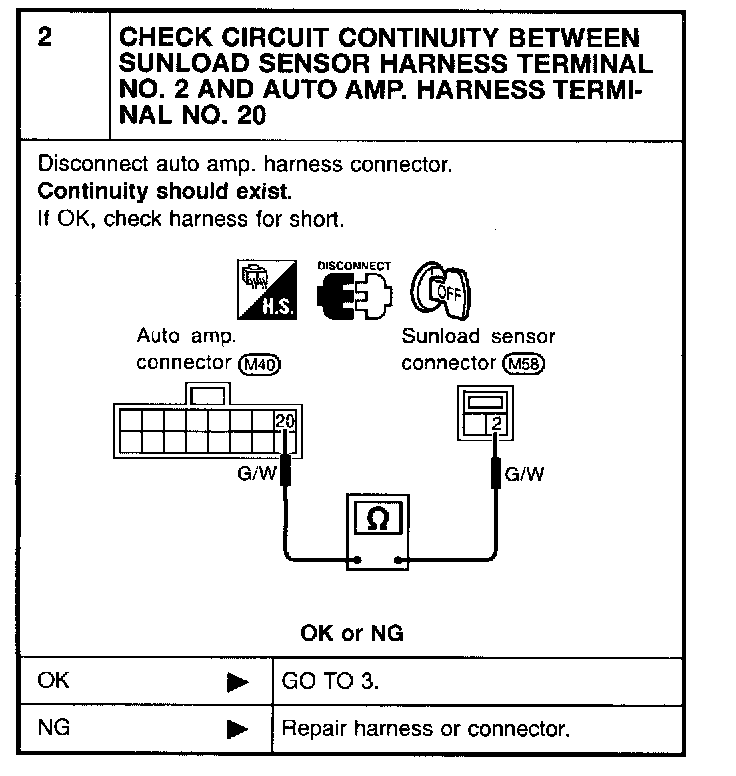

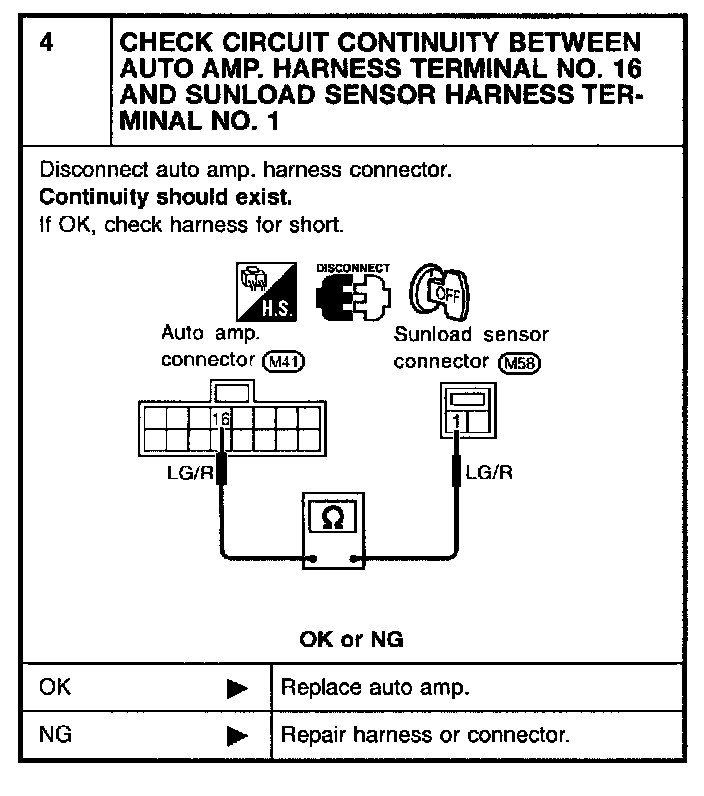

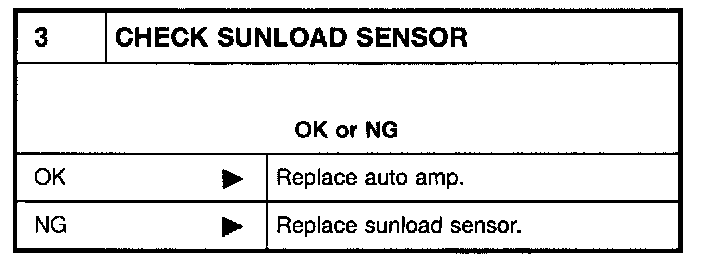

TROUBLE DIAGNOSIS PROCEDURE FOR SUNLOAD SENSOR CIRCUIT
Symptom:
- Sunload sensor circuit is open or shorted.
