Starting Fan Speed Control

TROUBLE DIAGNOSIS PROCEDURE FOR STARTING FAN SPEED CONTROL
Symptom:
- Starting fan speed control does not operate.

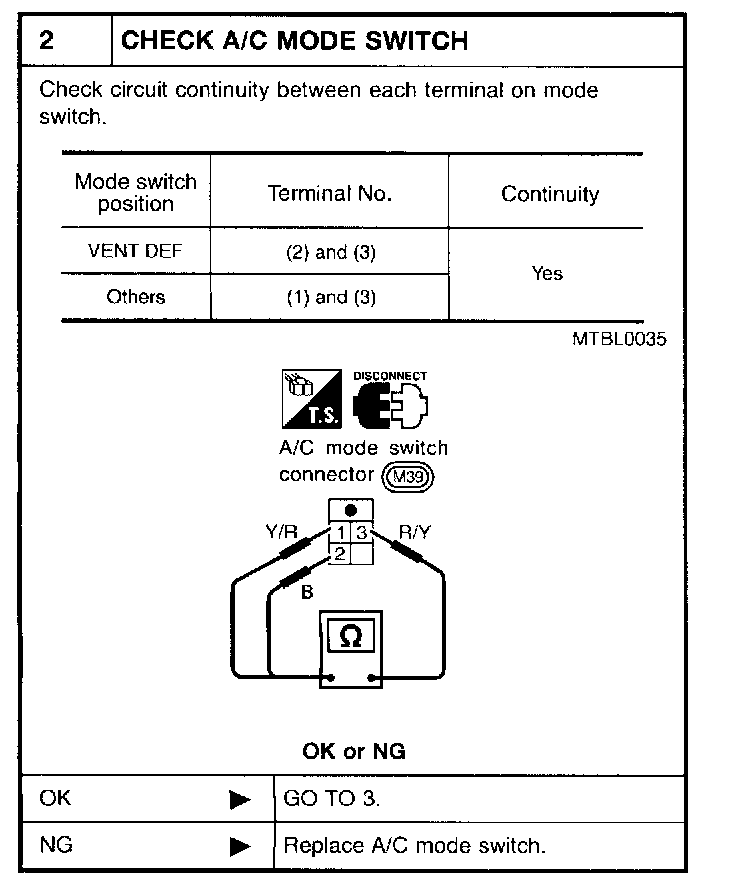

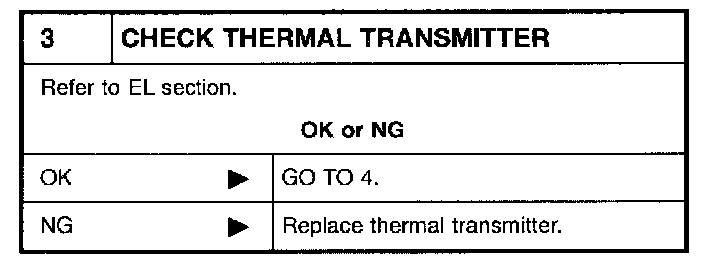

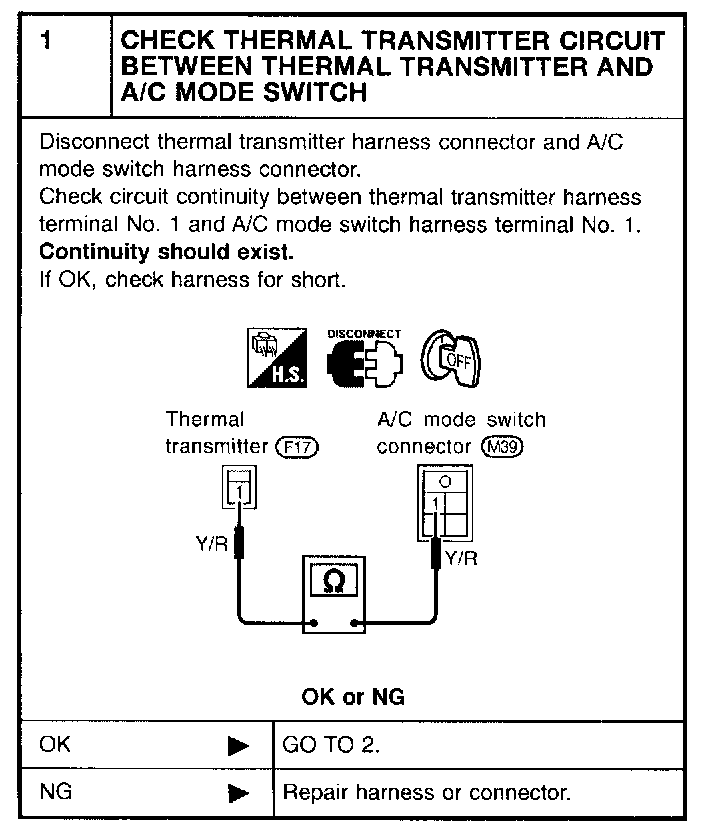

Inspection Flow

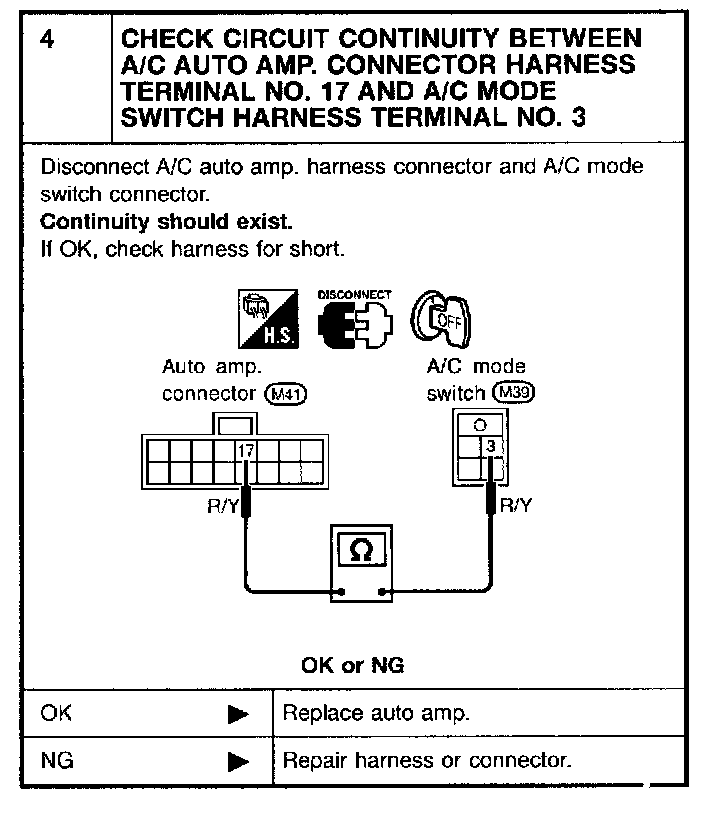

STARTING FAN SPEED CONTROL CIRCUIT
Symptom:
- Starting fan speed control does not operate.
