Magnet Clutch

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH
Symptom:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

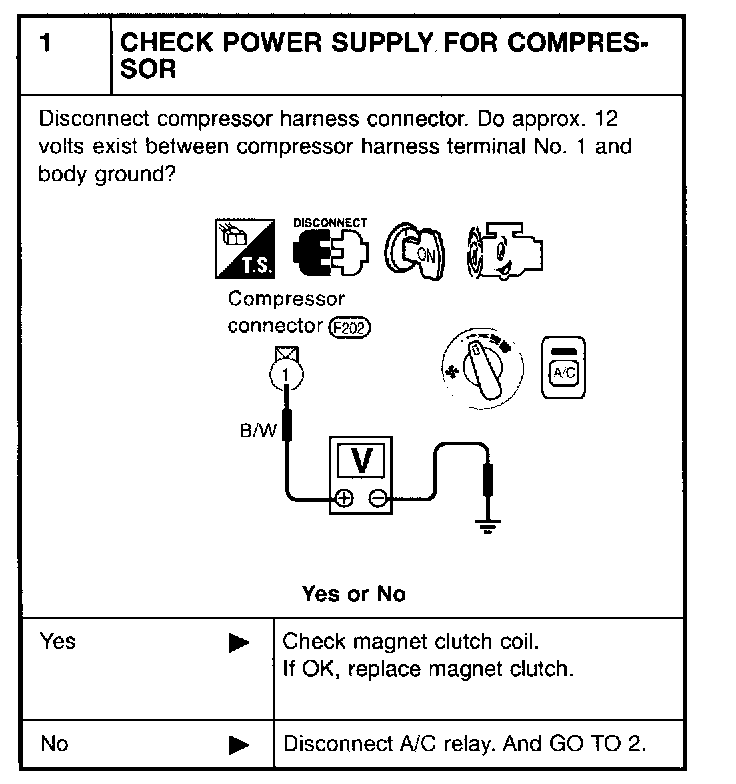

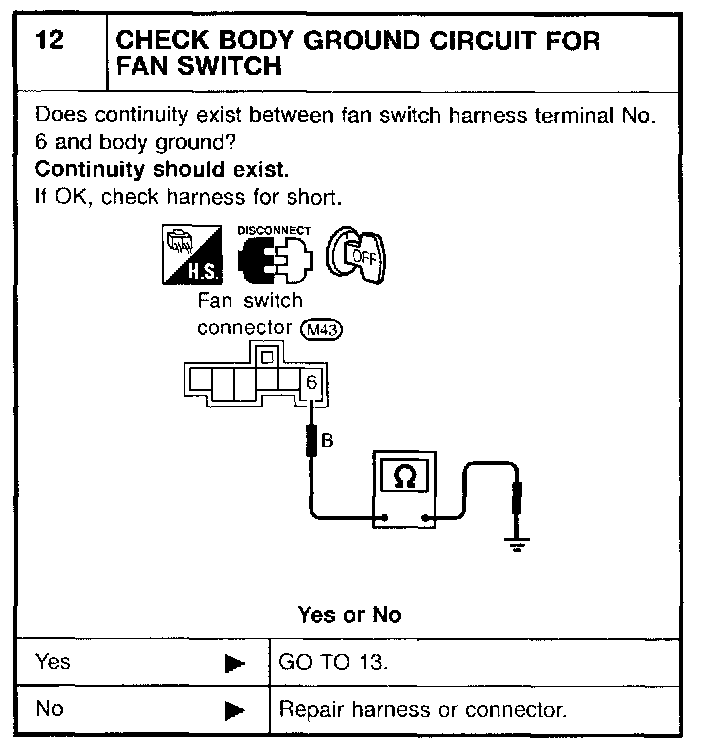

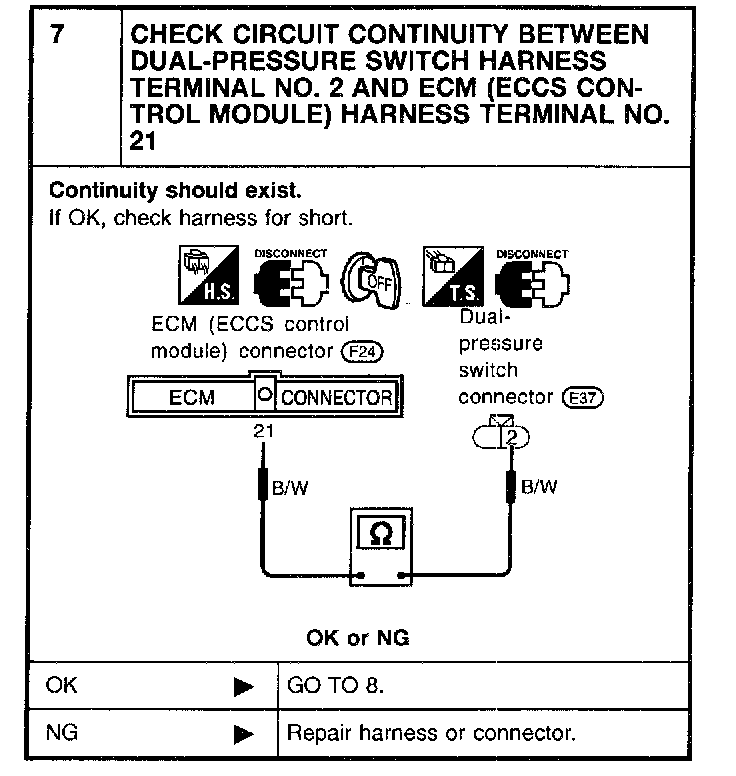

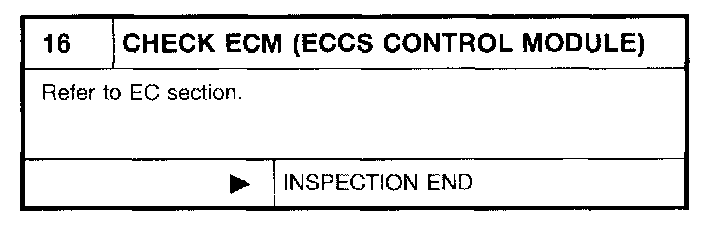

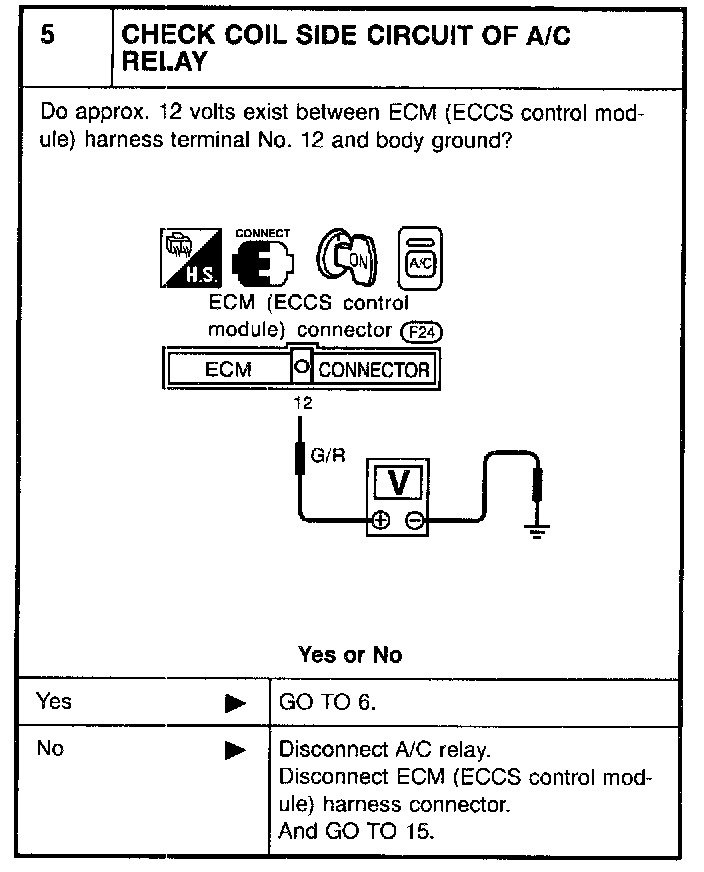

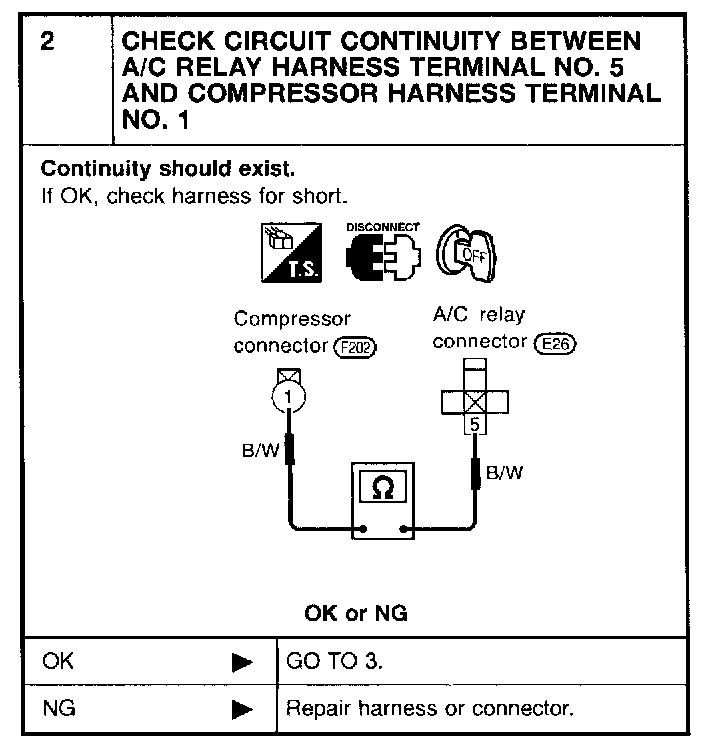

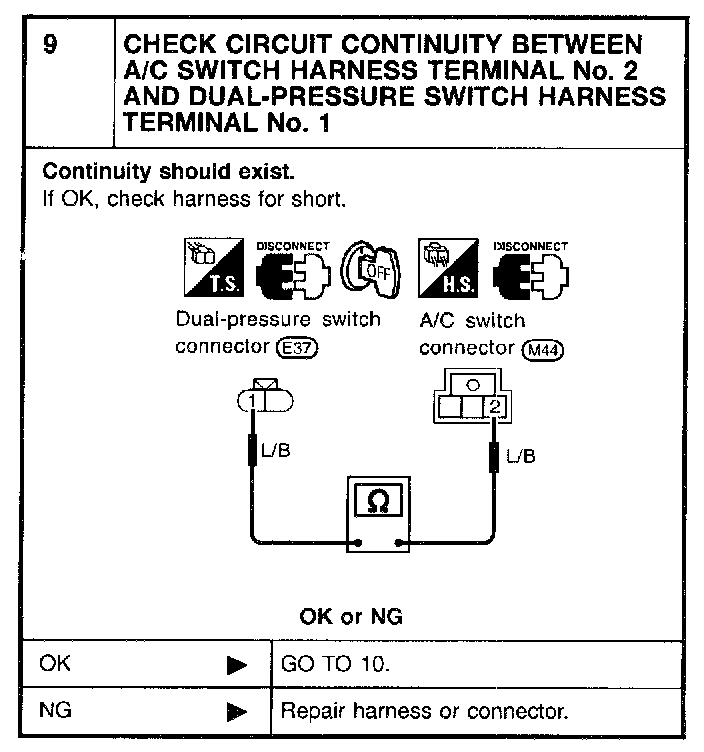

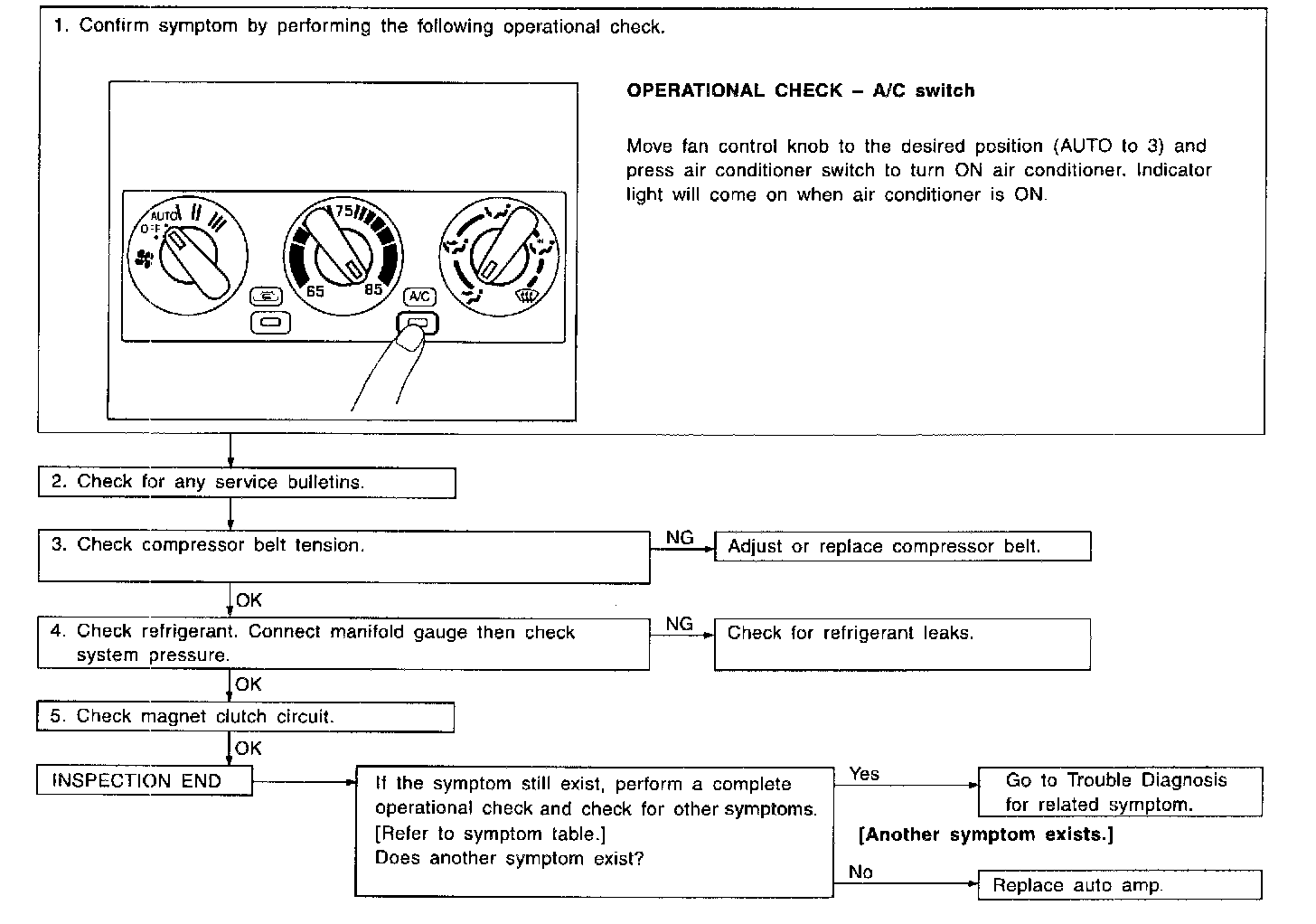

Inspection Flow

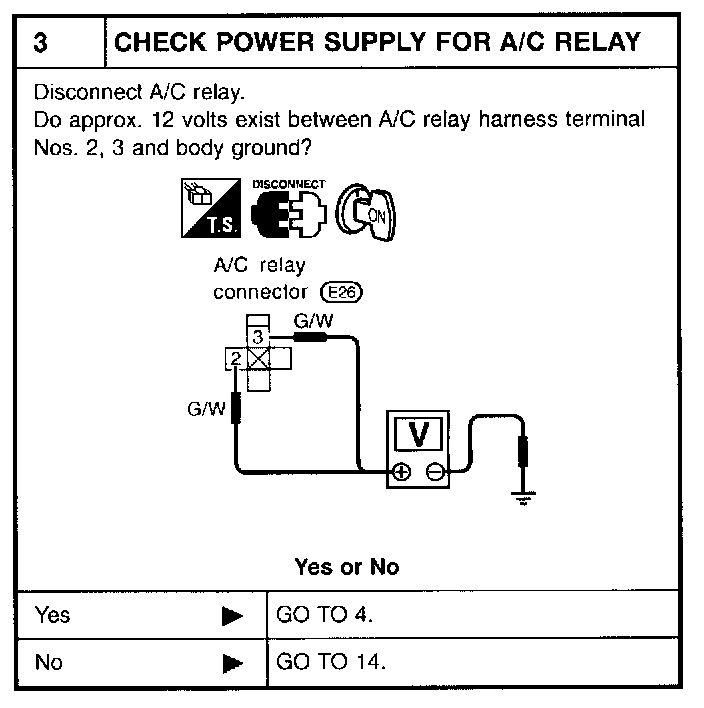

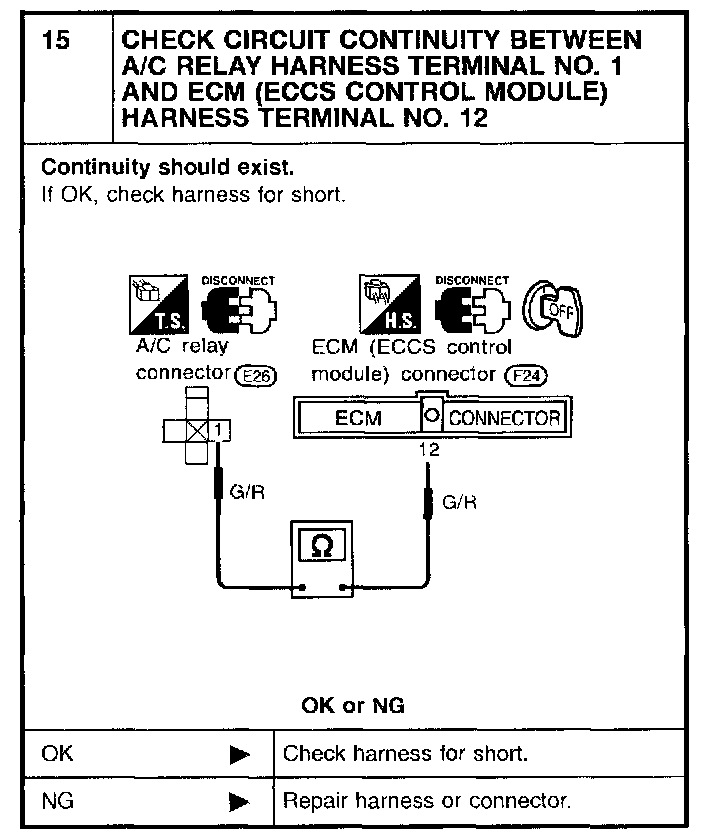

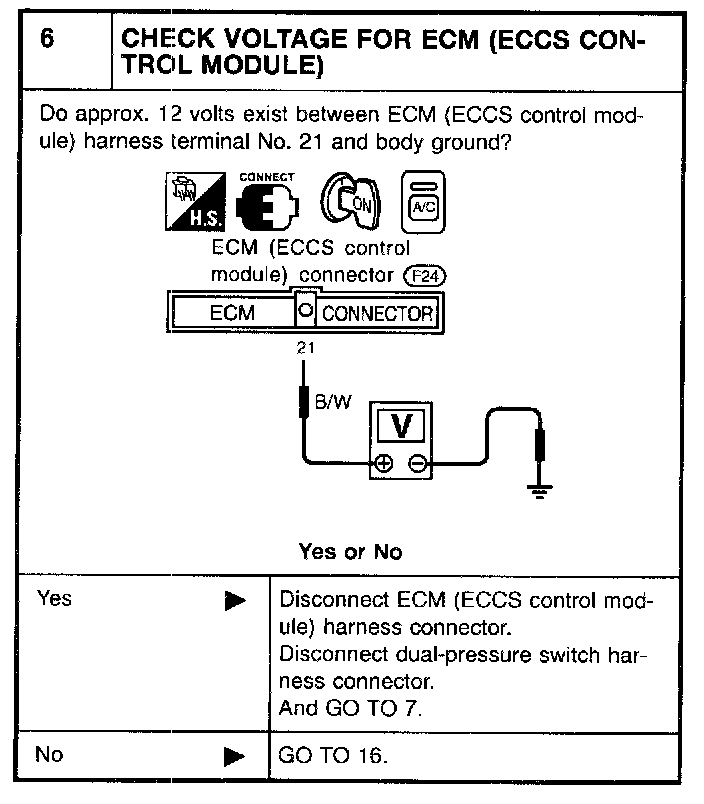

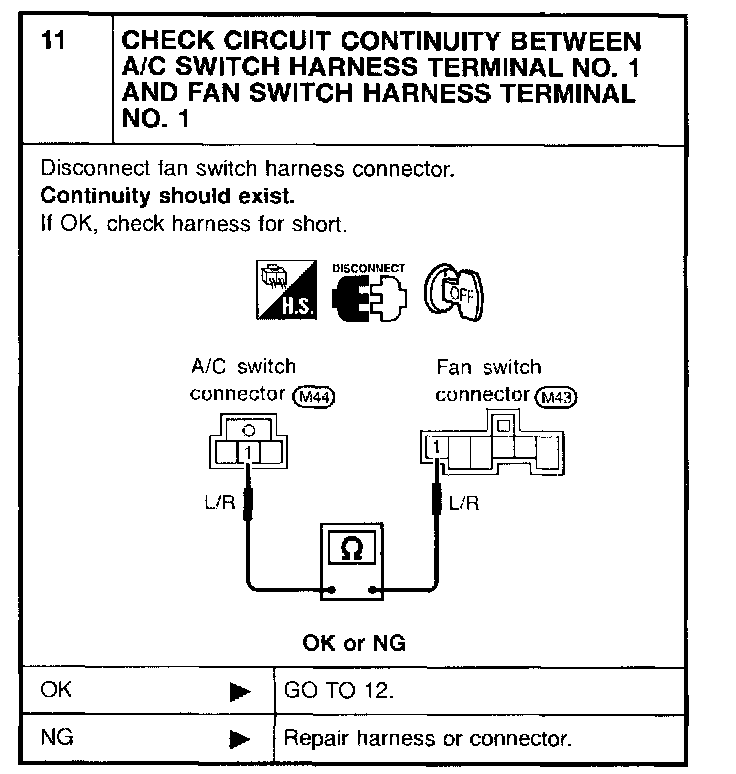

MAGNET CLUTCH CIRCUIT
Symptom:
- Magnet clutch does not engage when A/C switch and fan switch are ON.
