Intake Door Motor

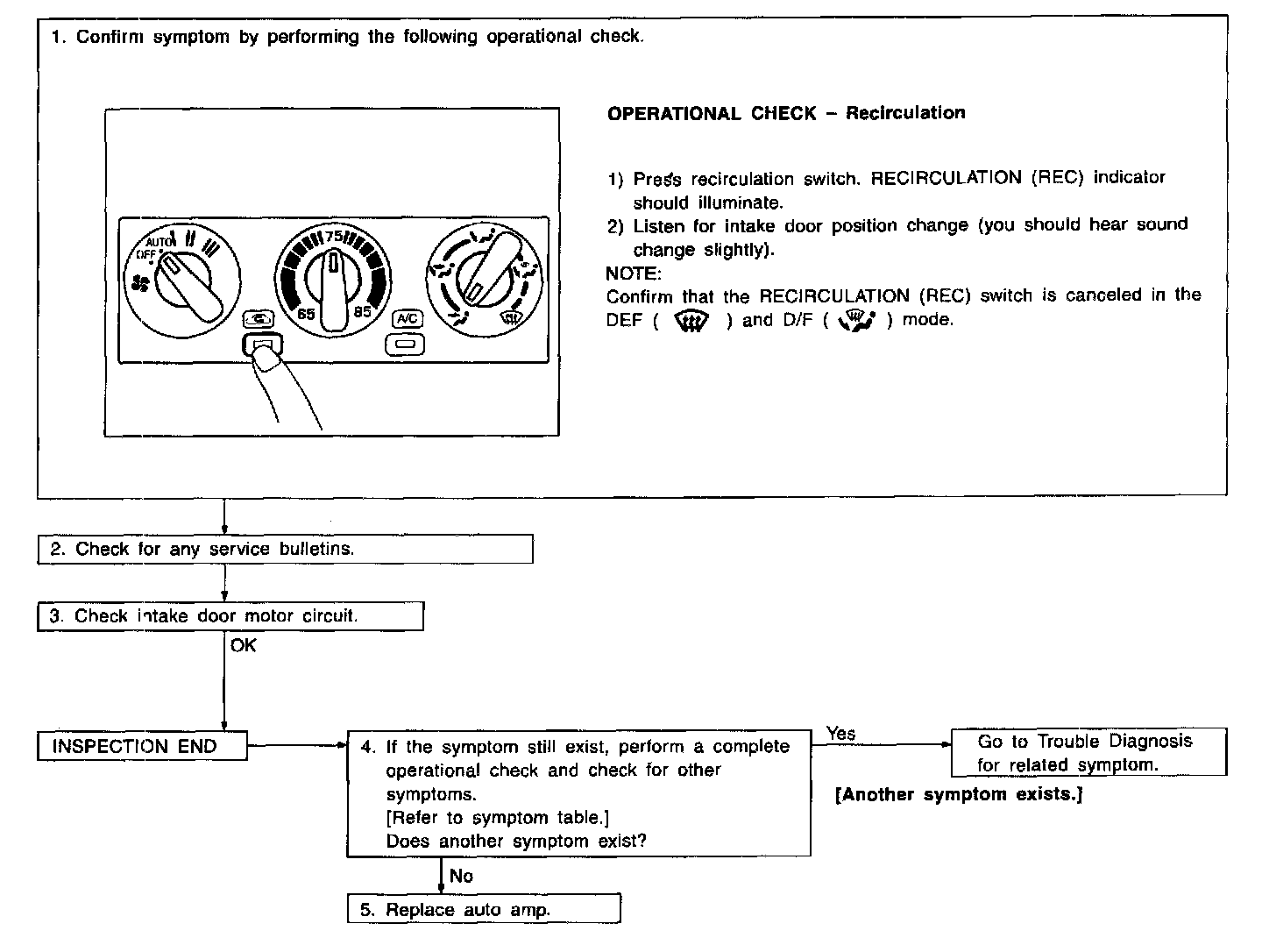

TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR MOTOR CIRCUIT
Symptom:
- Intake door does not change in VENT, B/L or FOOT mode.





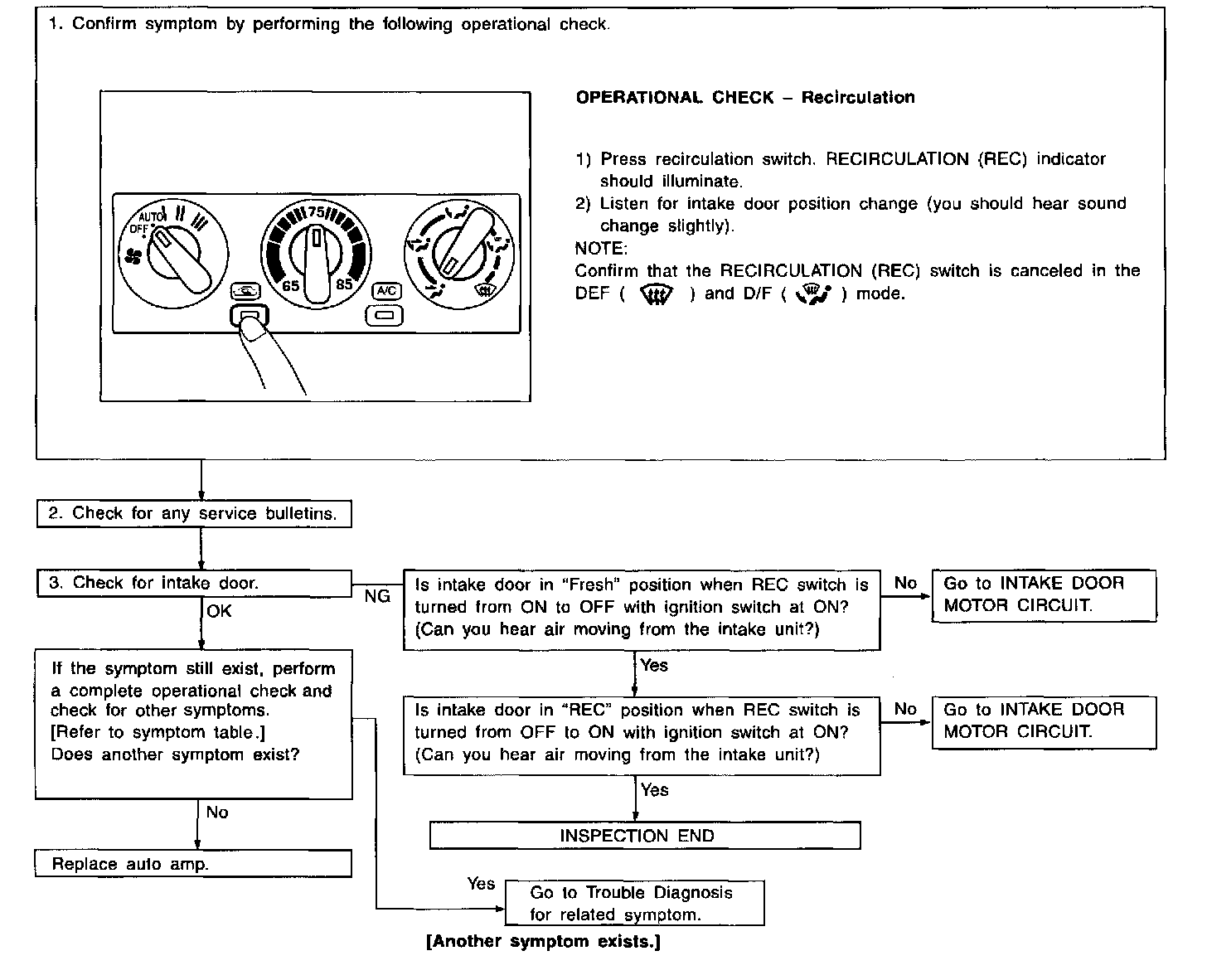

Inspection Flow

TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR
Symptom:
- Intake door is not set at "FRESH" in DEF or D/F mode.





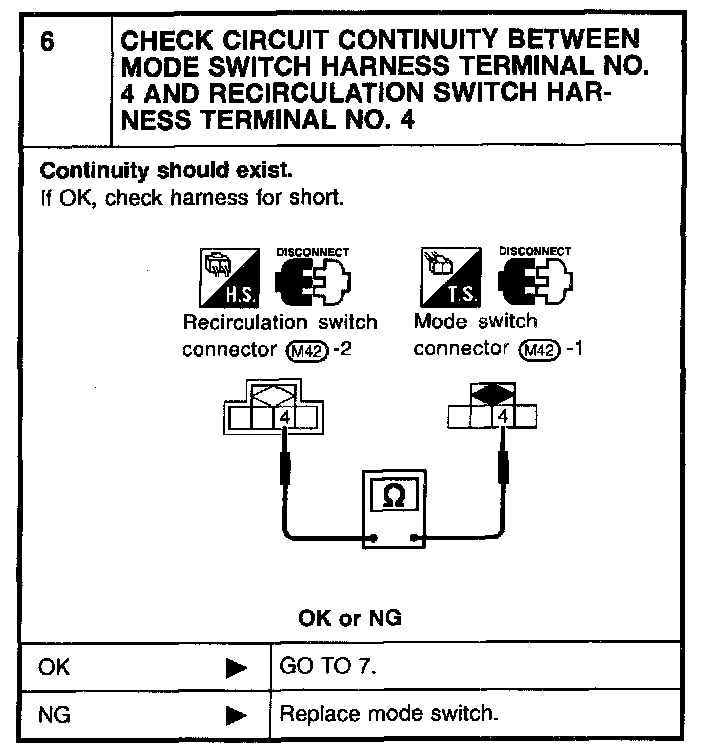

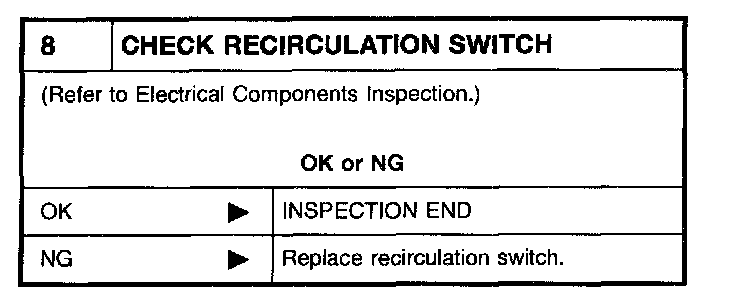

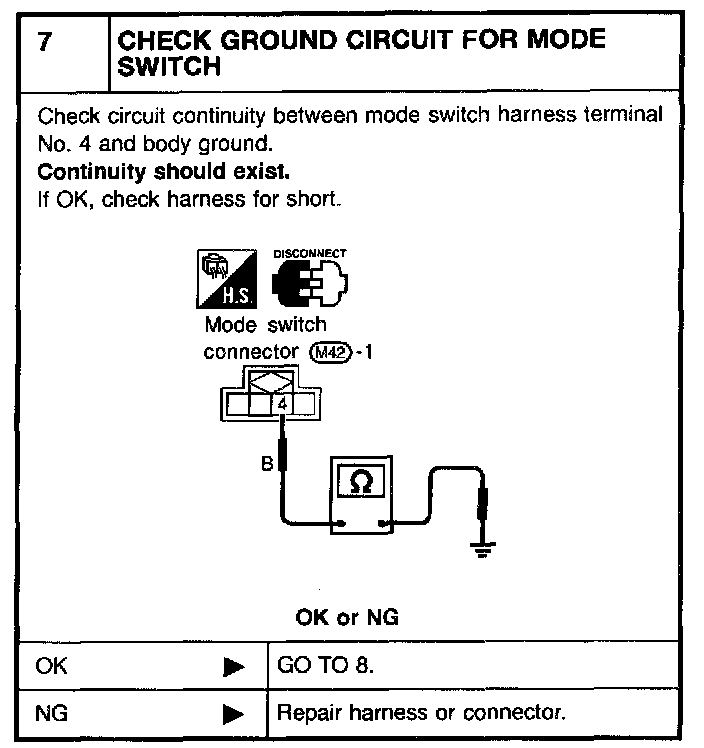

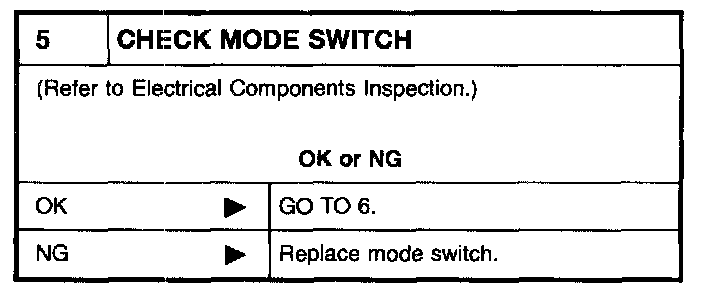

Inspection Flow

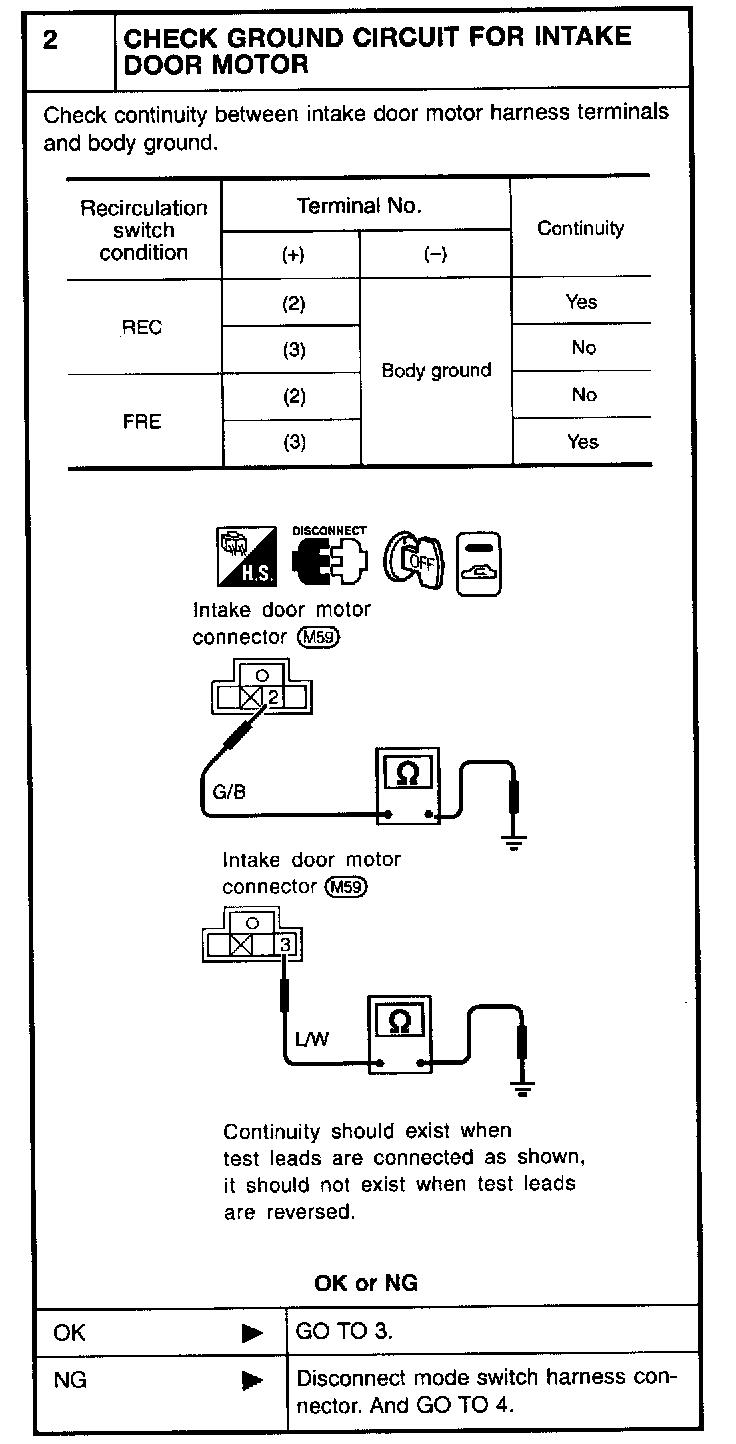

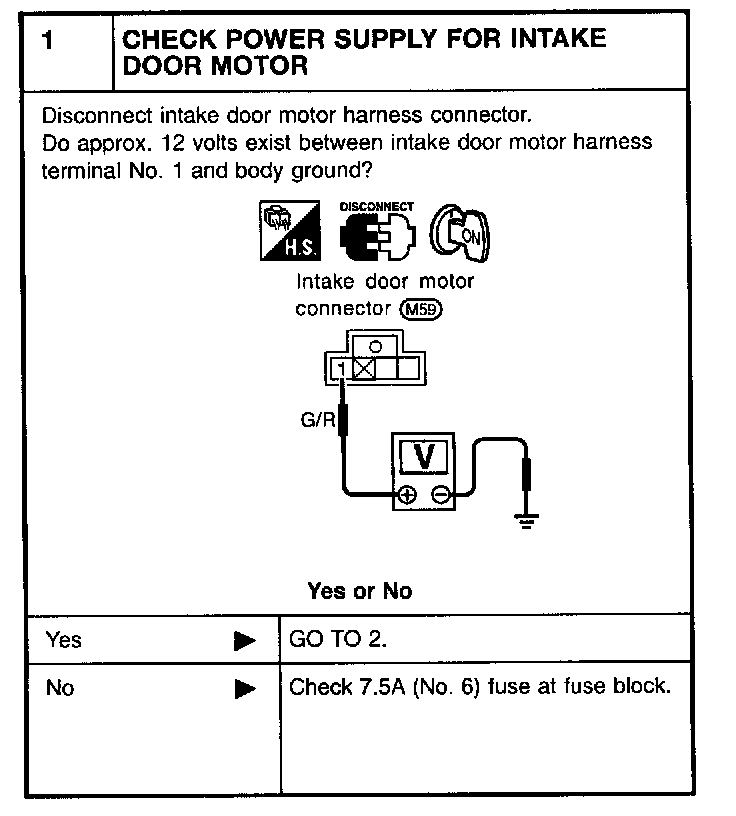

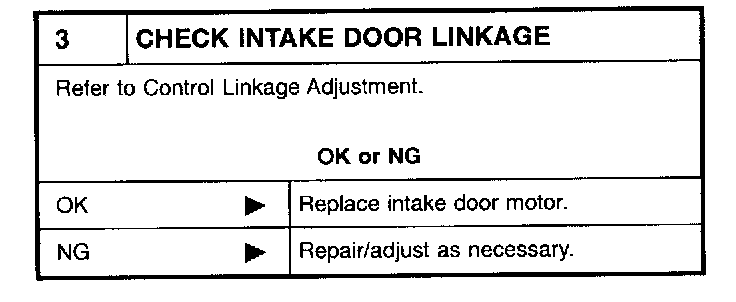

INTAKE DOOR MOTOR CIRCUIT
