Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
To VIN # 350000
>>
Auto A/C
>>
Component Tests
>>
In-Vehicle Sensor
In-Vehicle Sensor

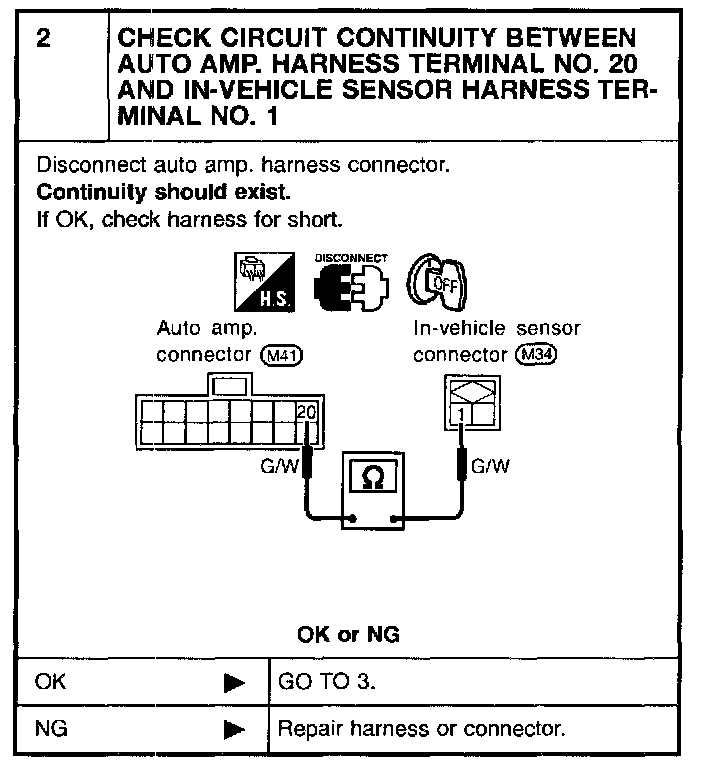

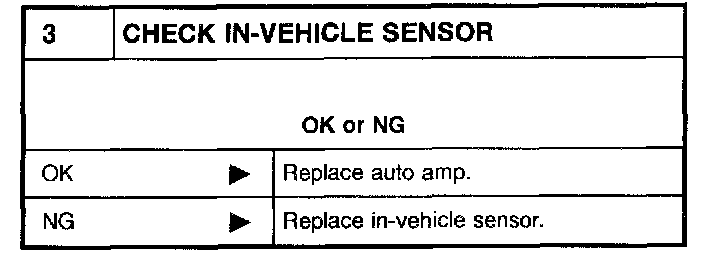

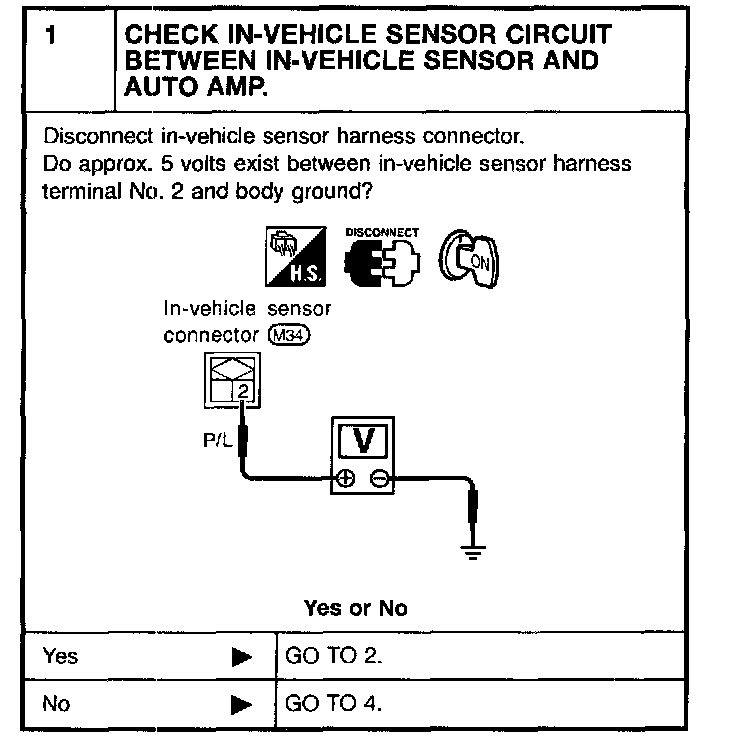

TROUBLE DIAGNOSIS PROCEDURE FOR IN-VEHICLE SENSOR CIRCUIT
Symptom:
-
In-vehicle sensor circuit is open or shorted.
