Blower Motor

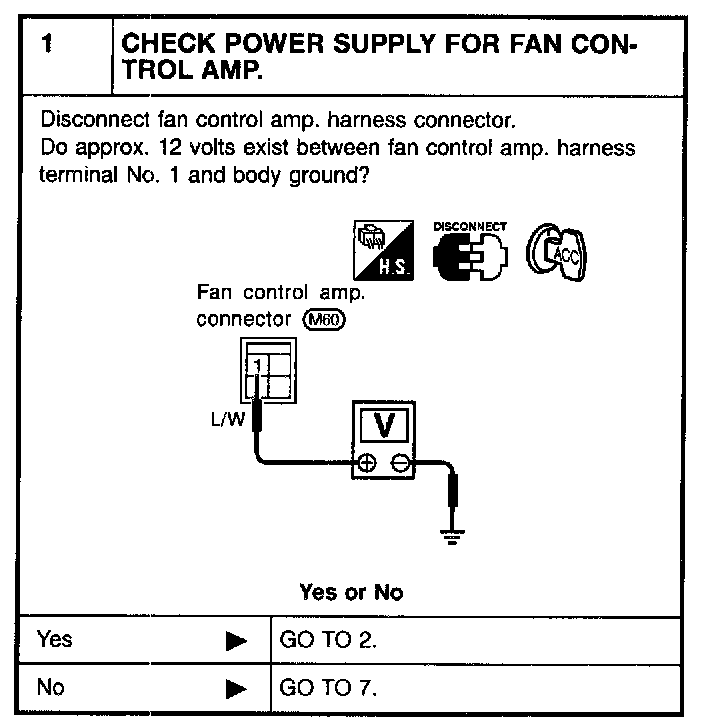

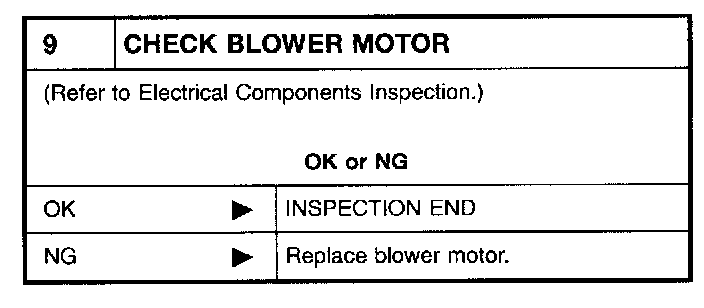

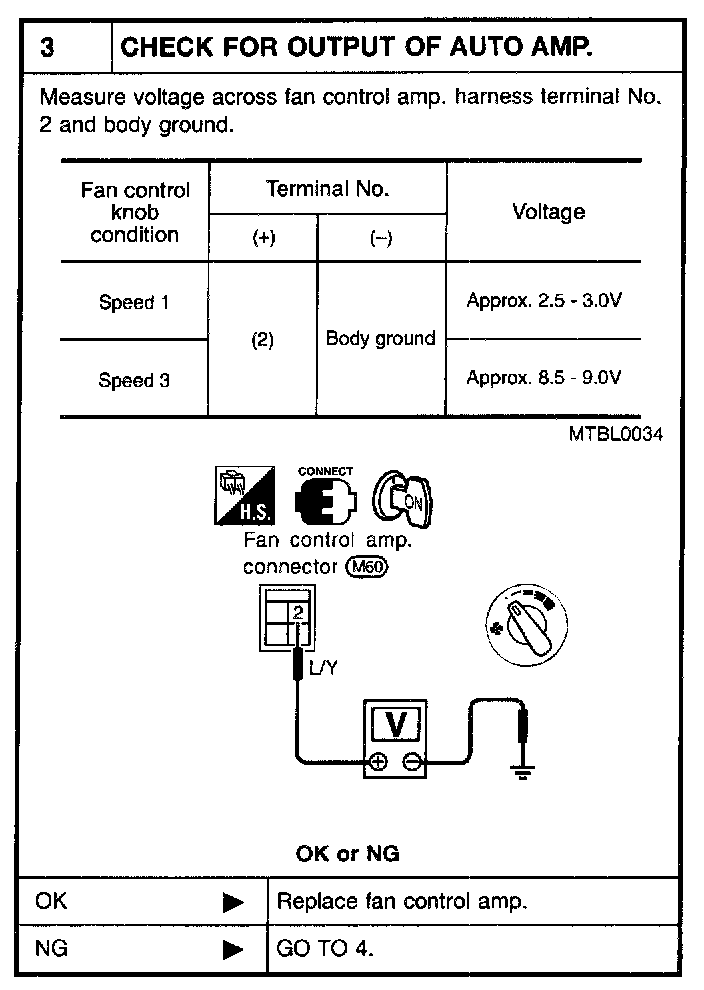

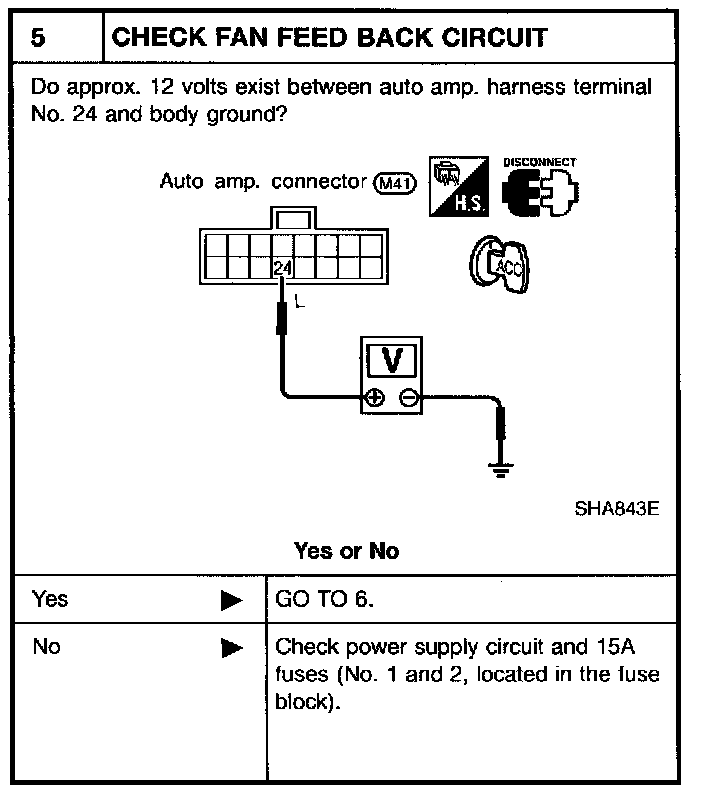

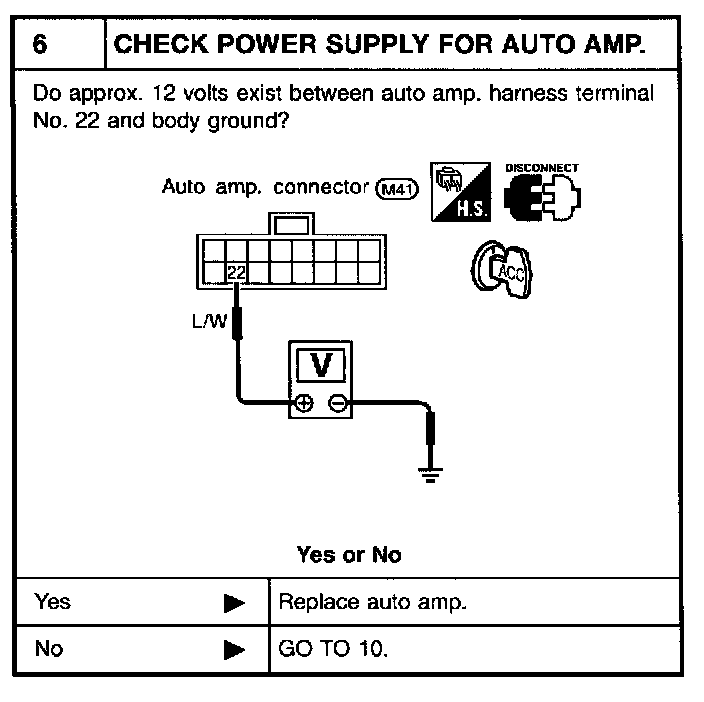

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR
Symptom:
- Blower motor does not rotate at all.
(Fan switch [AUTO] [1] [2] [3]

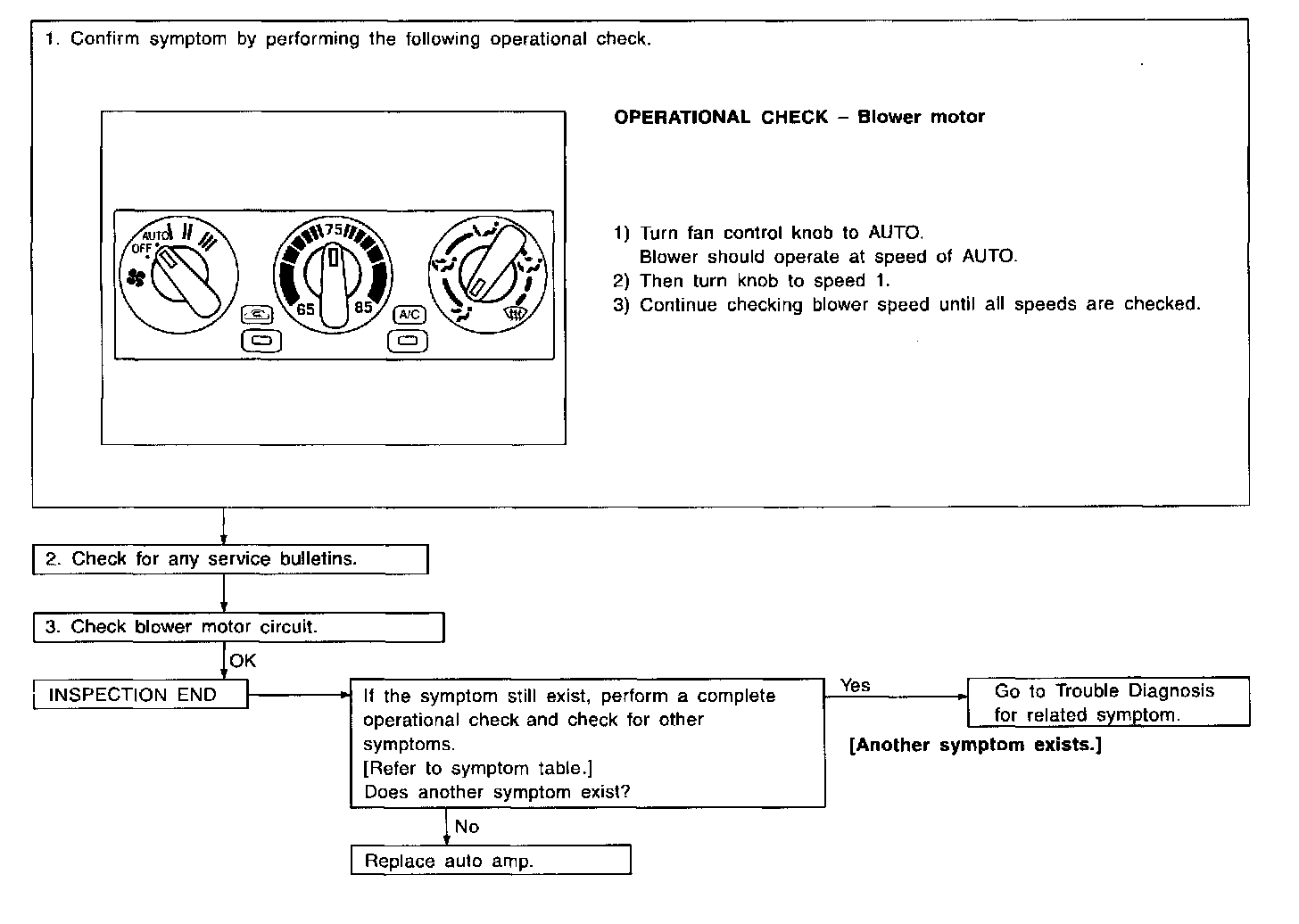

Inspection Flow

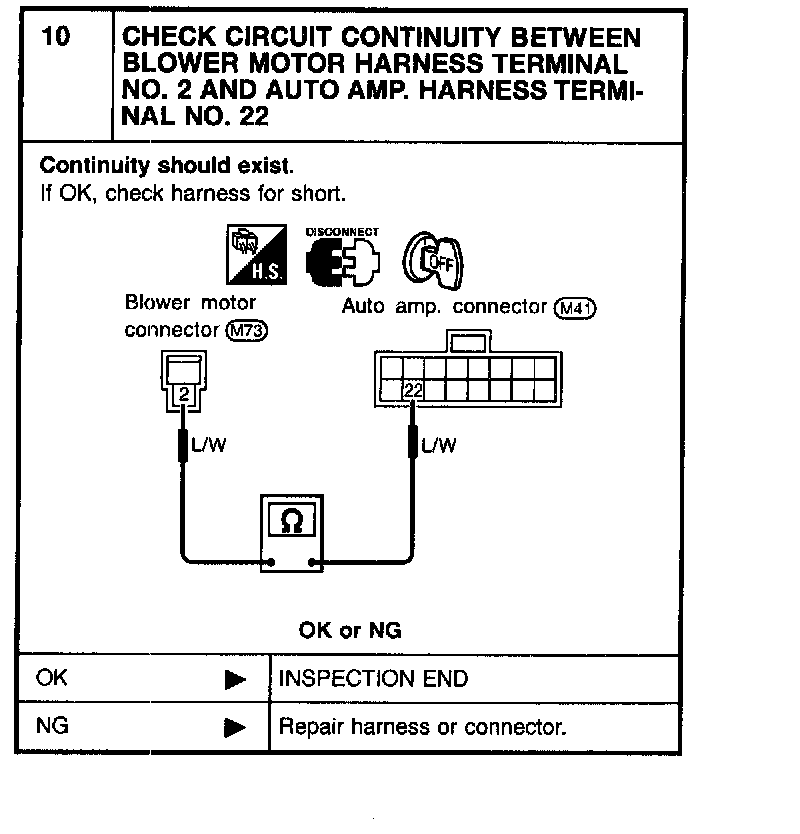

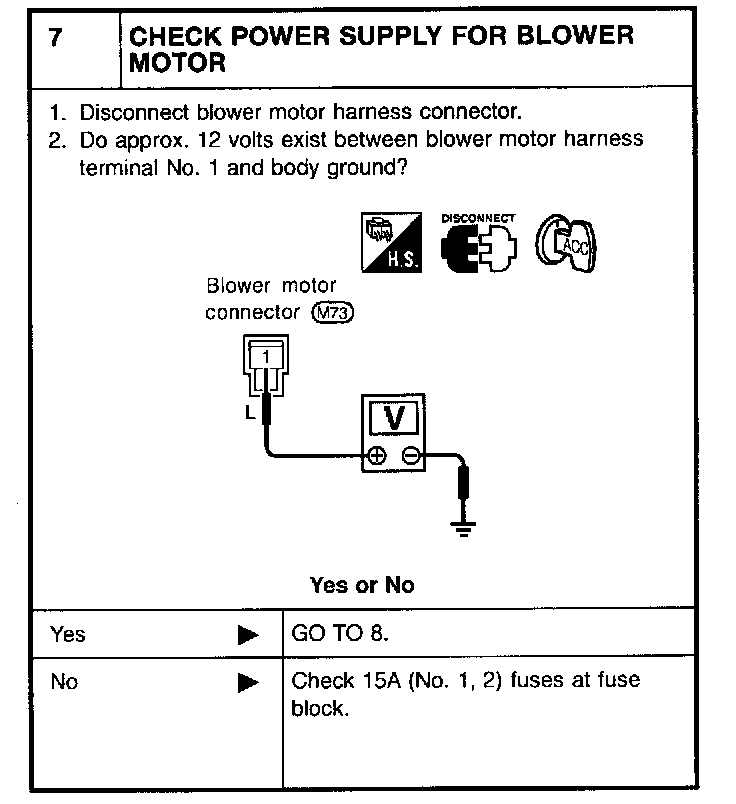

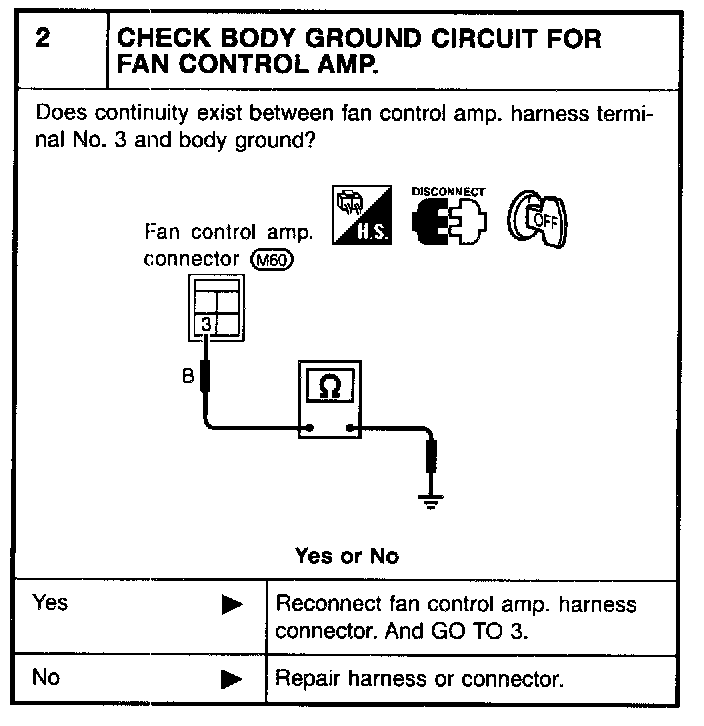

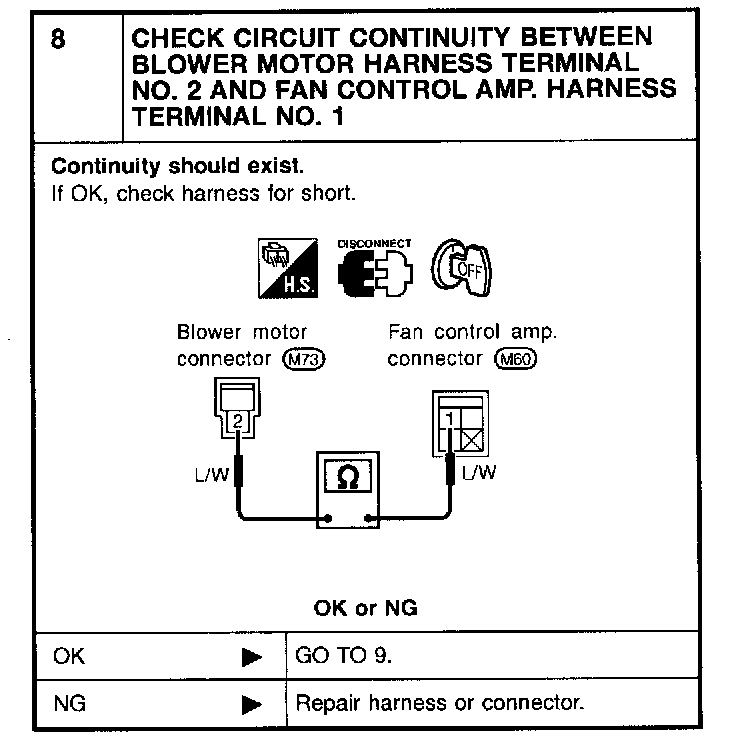

BLOWER MOTOR CIRCUIT

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR
Symptom:
- Blower motor does not rotate at all when the fan speed is in AUTO.
(It operates in 1, 2 or 3-speed only)





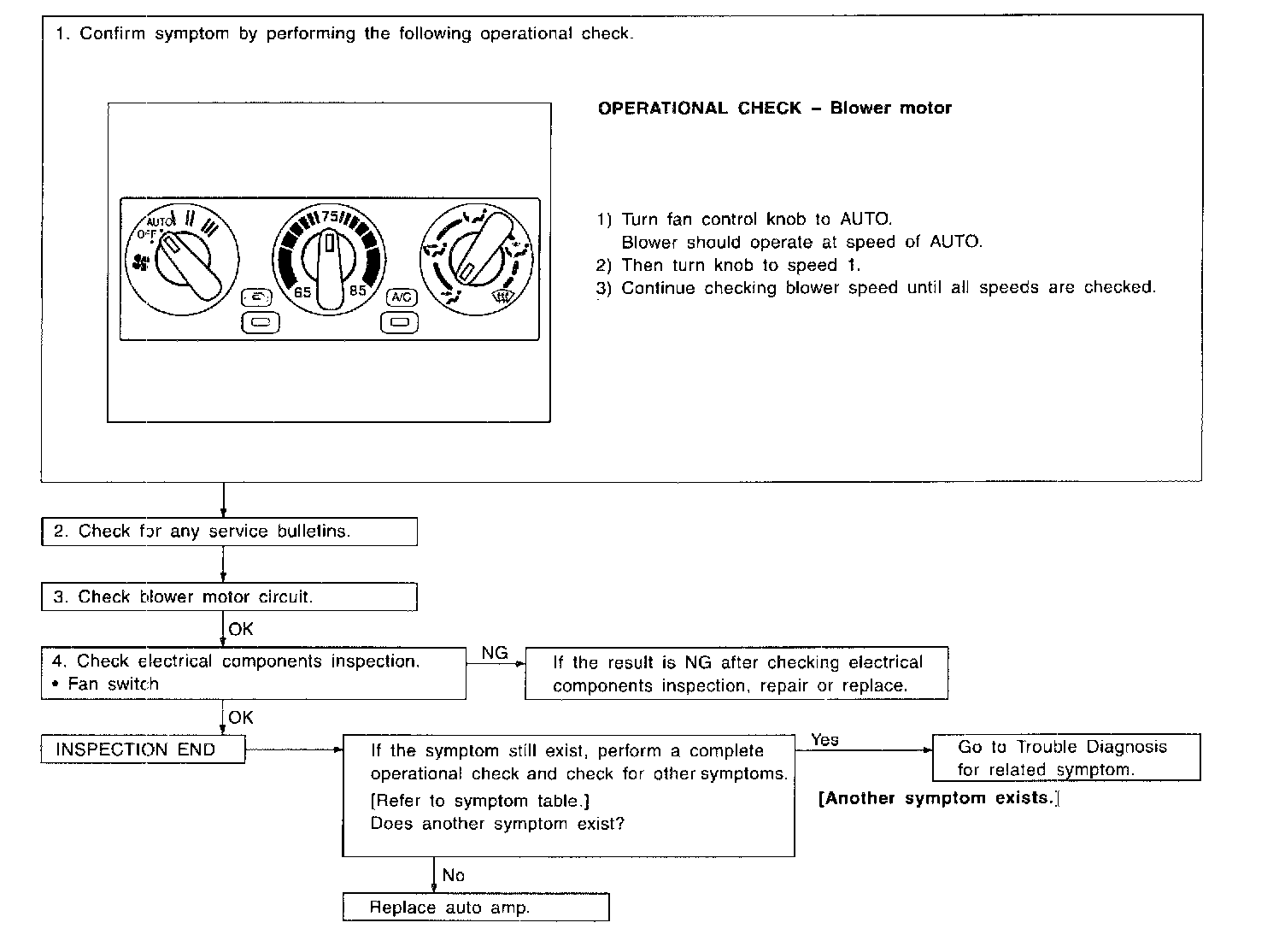

Inspection Flow

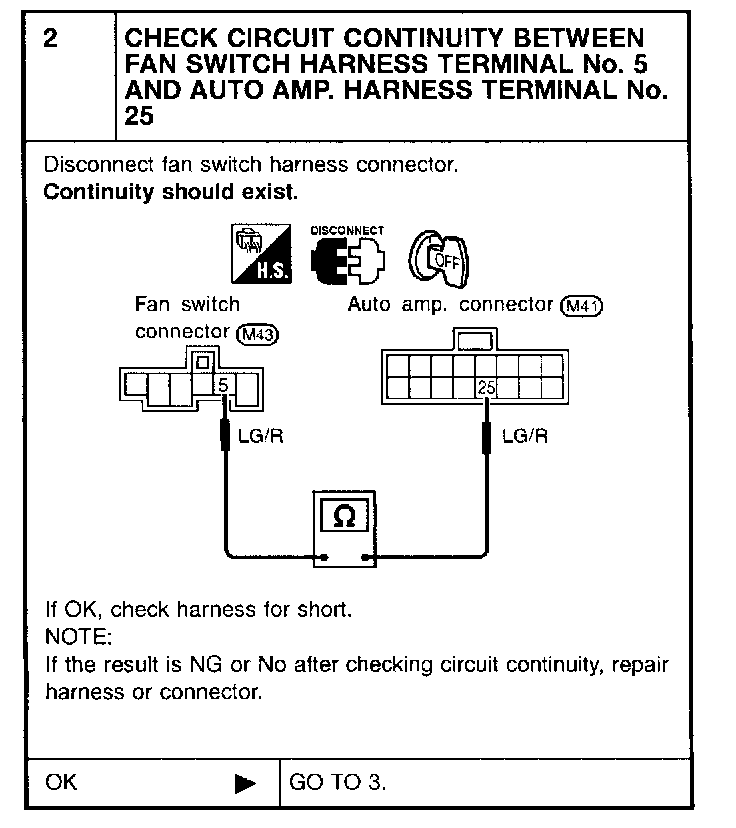

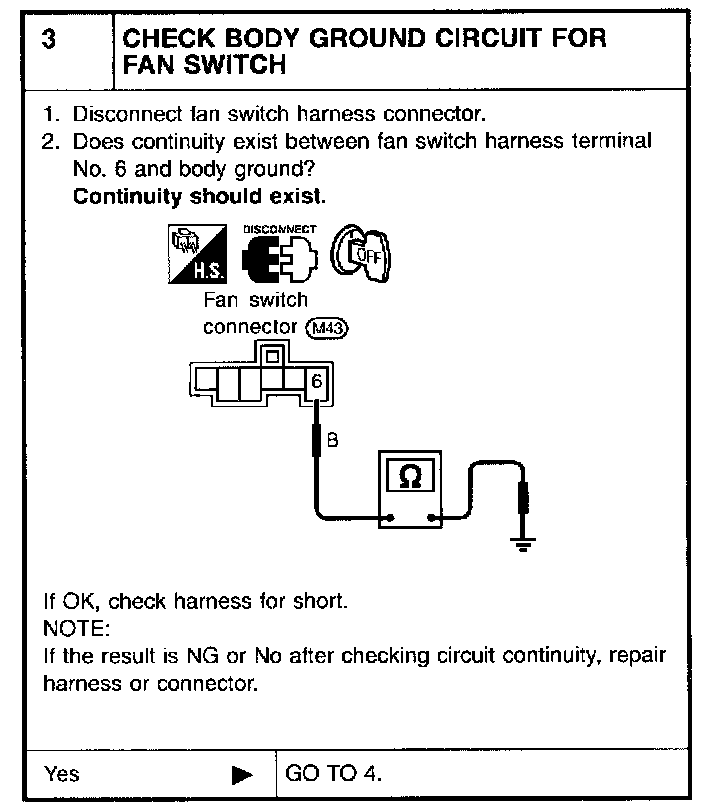

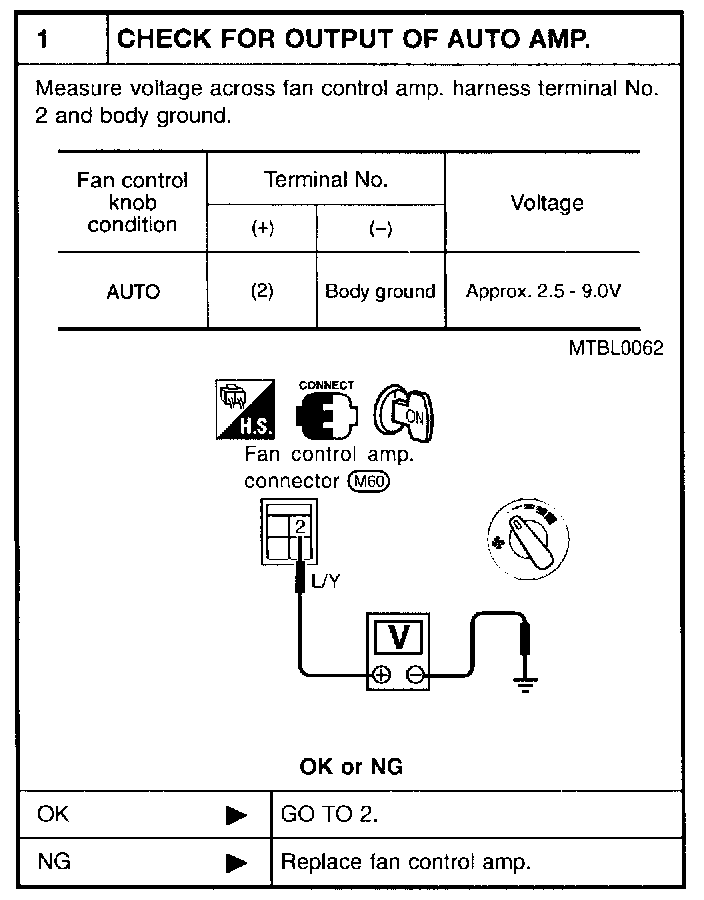

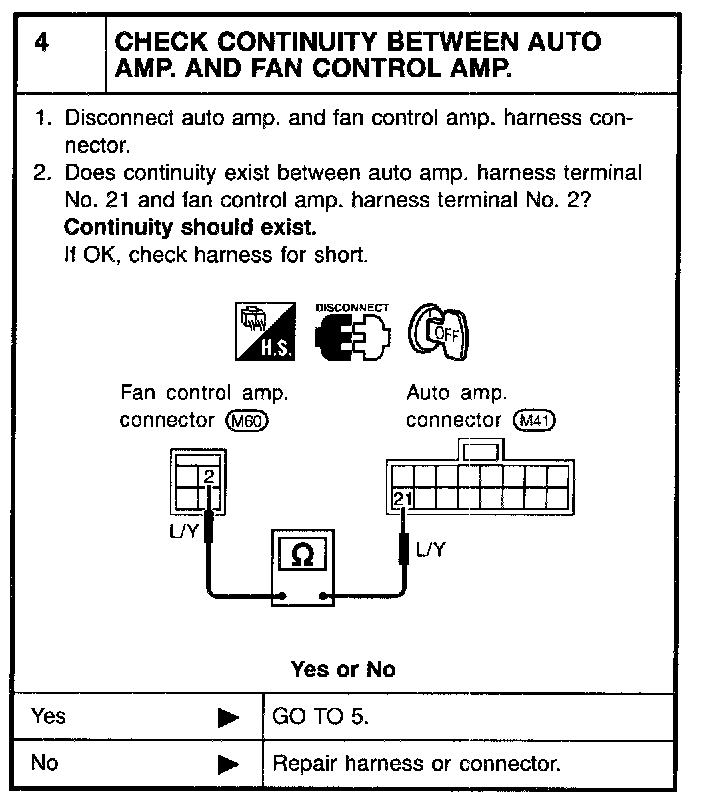

BLOWER MOTOR CIRCUIT
