Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> To VIN # 350000 >> Auto A/C >> Component Tests >> Ambient Sensor

Ambient Sensor

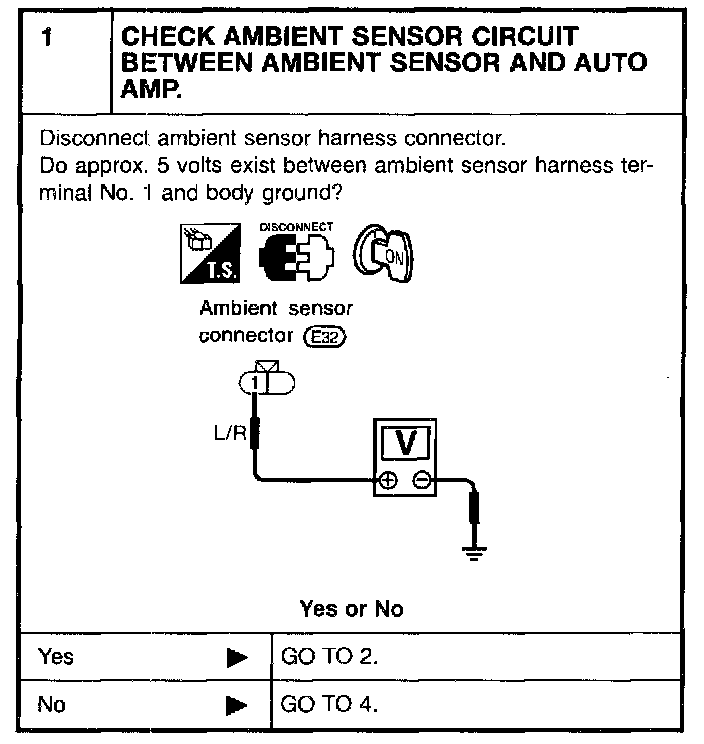

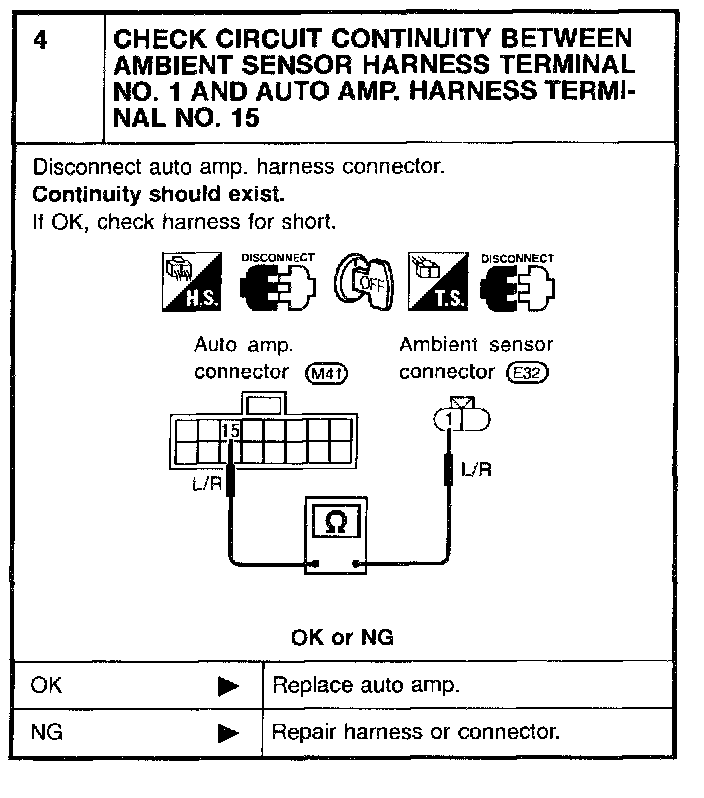

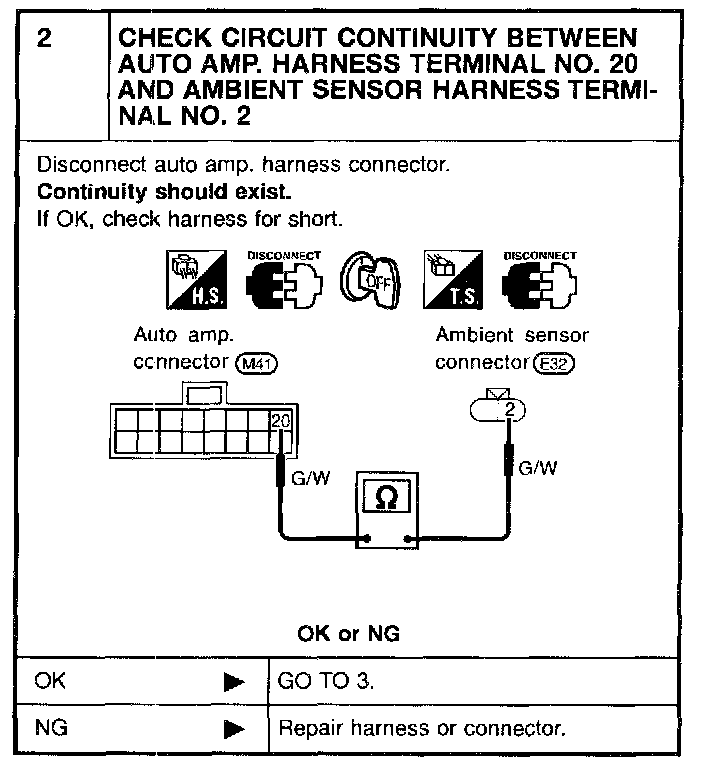

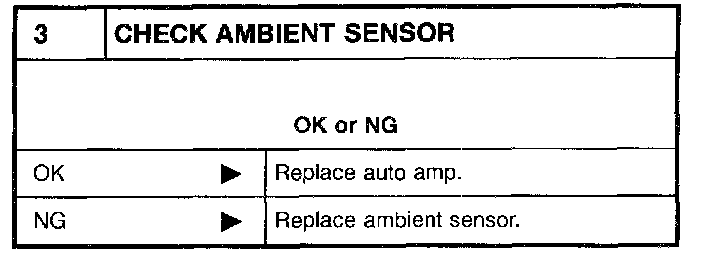

TROUBLE DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR CIRCUIT
Symptom:
- Ambient sensor circuit is open or shorted.
