Air Mix Door
Air Mix Door
TROUBLE DIAGNOSIS PROCEDURE FOR
AIR MIX DOOR MOTOR
Symptom:
-
Air mix door motor
does not operate normally.

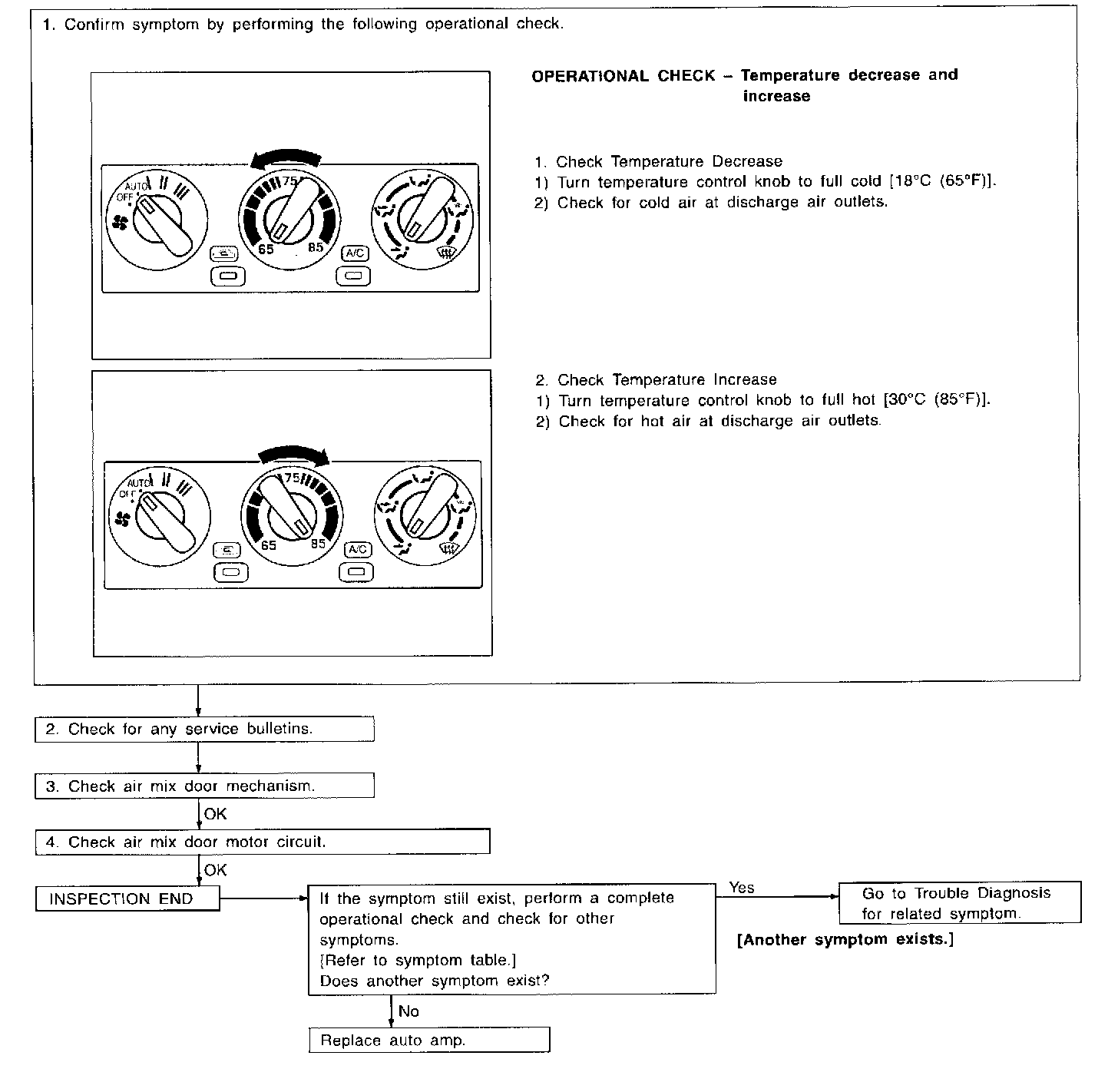

Inspection Flow
AIR MIX DOOR MOTOR
:
-
Air mix door motor
does not operate normally.
