Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
To VIN # 350000
>>
Auto A/C
>>
A/C System Test
A/C System Test
TROUBLE DIAGNOSIS PROCEDURE FOR A/C SYSTEM
Symptom:
-
A/C system does not come on.

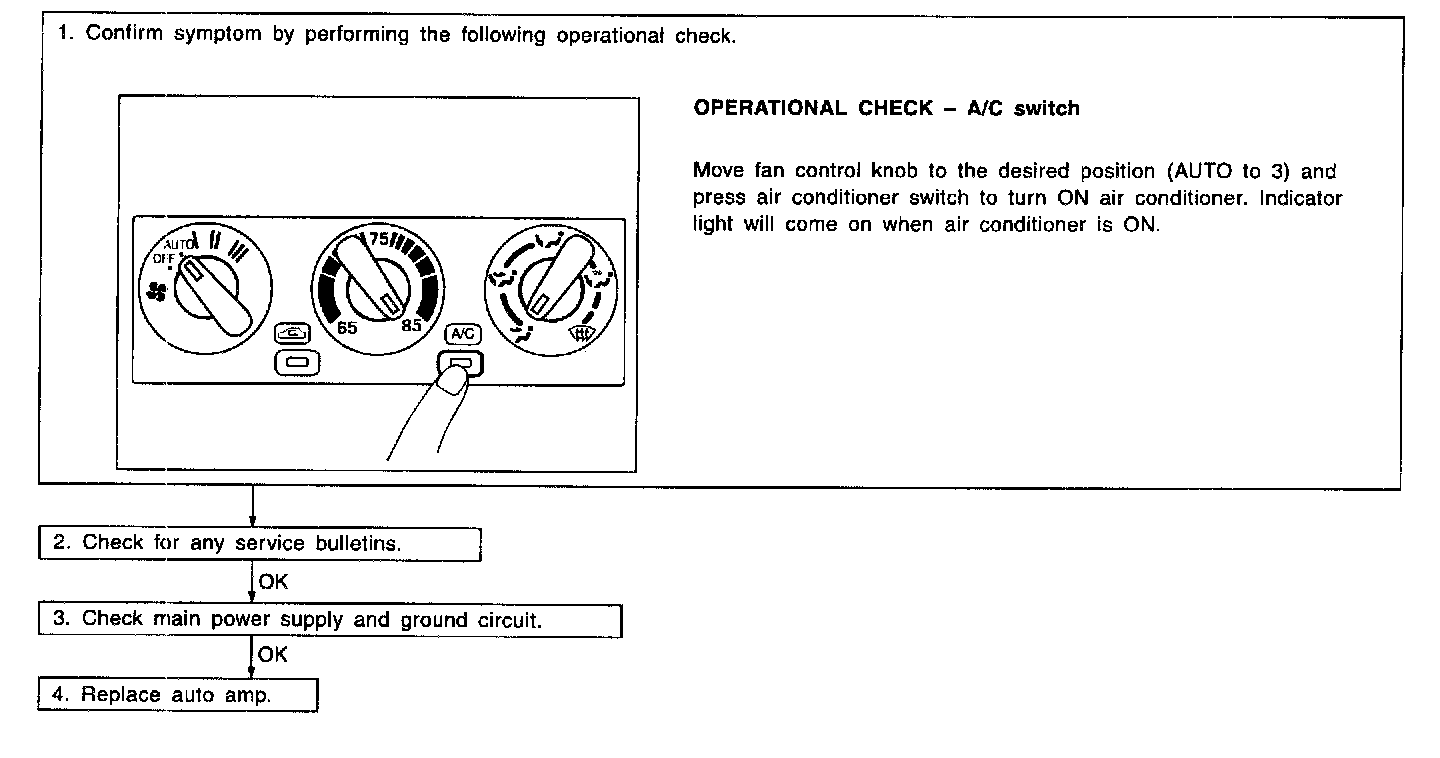

Inspection Flow
