Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
From VIN # 350001
>>
With Automatic Climate Control
>>
Trouble Diagnosis Procedure For Insufficient Heating
Trouble Diagnosis Procedure For Insufficient Heating

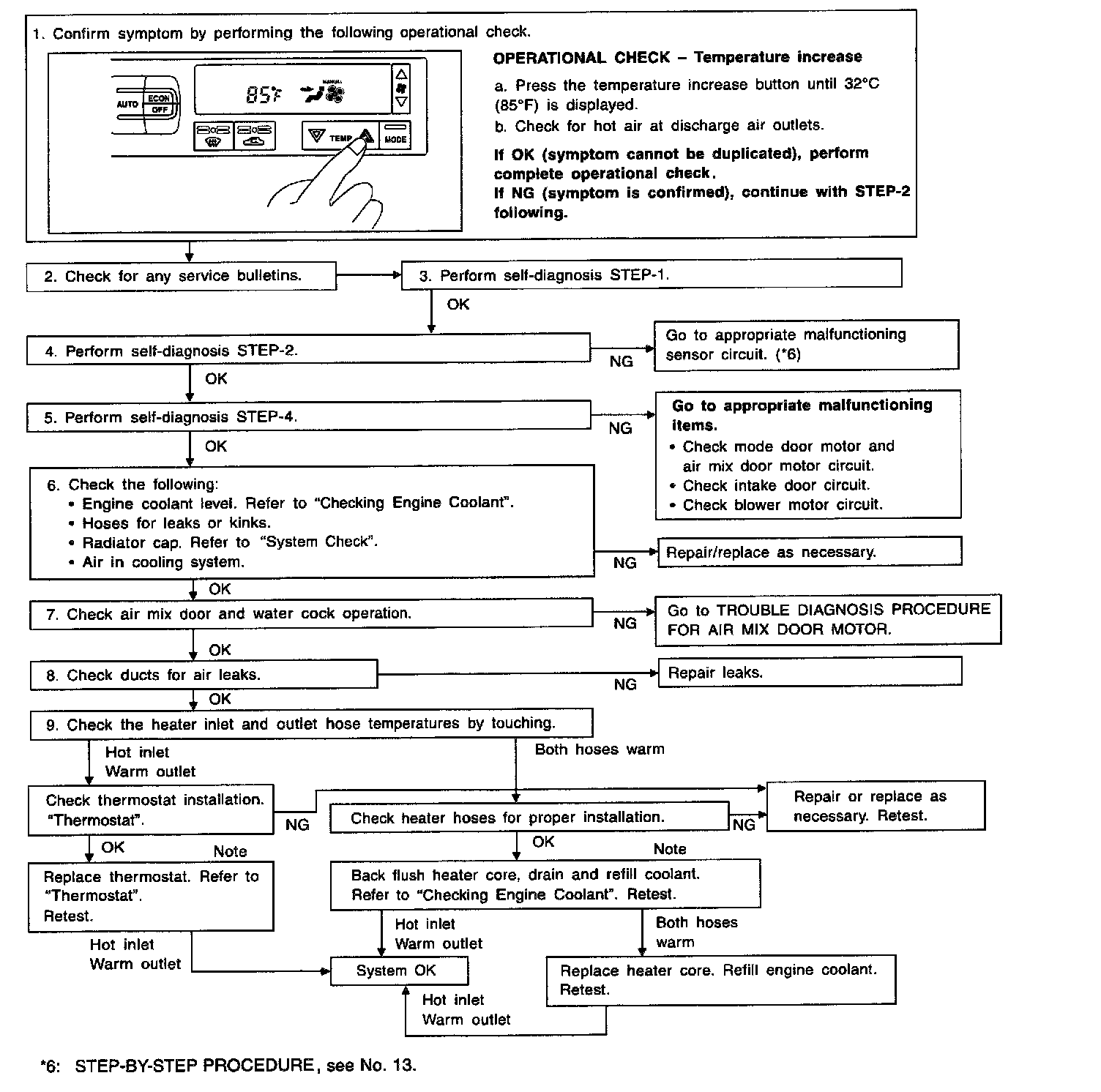

TROUBLE DIAGNOSIS PROCEDURE FOR INSUFFICIENT HEATING
Inspection Flow:
SYMPTOM:
-
Insufficient heating
