Trouble Diagnosis Procedure For Econ (Economy) Mode
Trouble Diagnosis Procedure For Econ (Economy) Mode
TROUBLE DIAGNOSIS PROCEDURE FOR ECON (ECONOMY) MODE

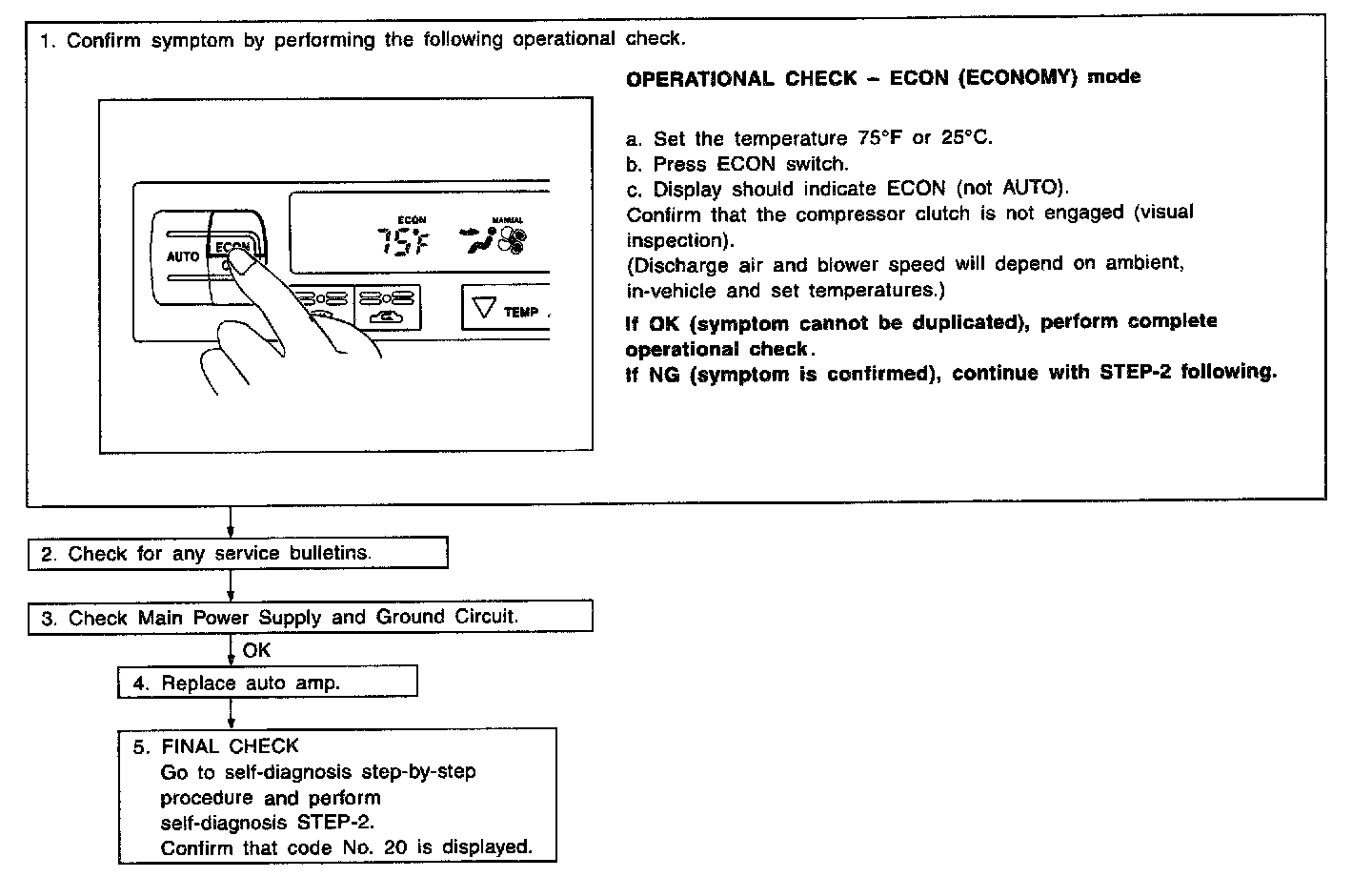

Inspection Flow:
SYMPTOM:
-
ECON mode does not operate.
