Air Mix Door

Component Parts

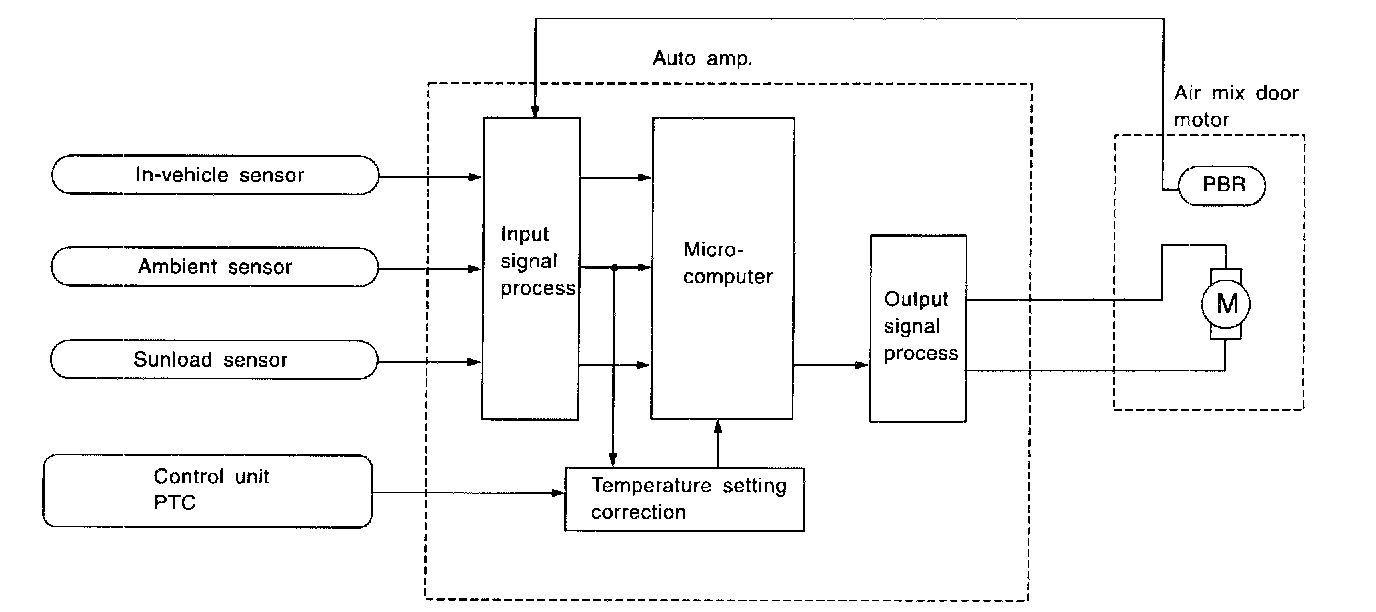

Air mix door control system components are:
1. Auto amp.
2. Air mix door motor (PBR)
3. In-vehicle sensor
4. Ambient sensor
5. Sunload sensor





System Operation
Temperature set by Potentio Temperature Control (PTC) is compensated through setting temperature correction circuit to determine target temperature.
Auto amp. will operate air mix door motor to set air conditioning system in HOT or COLD position, depending upon relationship between conditions (target temperature, sunload, in-vehicle temperature and ambient temperature) and conditions (air mix door position and compressor operation).

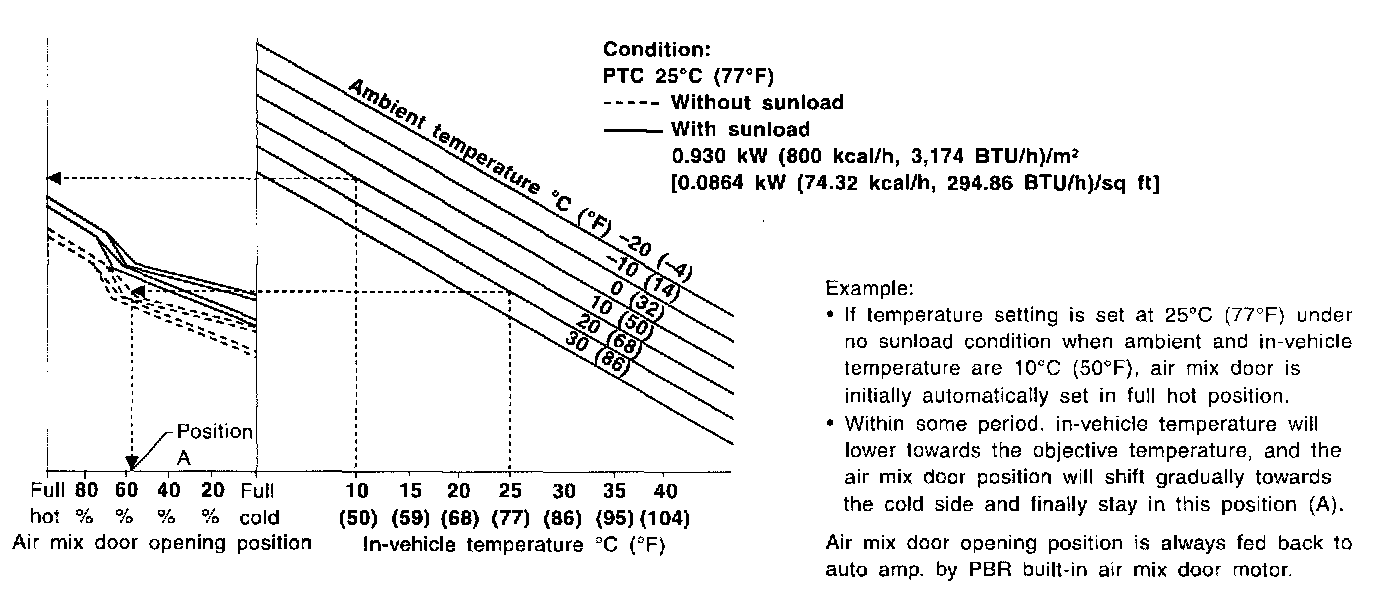

Air Mix Door Control Specification
